Model NO.
DQL-4518G + BSE-4520L
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
20.0 set / Month
Country of Origin:
Ningbo
Quantity:

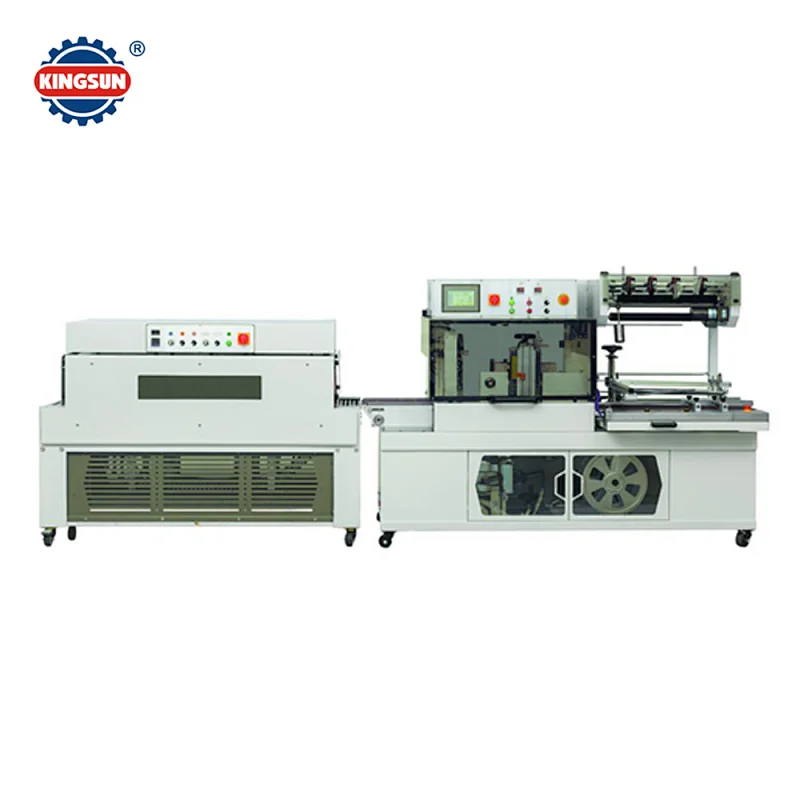

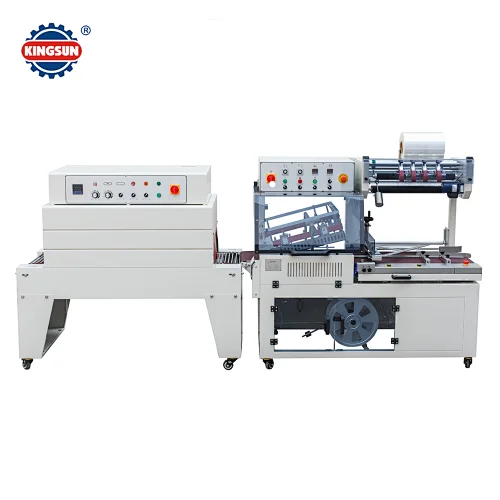

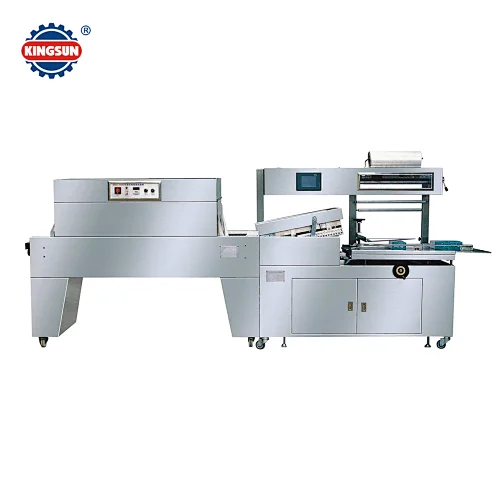

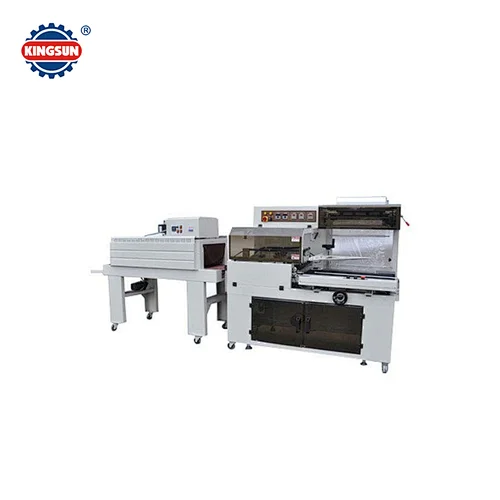

DQL-4518G Automatic side sealing machine + BSE-4520L shrink tunnel machine

Product Description

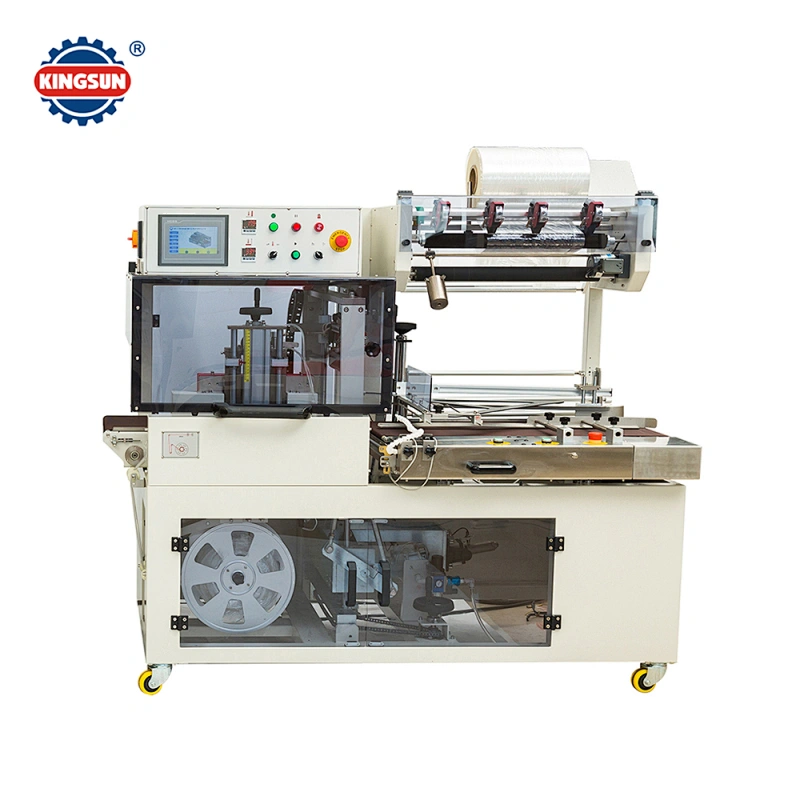

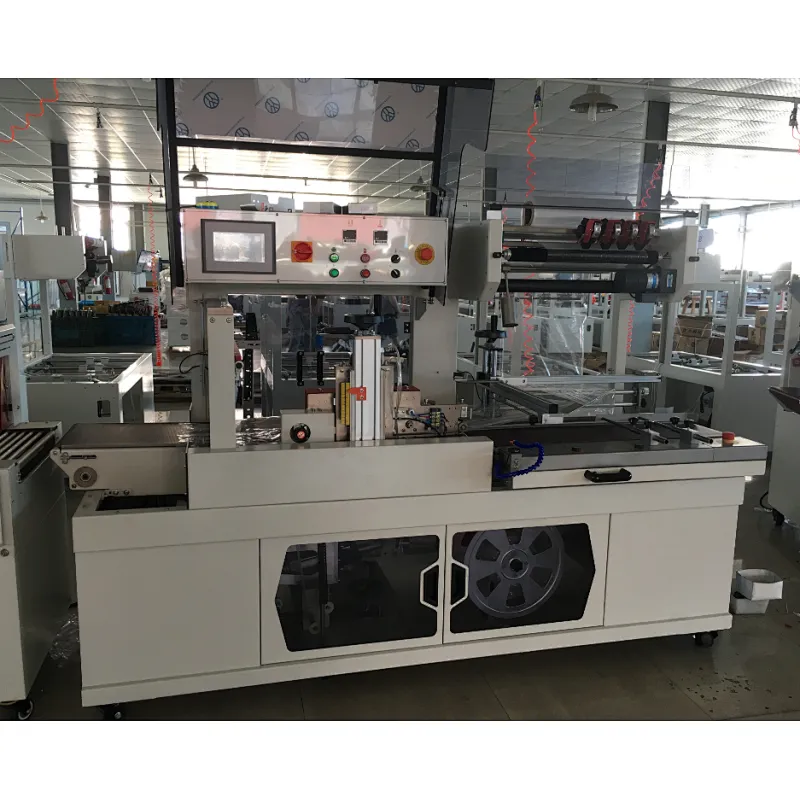

DQL4518G automatic side sealing machine characteristic:

1. QL4518G is the automatic side sealing machine which developed by ourselves, it is used to high capacity packing production line, feeding, conveying, entering bag, sealing can be finished at a time, it has high working efficiency.

2. Vertical sealing adopts high quality supporting structure and two sides linear guideway to make sealing pressure balanced, frame won’t be damaged easily. . The sealing knife adopts copper alloy sprayed with teflon, it won't stick film, sealing fastness, without smoke, non-pollution

3. Side sealing adopts constant temperature sealing knife, sealing part is straight and strong, there is no limited about packing object length. Film feeding belt adopts widen and thicken belt, its using life is long and easily to be replaced.

4. Machine adopt “Omrom” PLC controller,

5. it is equiped with “Panasonic” photo sensor to reach high speed and automatic working.

6.“Omron” temperature controller ensure sealing temperature error and “Omron” delay control sealing time accurate

7.International advanced perforating device design ensure stable working

8.“Airtach” air filter to ensure enough air source for machine

9.It equiped with touch screen is easier to change the size

10.it has protection function to avoid sealing product wrong and ensure the safety of operator

11.Nice design of the cylinder which will adjust the open distance of the two sealing bar.

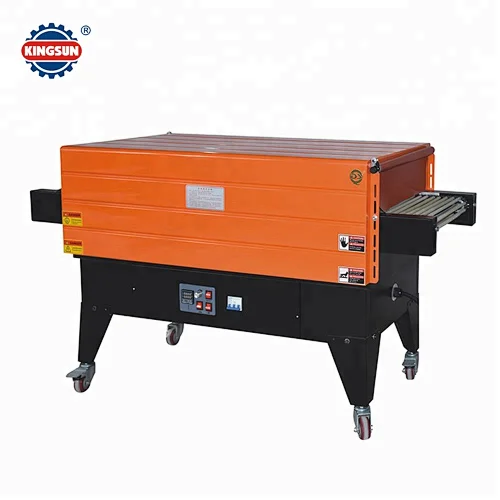

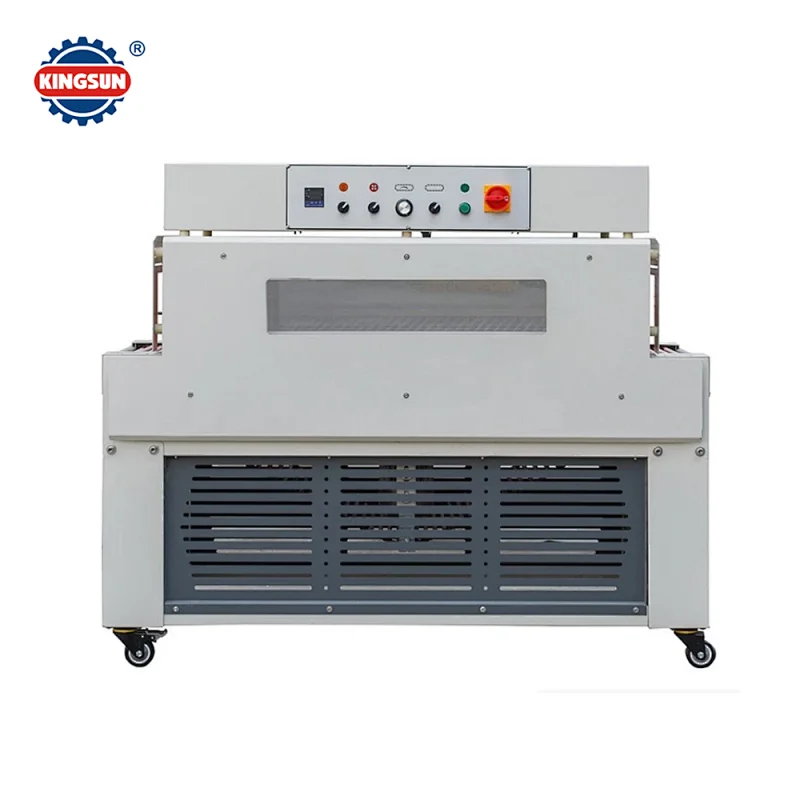

BSE4520L shrink tunnel characteristic:

1. Solid roller rotate with conveying chain, at the same time solid roller rotate by itself, down side sealing effect of object won’t affect by roller, each side sealing effect is firm.

2. It adopts high-power fan motor to ensure enough strong wind to reach perfect packing effect.

JSCC conveyor motor

It adopts spiral type heating element to ensure enough heating and long life

Complete machine with heating resistant cover

Inspection window can inspect product shrink situation and adjusting easier

Application:

This machine is widely used in photo frame, aluminum profile, water pipe, wood floor, and other industries shrink packaging. It is suit POF, PVC and other packaging material.

Specification:

Model

DQL4518G

BSE-4520L

Max packing size(mm)

L ∞,W+2H≤450,H≤150

L2000*W450*H200

Max sealing size(mm)

W450

/

Power(KW)

1.40

11.7

Capacity

0-35 pcs/min

0-12 m/min

Voltage

220V 50/60HZ

380V 50HZ/60HZ

Sealing temperature

180℃—250℃ depends on thickness of film and environment temperature

/

Thickness of film(mm)

0.015-0.10

Air pressure(Kg/cm2))

5

Packing material

POF PVC

Machine weight(kg)

340

260

Machine size(mm)

L1700*W1000*H1500

External L2000*W750*H1500

tunnel(L1500*W450*H200)
