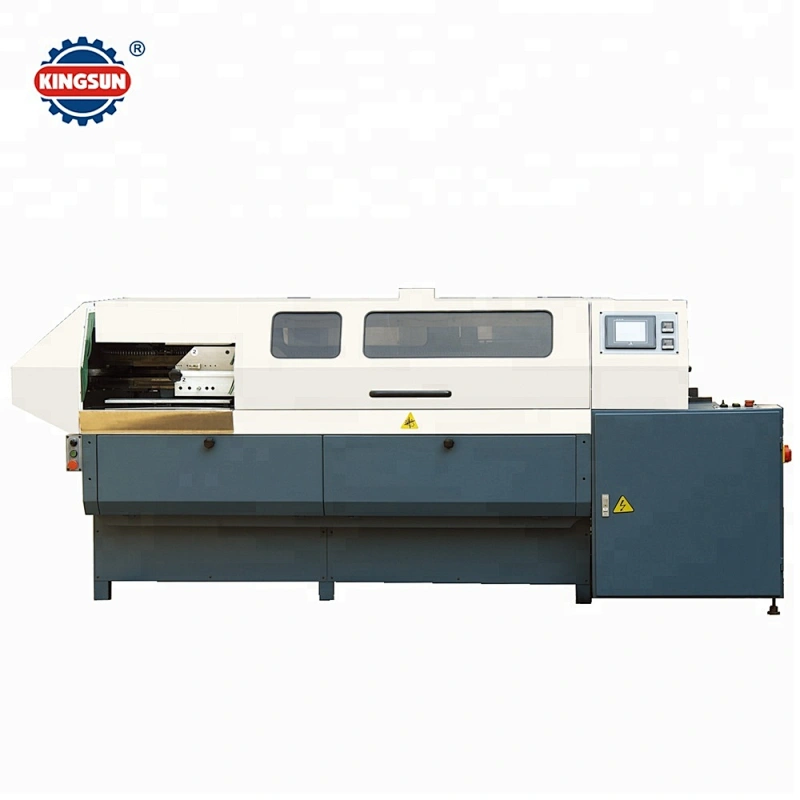

Book Binding Machine JBT 4D
Book Binding Machine JBT 4D
Book Binding Machine JBT 4D

Book Binding Machine JBT 4D

Model NO.
JBT-4D
Quantity:

Features:

Automatic cover feeding, frequency transformer for speed control, PLC program control, PID temperature control, photoelectric identification control and automatic faults detection and control, etc. With automatic glue removal device for the front and the back of books, with advanced lead rail type clamping table which ensures a stable clamping table, and oblique gear ensures a quality side gluing, it is the ideal book binding equipment for the large or medium sized printing house.

Main specifications

Model

JBT50/3D

JBT/50-4D

JBT/50-5D

Binding size

Max. 450 x 270mm

Min. 160 x 120mm

Min. 160 x 120mm

Binding thickness

3-50mm

3-50mm

3-50mm

Binding speed

1800pcs/h

2000pcs/h

2000pcs/h

Total power

13kw

15kw

18kw

Overall dimensions

2700 x 1340 x 1260mm

3100 x 1340 x 1260mm

4000 x 1700 x 1640mm

Weight

1500kg

1800kg

2000kg
