SFML Series Semi-automatic Thermal Film Laminating Machine

SFML Series Semi-automatic Thermal Film Laminating Machine

Model NO.: SFML

Quantity:

Product Description
Application Description

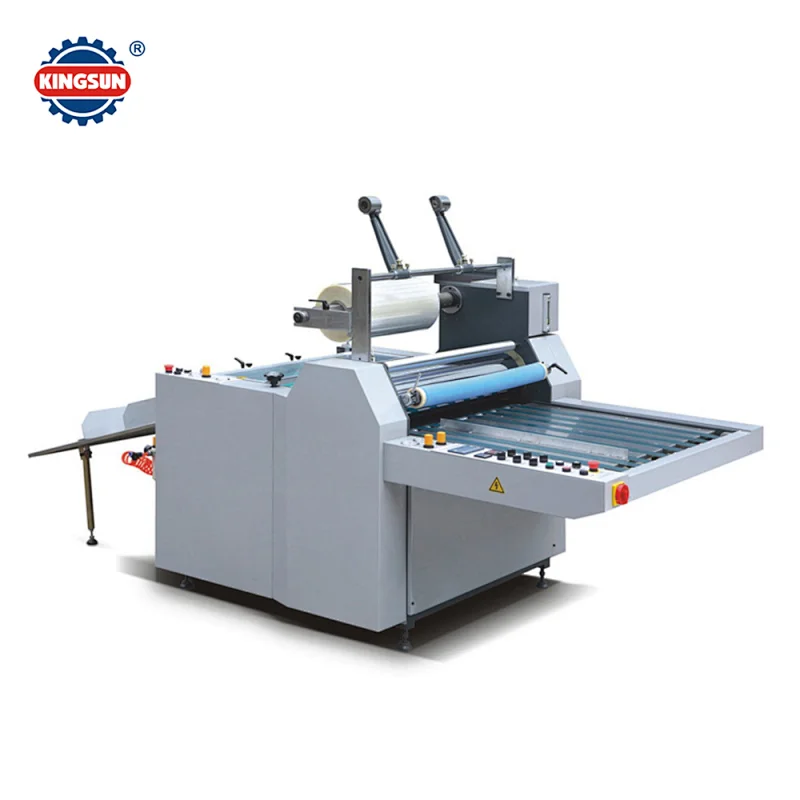

SFML Series Semi-automatic Thermal Film Laminating Machine

This is semi-automatic type thermal film laminator. With the features of manual feeding, thermal lamination, and auto cutting system, which can get the finished lamination goods after one process.

Features:

1.Operating smoothly by using imported frequency converter.
2.Concentrated electric control, operating by just one person.
3.Equipping with divisional-cutting device , it can be cut automatically after laminating.
4.Adopting the auto oil pressing supply system so it can be auto rising and dropping.
5.The paper will be smooth output with the anti-curved device.
6.Half-cutting and holing fuctions.

Main Specifications:

Model	SFML-720	SFML-920	SFML-1050
Max.Paper	620×880mm	880×1040mm	1100×1040mm
Temperature	60-130	60-130	60-130
Paper Thickness	80-500g/m²	80-500g/m²	80-500g/m²
Max.Laminating Speed	0∼30m/min	0∼30m/min	0∼30m/min
Main Power	13KW	155KW	16KW
Total Weight	700kg	900kg	1100kg
Dimensions	3850×1550×1650mm	3980×1750×1650mm	3980×1950×1650mm
