Model NO.
KYJZD
Price:
USD 190000.00-390000.00 / set
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
15 set / Month
Country of Origin:
Ningbo or shanghai
Quantity:
  • Type:Rotogravure Printing Machine
  • Place of Origin:CN;ZHE
  • Weight:38 tons
  • Usage:Paper Printer
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Model Number:KYJZD
  • Brand Name:Kingsun
  • Warranty:1 year
  • Color & Page:MULTICOLOR
  • Condition:New
  • Gross Power:332KW
  • Dimensions(L*W*H):19600X4300X3210mm
  • Voltage:380V or customer's choice
  • Automatic Grade:Automatic
  • Certification:CE, ISO
  • Usage:film printing
  • machine color:customer choice

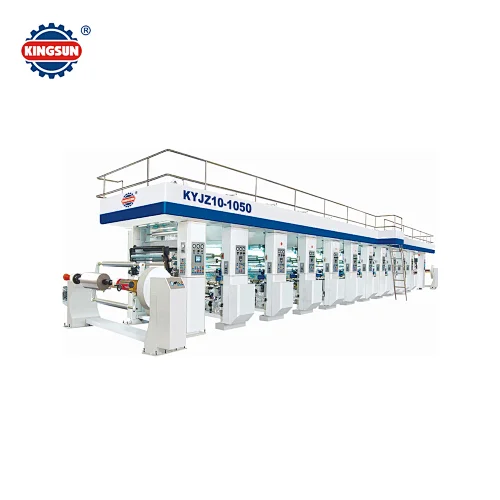

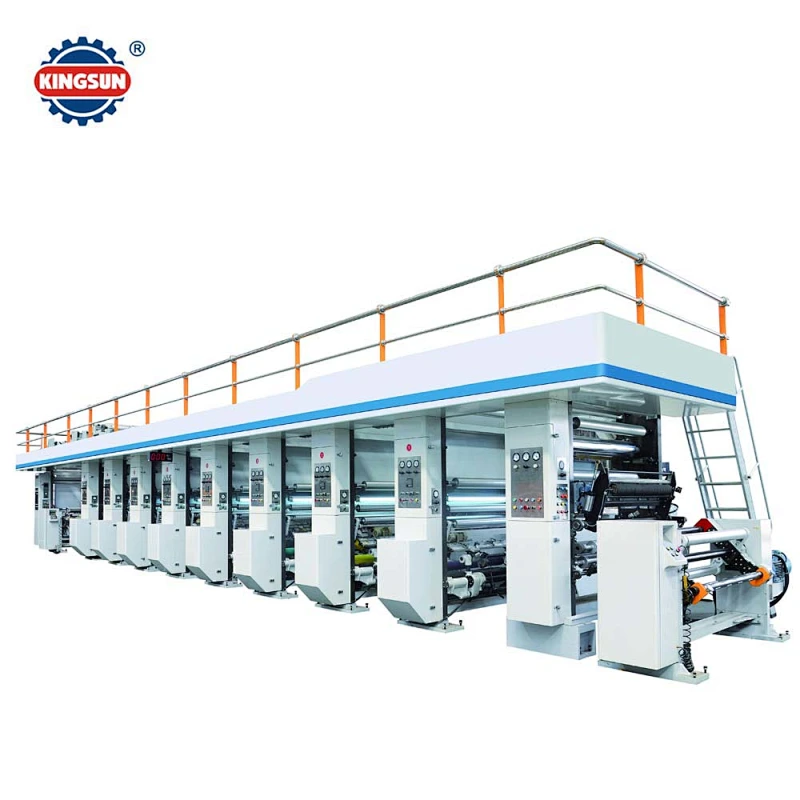

China best super speed high grade 8 color plastic bag rotogravure printing machine for sale

This is computer control high speed 8 color rotogravure printing machine for flexible packaging converting, such as roll laminated film, plastic bag, paper etc. Main electric parts all Japan or Europe imported so can guarantee the printing equipment with high precision and reliable in function.We can special made all sizes, welcome to contact Kingsun for more details.

Main technical parameters:

Printing sequence: From left to right

Printing number: 8 colors

Max. material width: 850mm(1050,1250mm)

Max. printing width: 850mm

Max. mechanical speed: 270m/min

Max. printing speed: 250m/min (Cylinder φ170mm)

Unwind dia: Φ600mm

Rewind dia: Φ600mm

Paper core: Φ76mm*Φ92mm

Min. change material effective dia: Φ200mm

Unwind and rewind structure: Double arms double directions double shafts turret installed outsidetype

Machine body wall thickness: 75mm(Heavy duty)

Machine body wall width: 500mm

Color group distance 1600mm

Plate cylinder width: 460mm-950mm

Plate cylinder diameter: Φ120-Φ300

Overprinting accuracy: ±0.1mm (Longitudinal and transverse)

Pre-register accuracy: ±8mm

Tension control range: ±0.3kg/ full web width

Max. impression pressure: 500kg/full web width

Splicing method: automatic non-wastage splicing without stopping machine

Inking form: Circulation inking system

Ink transmission: Ink transfer roller

Doctor blade transverse movement: ±5mm

Drying method: electricity heating

Temperature control accuracy: ±1

Total Power:332KW

Electricity Power: 380v, ±10%, 50Hz three phase

Air source Minimum pressure: 0.7Mpa

Cooling water consumption: <7.68t/hour (full load print)

Roller driven motor: B&R servo motor 5.677KW

Size of overall machine: 19600L*4300W*3210H(mm)

Machine weight: Approx 38T

Machine color: Milky white

Printing material:

BOPP /OPP /CPP/BOPA 15-60µm

PET 12-60 µm

NY 15-25µm

Cellophane 20-30µm

PE 30-60µm

Paper sheet: 30-80g/m2

Compound film: 15-60µm

Other same proper film, paper, Al foil material etc.
