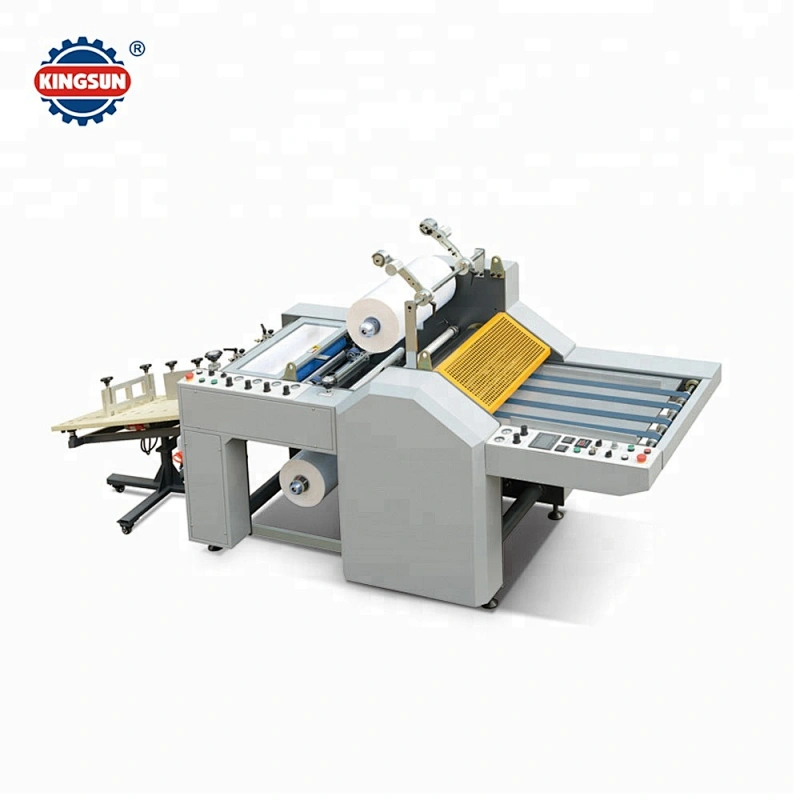

KFM-520 Two Sides Film Automatic Thermal Laminating Machines
Features:
- Able to do single or double side lamination.
- Man- machine interface system: color touch screen, easy for operation; it realizes automatic operation after directly data input for paper size, overlap length and working speed, working status can be tracked via the screen.
- Schneider frequency converter, speed variable
- The upper & the lower heating rollers with casted aluminum heater, independent temperature control, which ensures the temperature constantly and makes it precise for the double lamination.
- Pneumatic pressure system ensures a stable pressure; it can be adjusted upon requests.
- The anti-curve device can be adjusted by the turbine gearbox, the laminated paper can be leveled and it does not curve after cutting.
- Pneumatic sheet cutting system able to have sheet laminated paper.
- The receiving table equipped for the sheet laminated paper.
Technical specifications
Model | KFM-520 |
Max. paper size | 520mm |
Min. paper size | 290 x 290mm |
Working speed | 25m/min (single); 10m/min (double) |
Paper thickness | 100-500g/m2 |
Total power | 15kw |
Dimensions | 3300 x 1150 x 1400mm |
Machine weight | 1000kgs |
