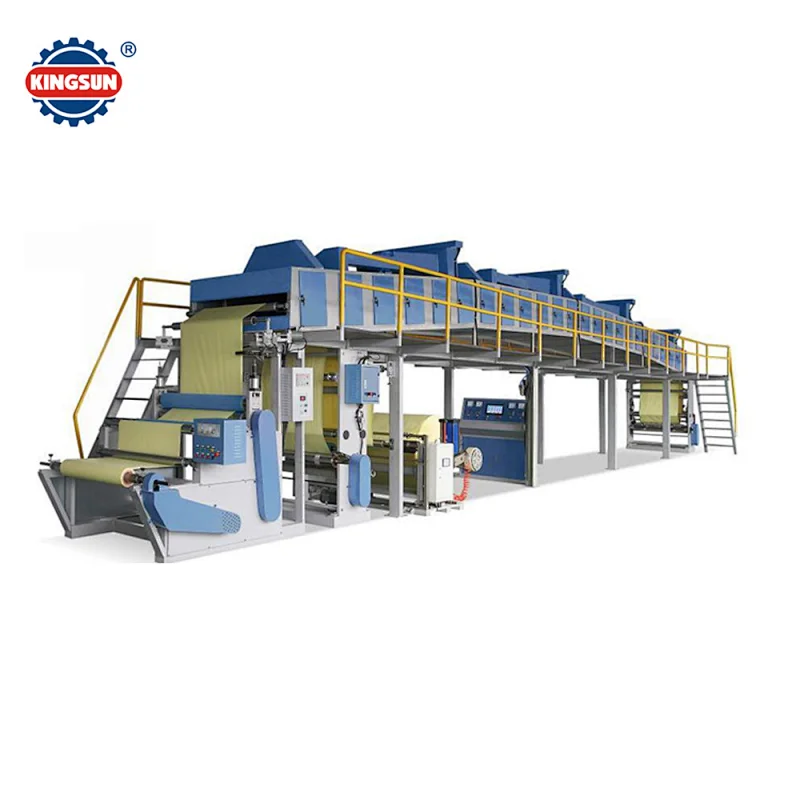

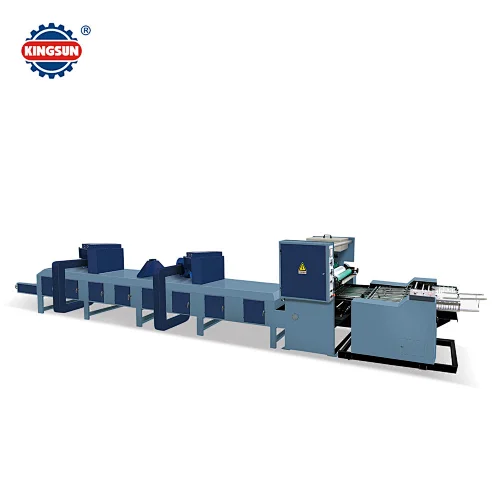

China Professional Manufacturer TBZ-600 Silicone Coating machine
China Professional Manufacturer TBZ-600 Silicone Coating machine

China Professional Manufacturer TBZ-600 Silicone Coating machine

Model NO.
TBZ600
Quantity:

China Professional Manufacturer TBZ-600 Silicone Coating machine

Technical specification:

1.This machine is suitable for silicone paper coating.

2. Base material:30-40gsm paper Coating material: Solvent coatings

3. Coating method: Anilox roller coating(with roller for mixing glue)

Technical Specification:

Coating width

¢600mm

Coating roller width

¢650mm

Machine speed

80m/min

Working speed

10-60m/min(according to different material)

Max unwinding dia.

600mm

Max unwinding dia.

600mm

Oven temperature

150±2℃

Web guiding precision

≤1.5m

Coating evenness

wet glue ≤0.003mm

Heating method

electric heating about64.8KW

Motor power

22kw

Power supply

3PH,50HZ,380V

Machine weight

7000kgs

Machine dimensions (L×W×H)

9.5 × 2. 0× 3.3 M



1.Base material unwinding unit

Method

Single station unwinding

Unwinding width

600mm

Unwinding dia.

¢600mm

Unwinding roller

3’’shaft roller

Unwinding tension control

5Kg magnetic powder brake

Tension controller

82MTA tension controller

Web guiding

EPC

Frame

Steel manufacture

Anilox roller coating unit with doctor rolls

Coating method

Gravure coating

Coating width

600mm

Coating roller

¢200mm anilox

Coating pressure roller

¢140mm rubber roller

Pressure control method

Pneumatic control

Doctor blade unit

independently controlled by motor

Driver

Frequency converter controlled by PLC

3. Dry Oven Unit

Type

Arch-type

Length

9m for three sections.

Heating method

Electric heater

Temperature

≤150±2 degree ,temperature in every section controlled by temperature controller.

Wind intake circulation fan

High efficient centrifugal fan,

Emission device

Pipeline convulsions.

Transmission method

Synchronous belt drive guide wheel

4. Traction and cooling unit

Traction roller

¢270mm,surface chromium plated

Pressure roller

¢180mm rubber roller

Pressure control method

Pneumatic control

Driver

Frequency converter control

Tension control

Float swing arm by PLC auto-control

5. Base material rewinding unit

Method

single station unwinding

Rewinding width

600mm

Rewinding dia.

¢600mm

Rewinding roller

3’’shaft roller

Driver

Frequency converter

Tension controller

Float swing arm by PLC auto-control

Frame

Steel manufacture

Configuration:

1

Magnetic powder brake

5kg

1set

2

Unrewinding web guide

Ultrasonic web guide

1set

3

Obliquely web guide

Ultrasonic web guide

1set

4

Coating motor

1.5KW

1set

5

Coating motor driver

1.5Kw vector frequency converter

1set

6

Doctor rolls motor

0.75KW

1set

7

Doctor rolls motor driver

0.75KW vector frequency converter

1set

8

Oven guiding wheel transmission motor

1.5KW

1set

9

Oven transmission motor driver

1.5KW frequency converter

1set

10

Traction motor

4KW

1set

11

Traction motor driver

3.7KW vector frequency converter

1set

12

Rewinding motor

4KW

1set

13

Rewinding motor driver

3.7Kw vector frequency converter

1set

14

Magnetic powder brake

82MTA,with pressure sensor

1set

15

Guding wheel

1set

16

Pneumatic element

1set

17

Heating fan

1.5KW

3sets

18

Exhaust fan

1.1KW

1set

19

shaft

3’’

2 pieces

20

Low voltage apparatus

1 set

21

Temperature controller

3sets

22

Bearings

1set

23

Stainless steel heating pipeline

1 set

24

Anilox roller

1set

Warranty:

One year after machine arrival at the destination port.
