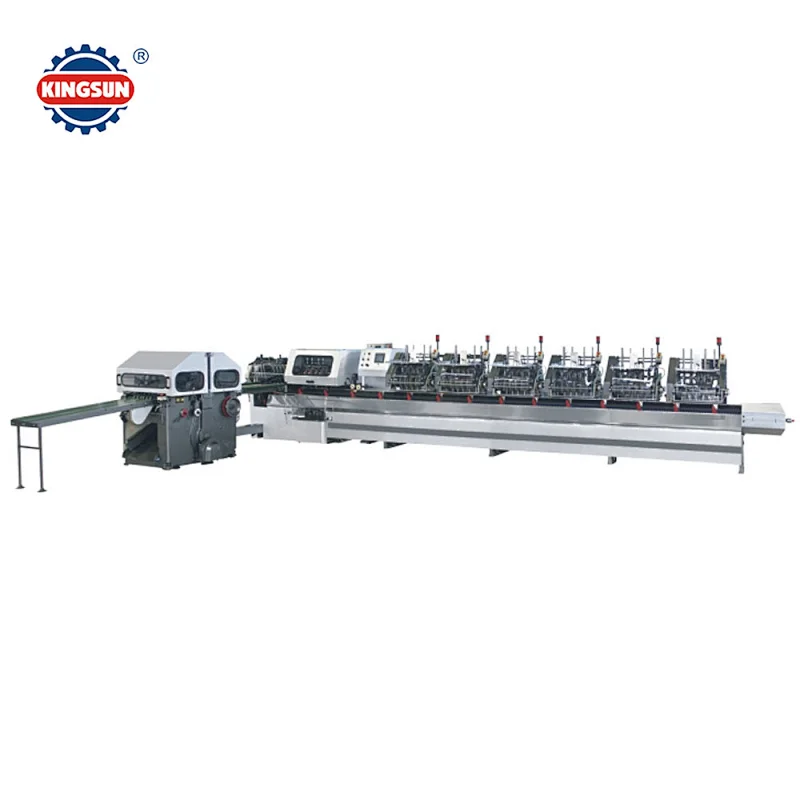

combined saddle stitching line (book stitching machine)
combined saddle stitching line (book stitching machine)

combined saddle stitching line (book stitching machine)

Model NO.
Q8E
Quantity:

Features:
1)The key parts adopts renowned world brands to ensure high stable running .The stitching head from Hohner,Germany and is further enhanced by a strict control in its part and component machining, in addition to a single piece casting of the body for the three-knife trimmer.
2)Its unique structure offers easy and fast setting and operation control through its color touch screen that provides you with a general view of the machine's running status. Other adjustments are fit outside of the machine for non-stop control operations.
3) With high precision automatic detection system and PLC control system.
4) the number of section feeder is optional.

Max mechanic speed

10000 books/hour

Max size before cut

450×310mm

Max size after cut

440×300mm

Min size before cut

158×110mm

Min size after cut

148×105mm

Dual-book max size after cut

217×300mm

Dual-book min size after cut

148×105mm

Max thickness of finish book

8mm

Machine power

15.5KW

Weight

7000kg

Out dimensions

10000×5400×1650mm
