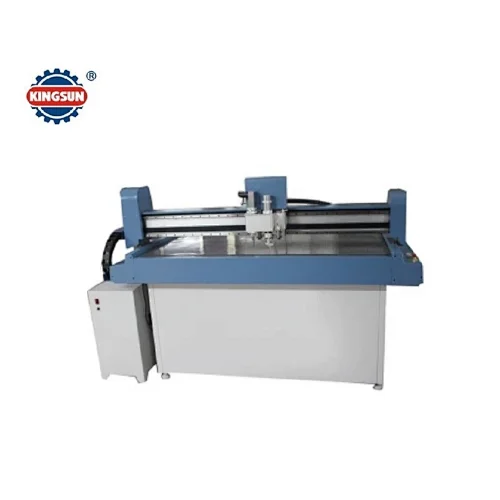

ZXF Cutting Plotter for Making Carton Packaging Box Samples

Model NO.
ZXF
Quantity:

ZXF Series Carton Sample Box Cutting Plotter

This series computer control carton box cutting plotter is suitable for making the sample box before large production. Kingsun cutting systems are fast and precise, perfect for single-ply or low-ply cutting operations. They are simple, rugged, reliable, and easy to operate, with the smoothest motion in the industry. Our complete, turnkey systems include an integrated vacuum table, gantry and cutting head, and a friendly, easy to use hardware and software interface.

Features:

1. It can cut many different materials. Such as card paper, plastic board, compound paper,grey paper, PVC plastic plate, sponge and foaming plate etc.

2. Folding function: it can press an accurate folding line on card paper and offset board.

3. Half cutting and dotted line: it can cut a side of paper and draw dotted and folding line according to the customer's requirement.

4. Location: it can accurately locate and cut the printed paper box.

5. Drawing function: It can draw an accurate figure on a paper and a film.


Technical specifications:

Model

ZXF1209

ZXF1310

ZXF1713

ZXF2516

Cutting area(mm)

1200X900

1300X1000

1700X1300

2500X1600

Floor area(mm)

1750X1600 X1150

1850X1700 X1150

2350X2000 X1150

3050X2300 X1150

Cutting material

Cardboard, corrugated paper, PVC plastic plate, sponge and foaming plate. etc

Max cut thickness

15mm

Position precision

≤0.025mm

Fixed type

Vacuum absorption

Cutting precision

≤0.1mm gantry

Min cutting radius

5mm

Tool

Pen, knife and embossing wheel

Command system

HPGL

Travel speed

40-800MM/s

Power supply

220V ±10%50HZ/380V ±10%50HZ

Driving system

Servo

Note : the cutting area available for customization

Send Message

*
* clear input

Related Products

cutting plotter

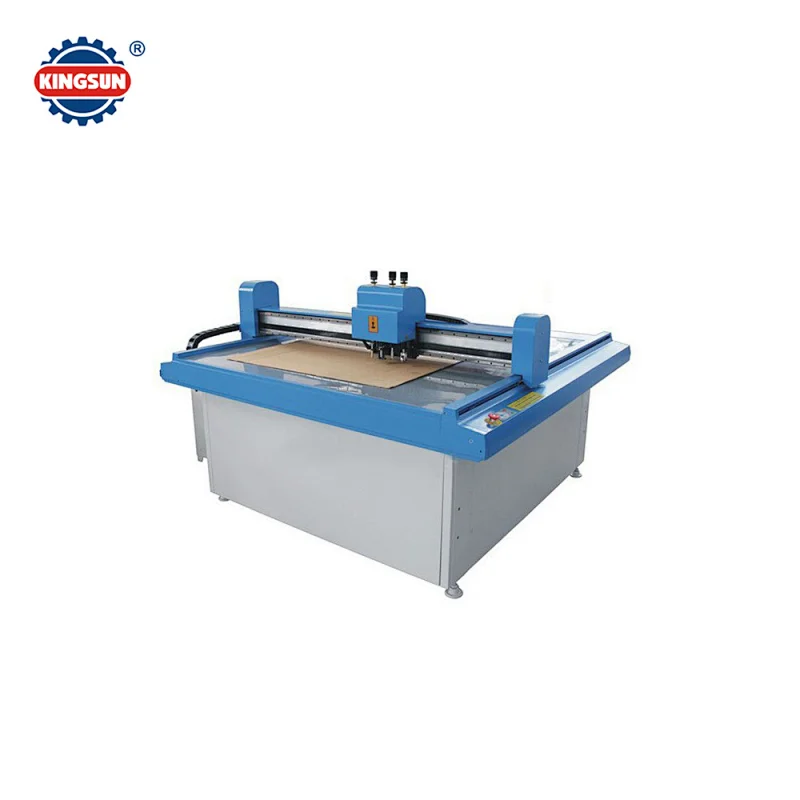

ZXF series Digital Flatbed Carton Sample Box Cutting Plotter Machine
