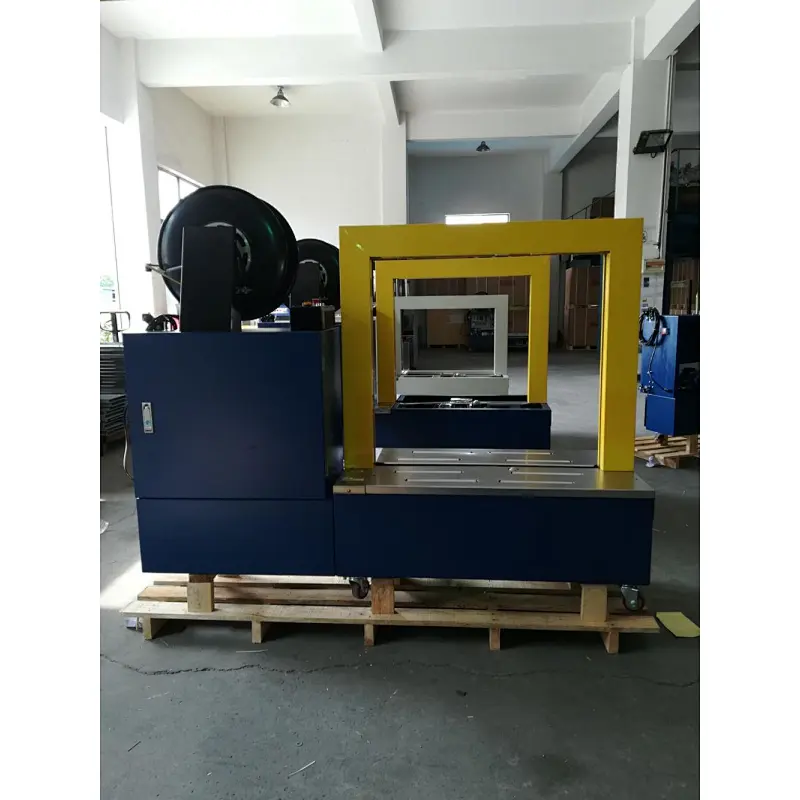

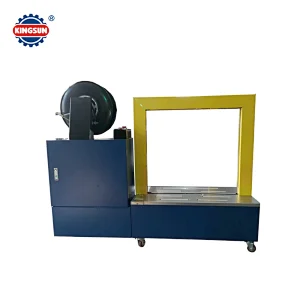

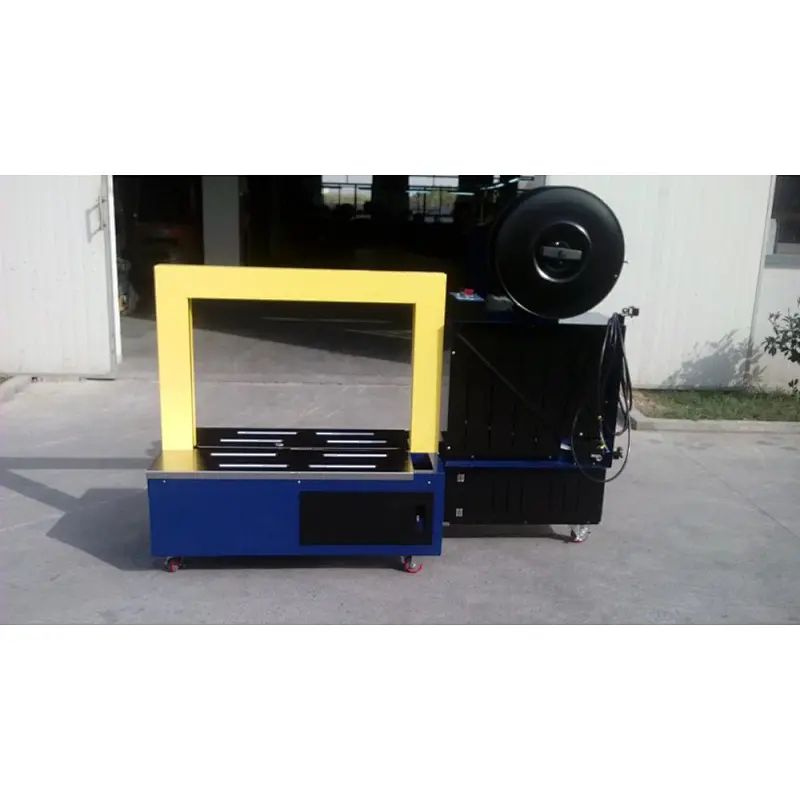

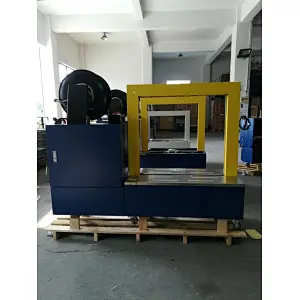

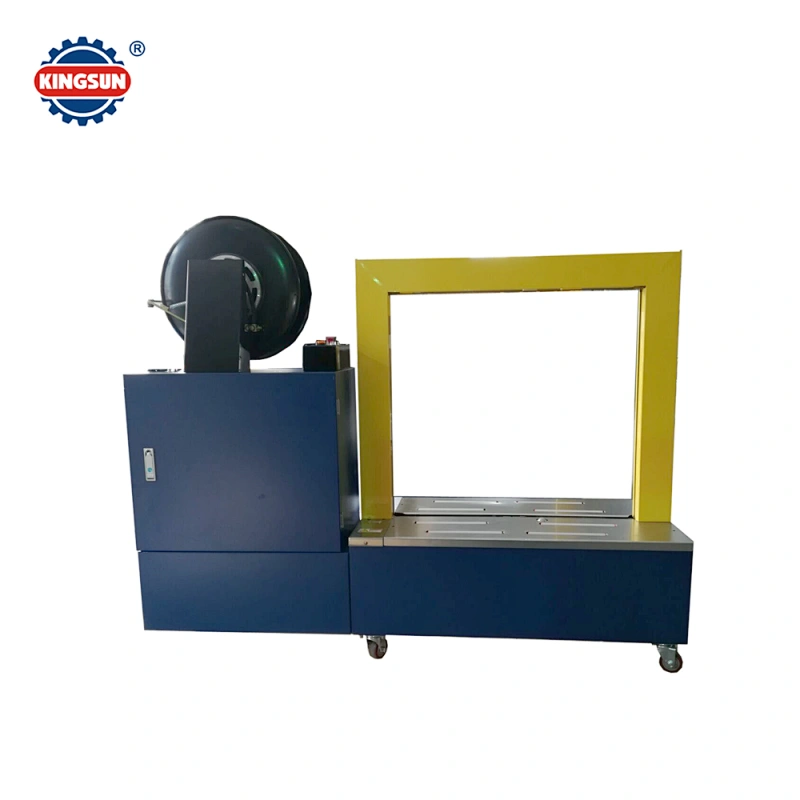

DBA-200L Low Table Automatic Strapping Machine
DBA-200L Low Table Automatic Strapping Machine
DBA-200L Low Table Automatic Strapping Machine
DBA-200L Low Table Automatic Strapping Machine
DBA-200L Low Table Automatic Strapping Machine
DBA-200L Low Table Automatic Strapping Machine
DBA-200L Low Table Automatic Strapping Machine
DBA-200L Low Table Automatic Strapping Machine
DBA-200L Low Table Automatic Strapping Machine

DBA-200L Low Table Automatic Strapping Machine

Model NO.
DBA-200L
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
300 set / Quarterly
Country of Origin:
Shanghai or Ningbo
Quantity:

DBA-200L Low Table Automatic Strapping Machine

Product Feature
DBA-200L Low Table Automatic Strapping Machine is specially designed for big and heavy packages, which with rugged housing and strong loading weight. Its strapping table can be customized according to the height of the customers’ production line.
Strapping type: one to several lanes at parallel way, and can be manual, automatic or pedal switch.

Technical Specification

Model

DBA-200L

Voltage

220V/50HZ, 1P or 380V/50HZ, 3P

Applicable Strap

Polypropylene Width;9,10,12,16,19mm

Arch Size

Width:550~2850mm; Height:250~1800mm

(standard size 850W x 600H)

Speed

2.3sec/ cycle (arch W850 x H600)

Tension

5~80kg

Dimension (L x W x H)

1880 X 600 X 1200 (arch width 850 x height 600)

Weight

280kgs
