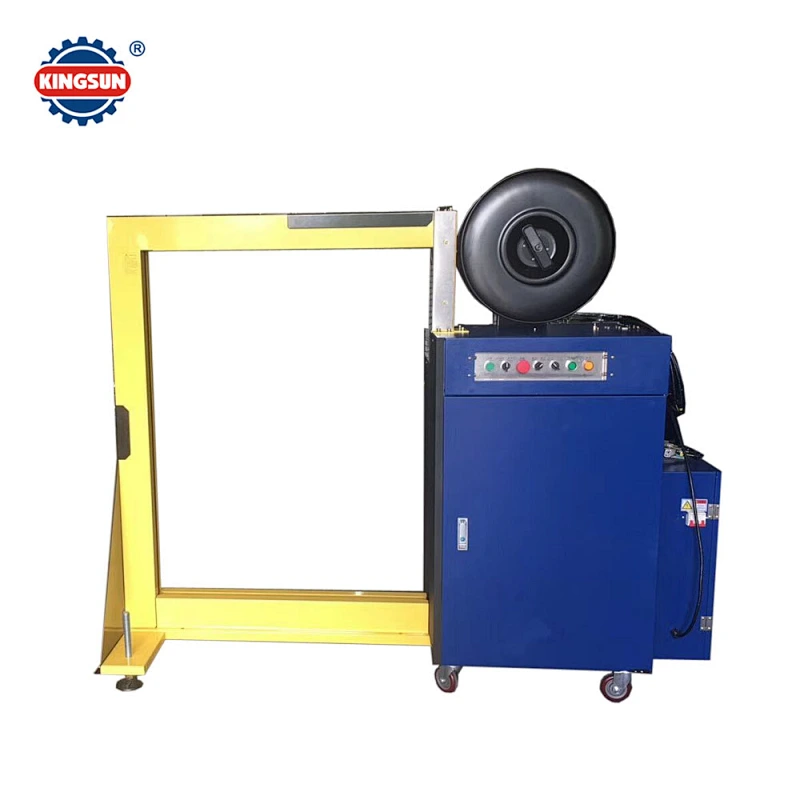

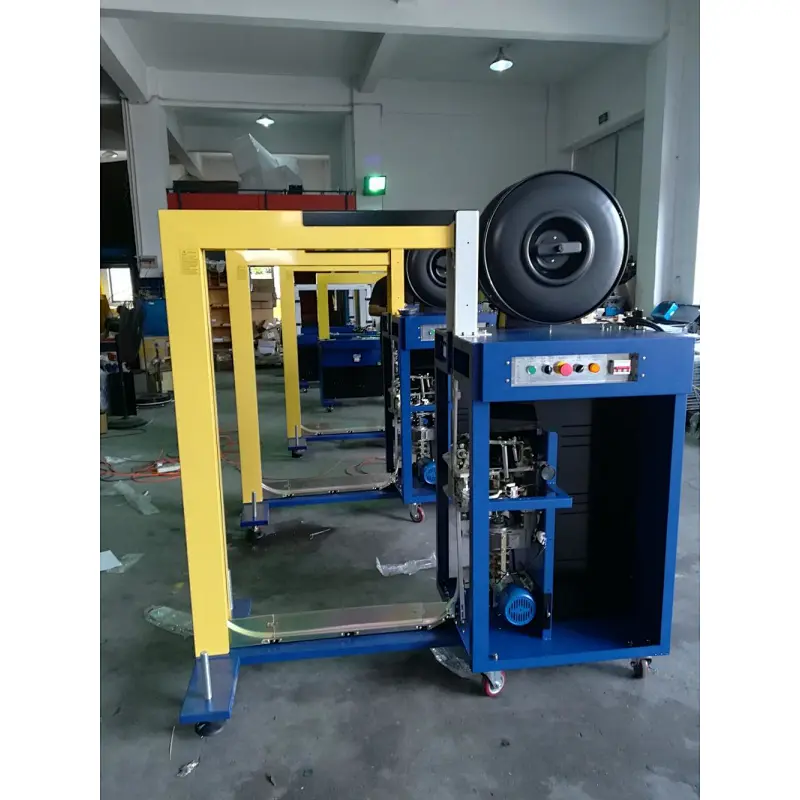

DBA-300 Automatic side type strapping machine
DBA-300 Automatic side type strapping machine
DBA-300 Automatic side type strapping machine
DBA-300 Automatic side type strapping machine
DBA-300 Automatic side type strapping machine
DBA-300 Automatic side type strapping machine
DBA-300 Automatic side type strapping machine

DBA-300 Automatic side type strapping machine

Model NO.
DBA-300
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
300 set / Quarterly
Country of Origin:
Shanghai or Ningbo
Quantity:

DBA-300 Automatic side type strapping machine

Products feature

DBA-300 Automatic side type strapping machineis specially designed for packing large-sized articles(like air conditioners, refrigerators, motorcycles, etc.). A transfer line and an electric eye unit are connected to the front and rear of the machine respectively to make the binding process fully automated or run.

It’s in a completely unmanned manner, and the workbench height can be adjusted according to the transfer line, and Style of binding: Manual and foot switches; single- and multiple-strip parallel binding or free selection from 1 strip to 4 strips via automatic photoelectric control

Technical Specification

Model

DBA-300

Voltage

220V/50HZ, 1P or 380V,50HZ, 3P

Strap width

Polypropylene Width;9,10,12,13.5,15.5,19mm

Arch size

600mm x1250mm (Can be customized)

Strapping speed

2.5sec/cycle(arch W1450 x H600)

Dimension(LXWXH)

1610 x 625 x 1840mm(arch W600 x H1450)

Net Weight

225kgs
