Model NO.
KLJ-1100
Quantity:

Demetalizing Machine for Metalized Film or Metalized film window making machine

This series demetalizing machine is widely applied to convert metalized film or laser BOPP, PET, PVC film to make window partly by chemical washing-away methods for giving prominence to logo position, the see-through window is optional according to client's requirements on size and shape. Kingsun Machinery has over 15 years experience for this type of demetalizing equipment, we can special made it for your special applications.

Features of demetalizing machines:

1.The chemical reaction tank for this metal film window washing machine is made of PVC materials and the guide roller is made of stainless steel. So it is strong in anti-corrosion performance and durability.

2.It features drying system which is scientific in working way and quicken the drying speed, and help part see-through part of the film same as before.

3.Low in cost, only keep the concentrate of the reaction solution which is sustained by supplying chemical solution that costs USD0.70 after each 10 hours working time. Besides, the chemical reaction liquid is without color, odorless, toxin-free and exhaust-free, so it's good for environmental protection

4. You can use water washing or chemical etching, both function included in the machine.

Main Specifications:

Model

Working Width

Working Speed

Web Dia

Main Motor

Water Pressure

Total Power

Installation Size

Weight

1200

1100mm

60-100m/min

500mm

2.5kw

≥0.2Mpa

38kw

860x170x180cm

4.3/T

1100

1000mm

50-100m/min

500mm

2.5kw

≥0.2Mpa

32kw

806x160x180cm

3.8/T

800

700mm

50-100m/min

500mm

1.5kw

≥0.2Mpa

28kw

860x130x180cm

3.3/T

Note: We have various model from 800mm till 1700mm.

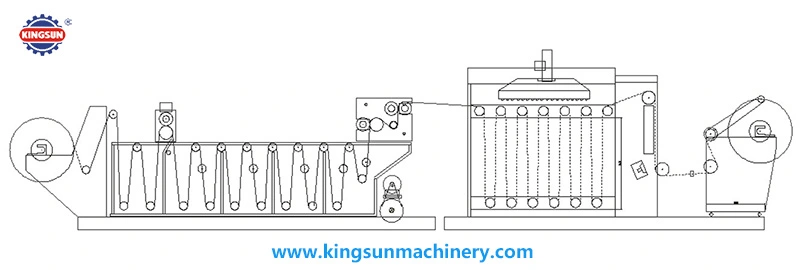

Machine Sketch Drawing:

Demetalizing machine drawing 1.jpg

Demetalized Sample Photos:

DEMETALLIZING MACHINE SAMPLE.jpg
