Model NO.
DK-450G
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
40 set / Month
Country of Origin:
Ningbo or Shanghai
Quantity:

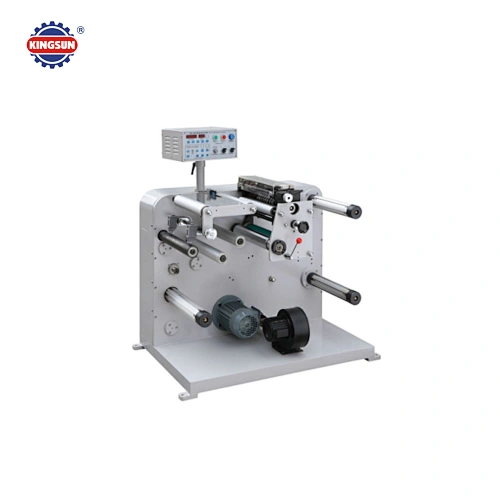

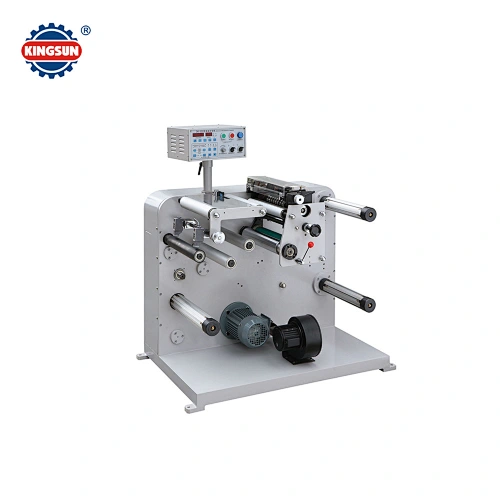

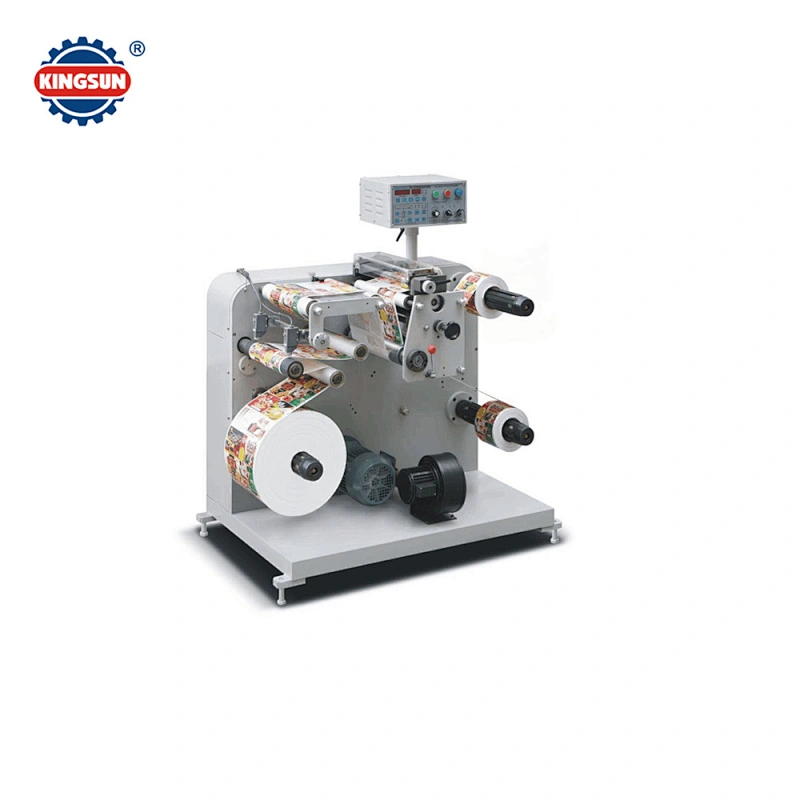

DK-450G Label Slitter Rewinder Machine

Main features:
DK-320/450/520 model adhseive label slitter rewinder machine is an automatic sliting machine and ancillary products, this machine is suitable for slitting label. It has automatic meter counting, set length, number, automatic turn off, unwinding by photoelectric sensor,automatic correction control function. The machine has compact structure, fast speed, high efficiency, accurate slitting, simple operation, stable operation and other characteristics.


Product parameters:

Model

DK-320

DK-450

DK-520

Slitting speed

75m /min

75m /min

75m/min

Max web width

320mm

450mm

520mm

Max unwinding diameter

500mm

600mm

600mm

Max rewinding diameter

480mm

480mm

480mm

Dimensions (L X W X H)

130*105*150cm

130*125*160cm

130*135*175cm

Machine weight

480kg

650kg

750kg

Note: Other special specification as per customer request​​​​​​​
