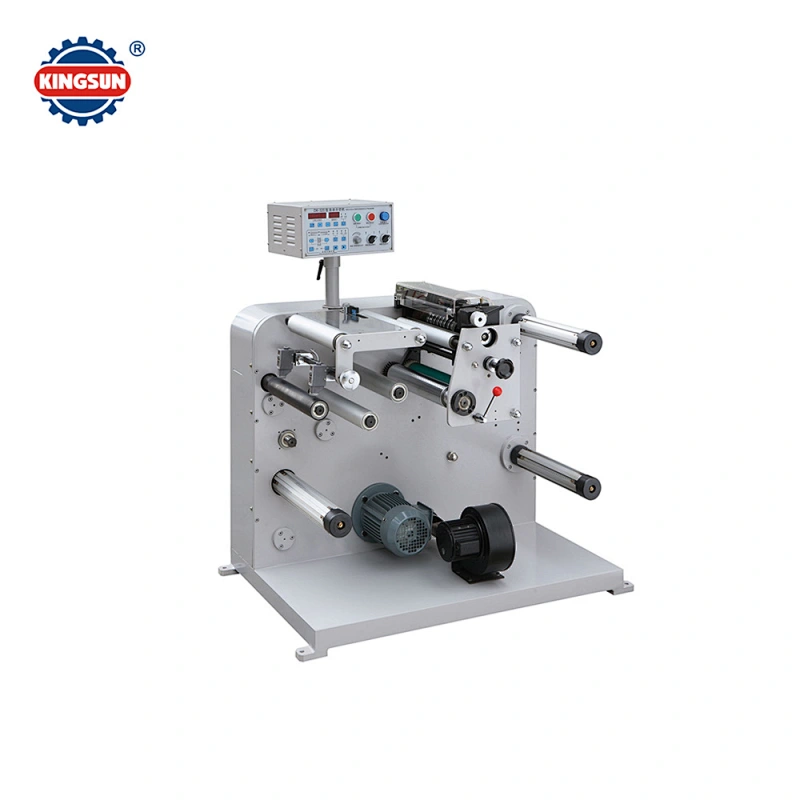

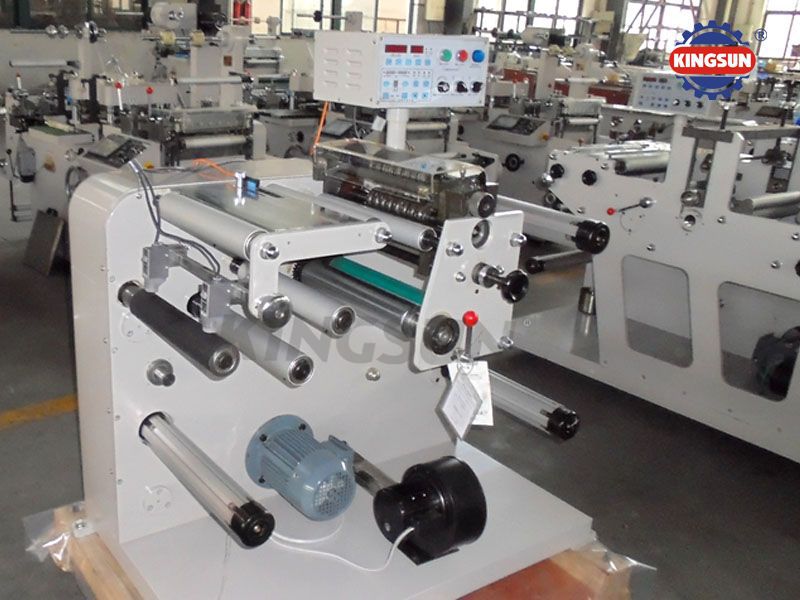

DK-450H Label slitting rewinding Machine
DK-450H Label slitting rewinding Machine
DK-450H Label slitting rewinding Machine
DK-450H Label slitting rewinding Machine
DK-450H Label slitting rewinding Machine
DK-450H Label slitting rewinding Machine
DK-450H Label slitting rewinding Machine

DK-450H Label slitting rewinding Machine

Model NO.
DK-450H
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
60 set / Month
Country of Origin:
Ningbo port
Quantity:

DK-450H Label slitting Machine

Product Description

This label slitting rewinding machine suitable for narrow width paper label slitting.It has the function of automatically counting length,counting number and pre-setting stop,waste edge side paper blowing out.The whole structure is compact,high efficent,simple for operation.

a. This machine is the necessary auxiliary equipment for label die cutting machine.

b. The machine used for narrow width reel material slitting.

c. Automatic meter counting and number counting.

d. Two photocell tracking web guide in unwinding unit

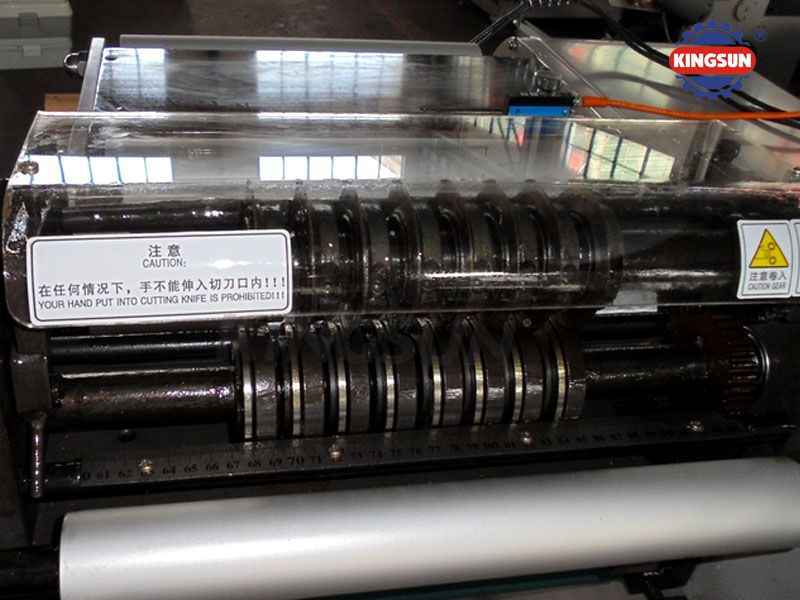

e. Easy adjustment for the up and down knife ( 6 sets circle knives)

f. Pre-setting automatic machine stop.

g. Waste edge-side slitting function.

h.3 inch for unwinding and rewinding air shaft. Shaft size can special made.

i. With magnetic brake and clutch for control unwind and rewinding roll.

Main specifications:

Model

DK-450H

Slitting speed

100m/min

Max. web width

450mm

Max. unwinding diameter

600mm

Max. rewinding diameter

480mm

Slitting precision

±0.5mm

Overall dimensions

1.1X0.9X1.48M

Weight

About450kg

201311201123470468(1).jpg201311201123497656(1).jpg201311201123498906(1).jpg201311201123500156(1).jpg201311201123501718(1).jpg201311201123503125(1).jpg
