Model NO.
DK-570H
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
60 set / Month
Country of Origin:
Ningbo
Quantity:

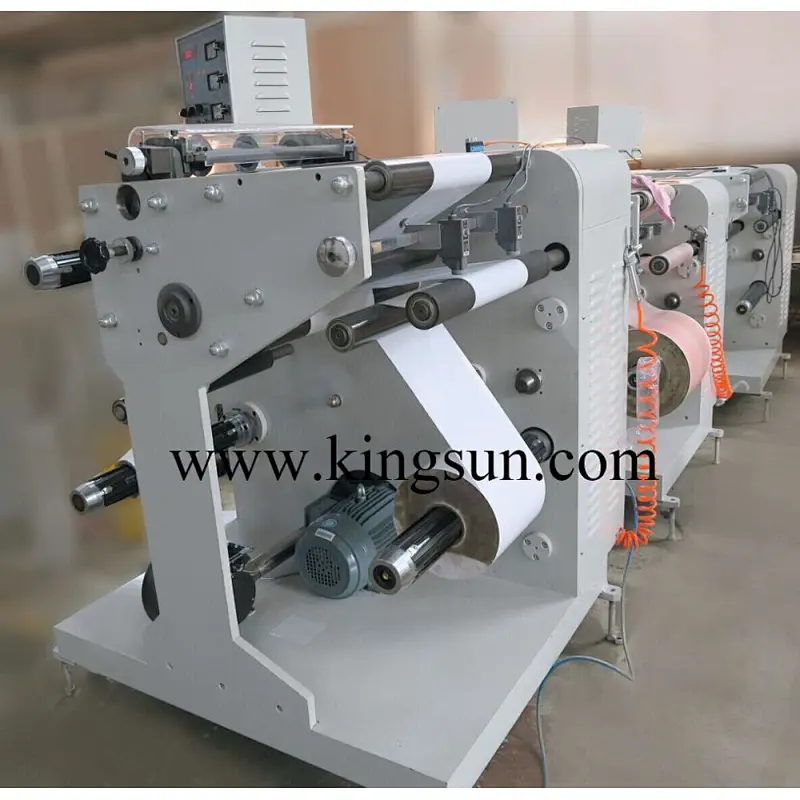

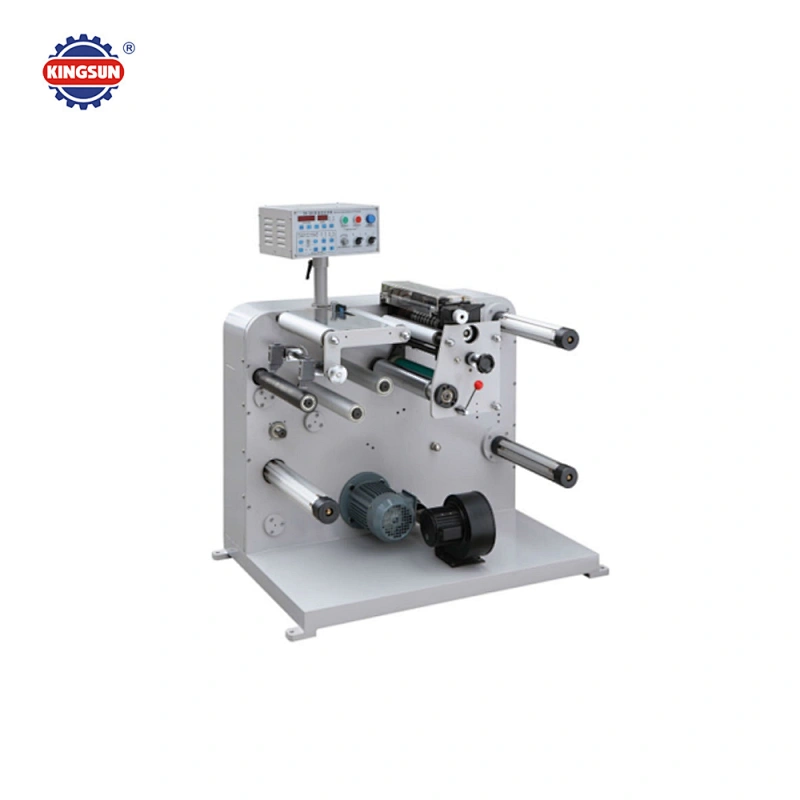

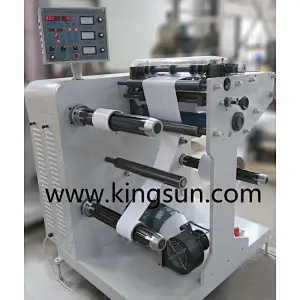

DK-570H Label Slitting Machine

Introduction:

DK-570H model label slitting machine is an auxiliary equipment for automatic label die-cutting machine, this machine is suitable for narrow paper or film label cutting. It has automatic length control, counter, automatic stop, unwinding by EPC web guide, the machine with compact structure, high speed and efficiency, accurate cutting, simple and stable operation and so on.

Main specification:

Model

DK-570H

Slitting speed

120M/min

Materials width

570mm

Max unwinding diameter

600mm

Max rewinding diameter

480mm

Slitting precision

±0.10mm

Out dimension

118 X145 X 130cm

Machine weight

About 700kg
