Model NO.
FM-1100, FM-1300 , FM-1450
Quantity:

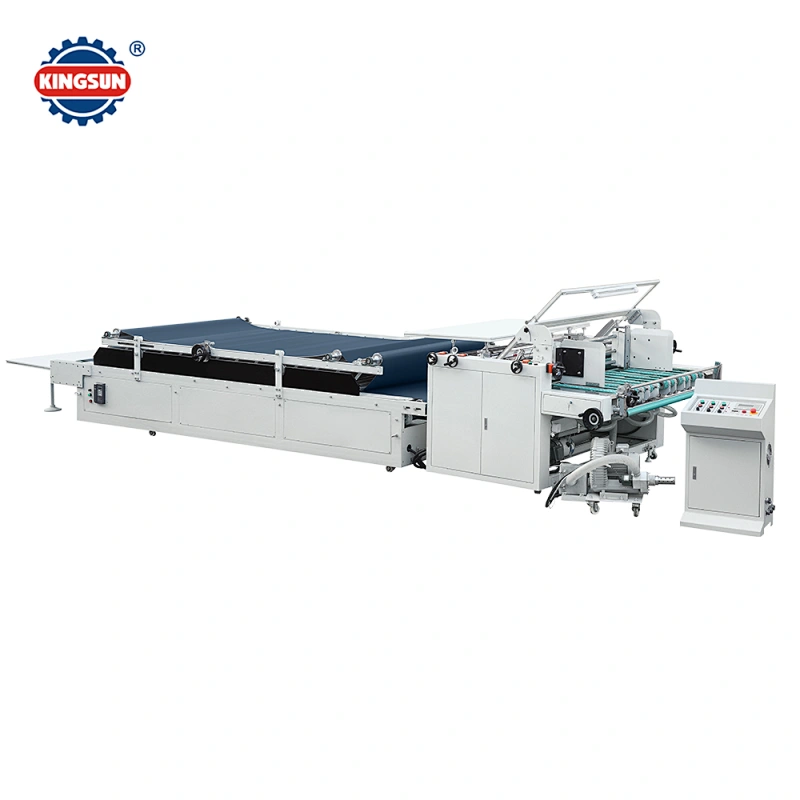

FM Series Semi-automatic Flute laminator, corrugated Board Paper Laminating Machine

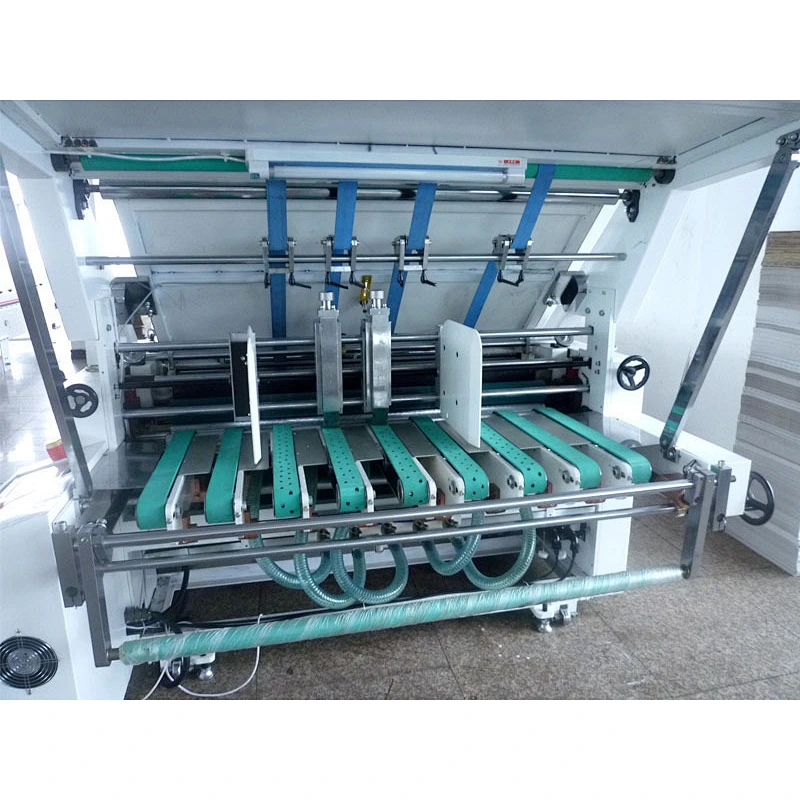

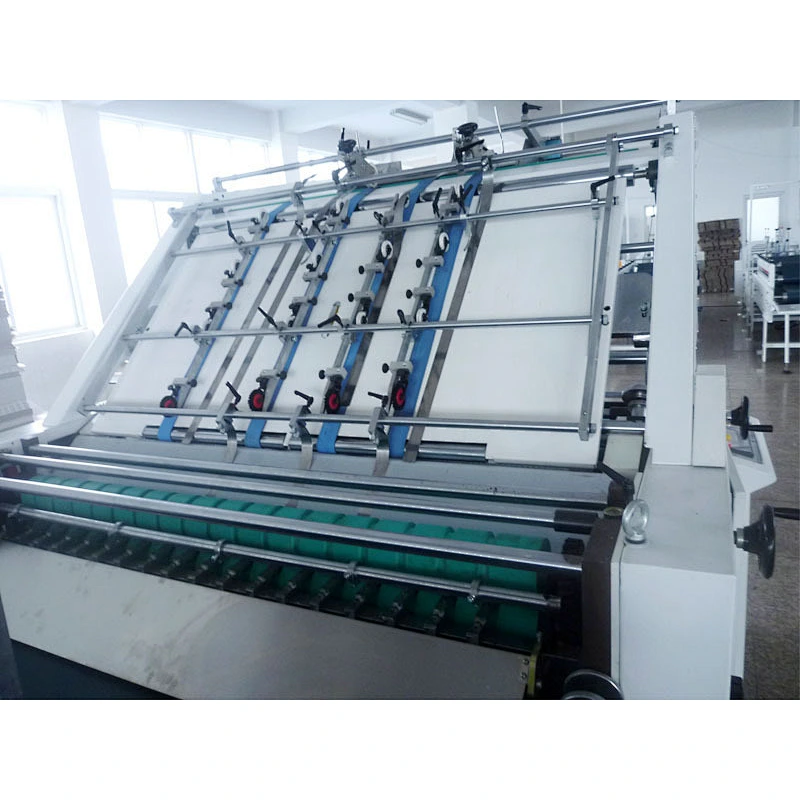

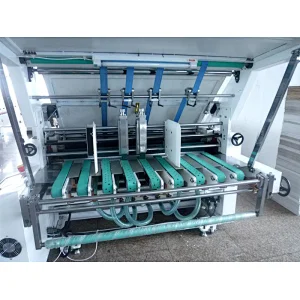

This paper laminator is with humanity design of automatic feeding for bottom sheet that makes feeding easier. Several feeding positions are available; feeding can be either from the top or from the side. This machine has features as easy for operation, convenient for maintenance, low noise, high speed and high precision, etc . Suitable for lamination of corrugated paper to cardboard, and cardboard to cardboard, adopting automatic feeder for the feeding of bottom sheet, the right side for feeding of face sheet, front positioning gauge for lamination precision, stepless speed control, with attractive and nice appearance, easy for cleaning and with high lamination precision, it is the new equipment for producing of high quality laminated cardboard, the laminated cardboard is much more striking, attractive and with a high strength, widely for the packaging of food, wine products, household appliances and light industrial products.

Main Specifications:

ModelFM-1300FM-1450FM-1600
Max sheet size(mm)1300*12001450*12001600*1200
Min sheet size(mm)350*350350*350350*350
Speed(m/min)0-900-900-90
Total power(kw)77.87.8

Measurement(mm)

7100*1850*1250

7100*2000*1250

7100*2100*1250
