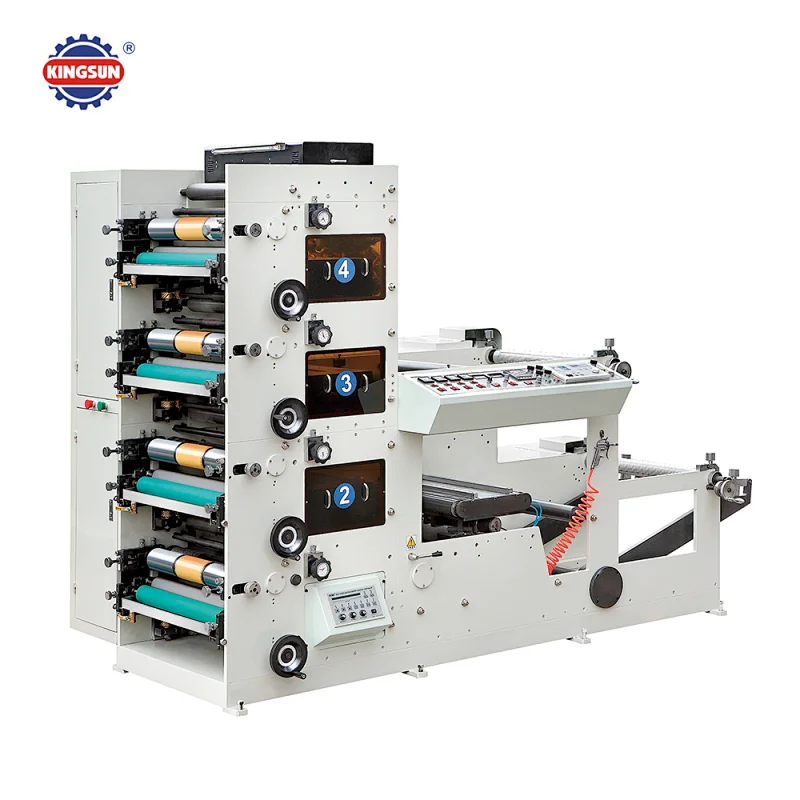

FP-850A 4 Colors Wide Flexo Printing Machine
FP-850A 4 Colors Wide Flexo Printing Machine

FP-850A 4 Colors Wide Flexo Printing Machine

Model NO.
FP-850A
Delivery:
FOB
Minimum order quantity:
1
Quantity:

FP-850A 4 Colors Wide Flexo Printing Machine

The machine can finish material-feeding, printing, varnish, drying, laminating, rewinding and die-cutting in one process is an ideal machine for printing paper cup and top-grade adhesive label.

Product Features

1.Adopt the anilox roller to spread ink.

2.Unwinding and rewinding are controlled by magnetic power brake, clutch.

(By automatic tension controller of Mitsubishi, made in Japan).

3.Each printing unit adopt 360° for registration.

4.Each printing unit have one IR drier.

5.The rubber roller of the flexo printing machine can break away automatically while parking, and running at a low speed, in order to avoid water being dried.

6.The main motor of the flexo printing machine is adopted the import stepless regulation of frequency conversion.

7.Unwinding, printing, varnishing, IR drying, laminating and rewinding of the flexo printing machine can be finished in one process, this kind of printing machine is best for each printing companies to print on adhesive-paper labels and other commercial label.

Main Technical Parameters

Printing speed

50m-80m/min

Max. printing width

850mm

Feed width

860mm

Max. unwinding diameter

1200mm

Max. winding diameter

1200mm

Max. printing size

175-380mm

Printing precision

±0.15mm

Voltage

380V±10%

Total power

35kw

Total pressure

0.6MP

Weight

3500kg

Outline dimension

3200x1850x2250mm
