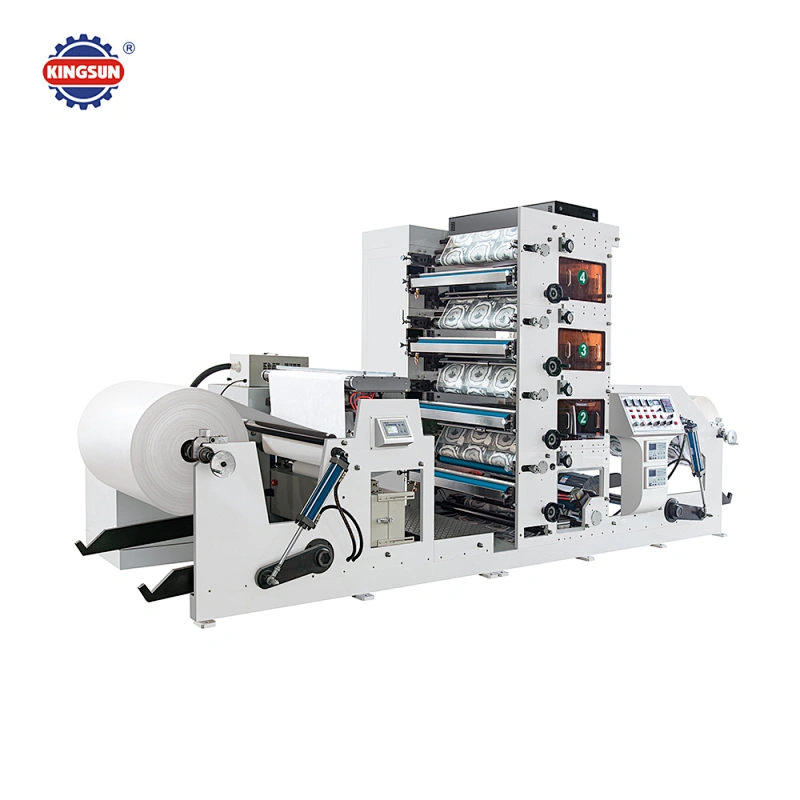

FP-850B Paper Cup 4 colors Flexographic Printing Machine
High Speed Plastic Bag Flexo Printing Machine can complete the whole process of feeding, printing, varnishing, drying, laminating, die-cutting, rewinding and sheeting, it is high economic benefit and non-polluting ink, it is the ideal
choice for various printing houses to printing bills, card paper and high-end stick labels.
Characteristics
1. Adopt the anilox roller to spread ink.
2. Unwinding and rewinding are controlled by magnetic power brake, clutch, (or by automatic tension controller of Mitsubishi, made in japan)
3. Each printing unit adopt 360 for registration. 4. Each printing unit have one IR drier.
5. The rubber roller can break away automatically while parking, and running at a low speed, in order to avoid ink being dry.
6. The main motor is adopted the import stepless, regulation of frequency conversion.
7. Unwinding, web guiding, printing, IR drying, die cutting, waste, rewinding, rewinding, can be finished in one process. This is an ideal machine for printing factory to print kinds of paper cups.
Main Technical Parameters
Printing speed | 50m-60m/min |
Printing chromatic number | 4 colors |
Feed width | 860mm |
Max. unwinding diameter | 1300mm |
Max. winding diameter | 1300mm |
Max. print size | 180-380mm |
Overprint precision | ±0.15mm |
Voltage | 380V±10% |
Total power | 36kw |
Total pressure | 0.6MP |
Weight | 4500kg |
Outline dimension | 4500x1800x2250mm |
