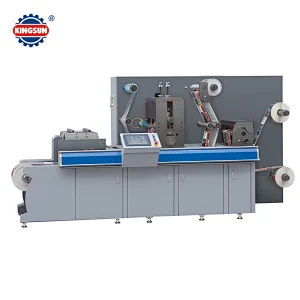

High Speed FM320 Label Die-cutting Machine
High Speed FM320 Label Die-cutting Machine
High Speed FM320 Label Die-cutting Machine

High Speed FM320 Label Die-cutting Machine

Model NO.
FM-320
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
10 set / Month
Country of Origin:
Ningbo/Shanghai
Quantity:

High Speed FM320 Label Die-cutting Machine

Features:

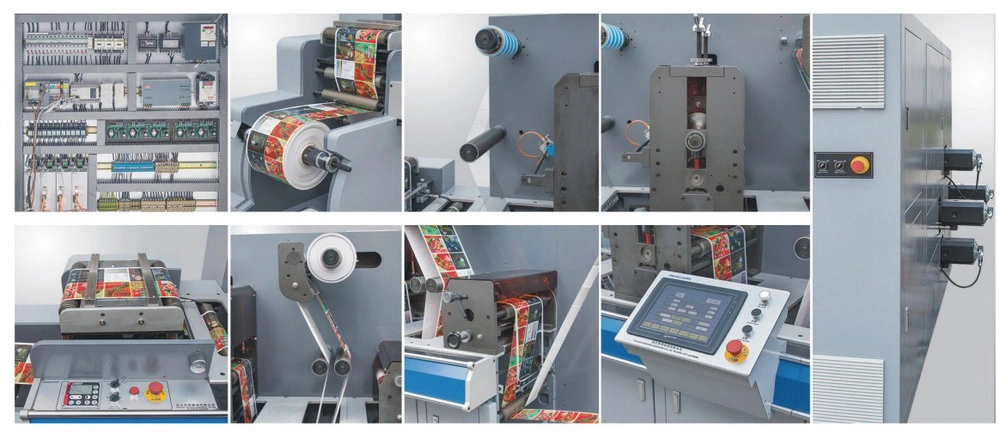

This is new developed converting machine equips with inline slitter.It adopts latest Rexrtoh-Bosch (Germany) servo and control system,include: unwinder,web-guide,lamination ,register die-cutter,slitter and rewinder.

This machine can be full rotary or semi-rotary die-cutter according to the production requirement. When use semi-rotary die cutter,the tension among unwinder,web-guider and rewinder will be the same(different from tradition intermittent type),the material will not run away during the die-cut.

Semi-rotary die cutting unit adopts one big magnetic cylinder,if you have different applications,the only job is to change the flexible die.
FM-320 machine has the characteristic of fast speed,super accurate,easy operation,high efficiency and less cost.It’s good for all kind of label die-cutting jobs,include short run to long run.You can change the magnetic roller accordingly when you do large quantity job.It will be highly increase the die-cutting quality and putput.

FM-320 rotary/semi-rotary label sticker die-cutting machinecommits to make the maximum profit for you.It’s an ideal converting machine for the printing house.

Main technical specifications:

Max die-cutting speed(rotary)

120m/min

Max die-cutting speed(semi-rotary)

65m/min

Max die-cutting length(rotary)

190.5-539.75mm

Max die-cutting length(semi-rotary)

100-350mm

Max die-cutting width

300mm

Max web width

320mm

Max unwinder dia.

600mm

Max rewinder dia.

600mm

Die-cutting accuracy

±0.1mm

Slitting width

20-300mm

Power supply

380V 3P

Overall dimensions

2.85(L)×1.0(W)×1.5(H) Meter

Weight

About 2400kg

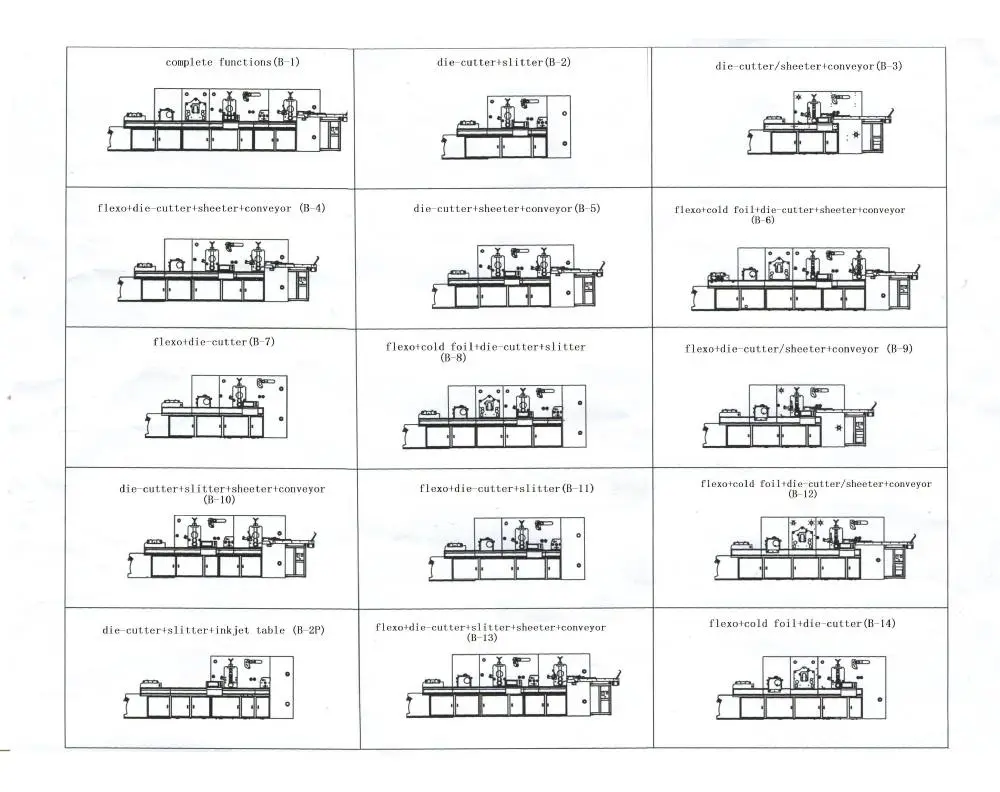

ZM-320 with different configuration+code no.jpg

Warranty:

One year after machine arrival at the destination port.
