Hologram Embossing Machine
Hologram Embossing Machine

Hologram Embossing Machine

Model NO.
1000
Quantity:

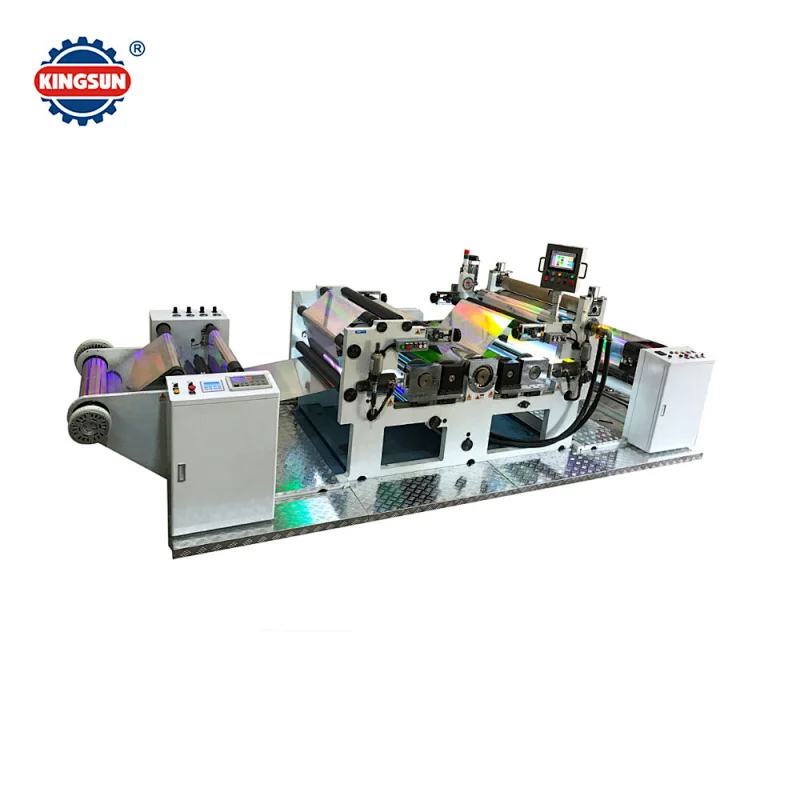

Laser label sticker making hologram machine, or equidistant hologram label embossing machines

It is spcialized designed for making hologram label for anti-counterfeit products. Kingsun Machinery factory has been in this field for over 15 more years, so we provide complete set equipment for master plate to hologram embossing machine to finish hologram label making.

Machine Features:

1.This hologram machine is special for embossing WIDE format holographic label.

2.Main technical features: PLC control, improved from the former semi-round plate system into equidistant embossing system, which is great solution to position registration, also makes the registration and die-cutting position highly in precision.

3. We provide hologram machine from master plate design and all relative hologram equipment.

Technicalspecifications:

ModelKLJ-800KLJ-1000
Effective width800mm1000mm
Max unwinding diameter800mm800mm
Machine speed20-100m/min20-100m/min
Total power25KW48KW
Machine dimensions5500 x 1800 x 1300mm5500 x 2000 x 1300mm
