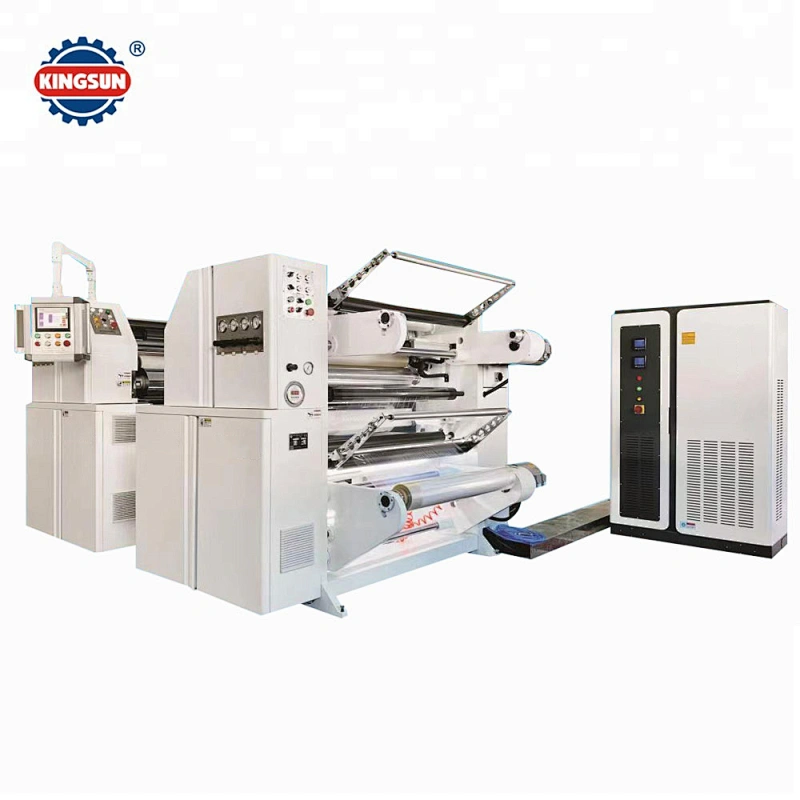

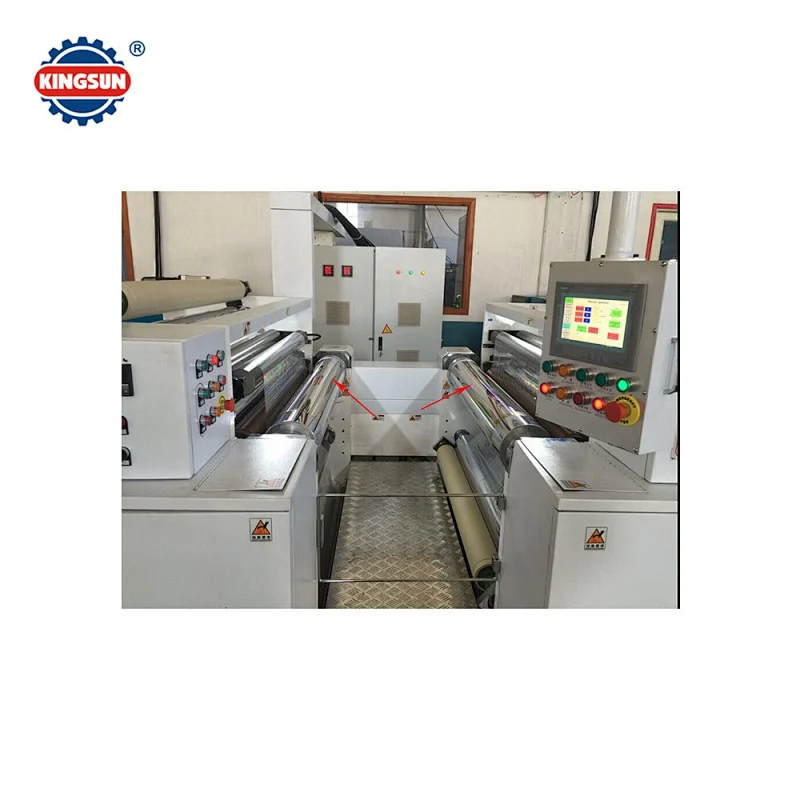

Holographic Film Soft Embossing Machine
Features:
This machine aimed to transfer the master pattern which from the nickel metal onto the film such as BOPP, PET (coated), CPP and PVC, film thickness ranges from 12 to 200um; this machine and the electroforming machine able to make different kinds of patterns (artwork).
This machine is PLC controlled, quick to change different plate roller without oil leakage, no affecting on master plate seam during heating and embossing, no wrinkling and shrinking in the process of embossing.
Technicalspecifications
Model | 800 | 1200 |
Embossing width | 880mm | 1200mm |
Roller circumference | 330mm | 520mm |
Working speed | 60m/min | 60m/min |
Diameter | 500mm | 500mm |
Total power | 15kw | 18kw |
Voltage | 380V | 380V |
Air pressure | 4.5kg | 4.5kg |
Machine dimension | 2.2 x 2.6 x 1.17M | 2.2 x 2.6 x 1.17M |
Machine weight | 1500kg | 3500kg |
