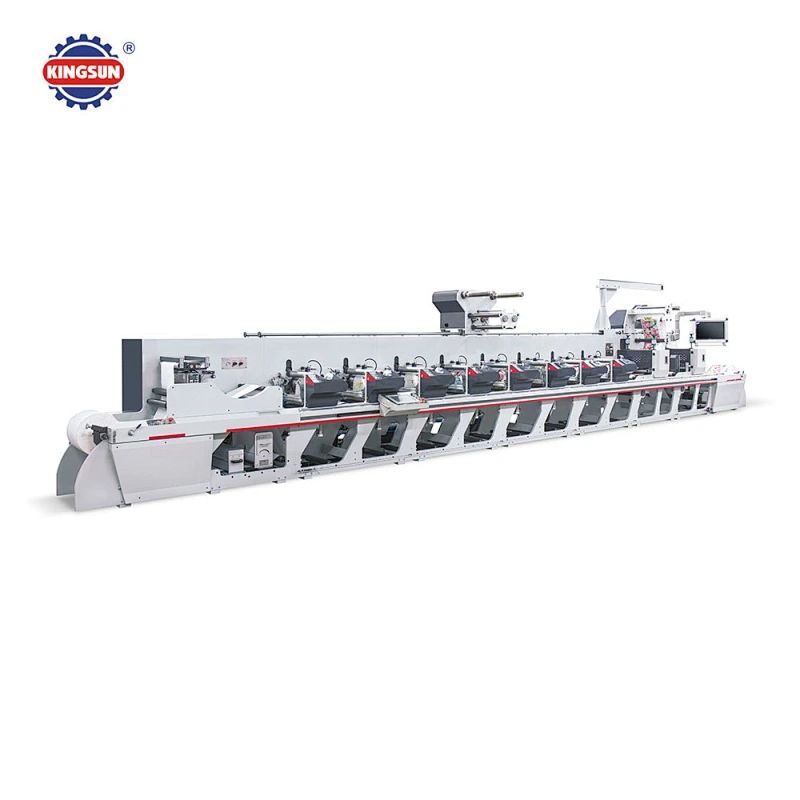

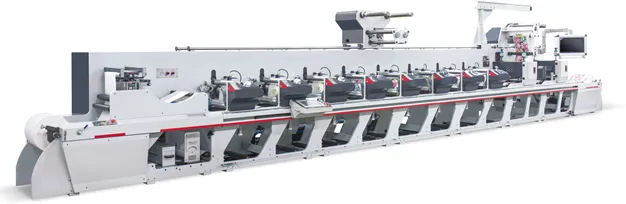

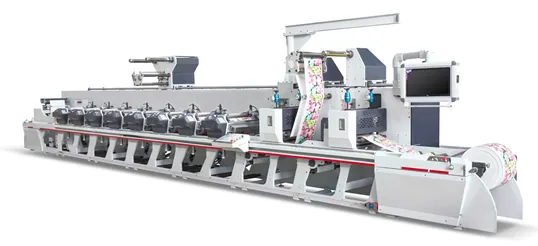

Sleeve Flexographic Printing Machine

The whole machine adopts the latest servo control system Baumuller from Germany and each printing unit is driven by independent servo motor. There are 25 servo motors in total for 8 color machine which ensure the accurate registration during high speed running.

The printing roller adopts sleeve system which is light, easy, convenient and fast to change. This type of design is largely improve the printing quality and reduce the maintenance.

Fast and easy pressure adjustment of printing or ink transferring: printing roller run by bearer, it is not necessary to adjust the pressure when change the roller, or at most fine adjust for special job.

Anvil roller equips with water chiller, it’s good for film material as well.

Main Technical Parameter

Max. printing speed

200m/min.

Max. printing width

330 mm

Max. width

340 mm

Max .unwind diameter

1050 mm

Max. exhaust diameter

900 mm

Max. repeat length

254-609.6 mm

Loading method

Sleeve

Horizontal overprint adjustment

Motor drive

Longitudinal overprint control

Servo drive

Preliminary overprint

Automatic

Fast changing ink system

Quick change of ink tank

Turn bar (movable)

Hot air drying

Option

Cold wave process (movable)

Option

UV dryer LED

Option

Lubrication way

Automatic

Segment introduction

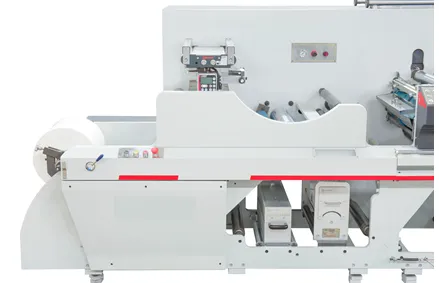

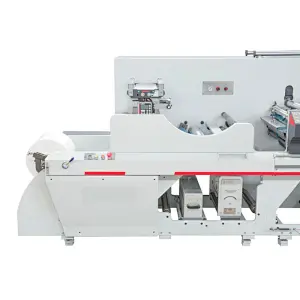

1.Unwinder 1set

1050mm, Maximum diameter of unwinding 1050mm, pneumatic feeding method

3 inch shaft

Servo tension control system

Paper breakage platform for Pneumatic clamping

BST automatic rectifying device

Pneumatic components adopted by Adriatic

Corona device can effectively increase the amount of ink on the film

Removing static electricity from material surface with electrostatic device

Dust removal from the surface of raw material with dust removal device

2.Second level tension part 1 set

2 sets of traction units, servo drive

French merobel tension testing

Pneumatic clutch of high precision clip roller

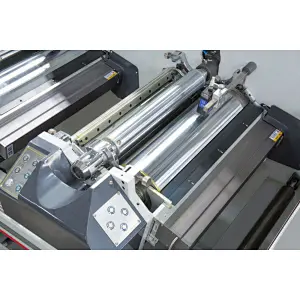

3.8 set of printing unit

Servo drive imprint roller

♦ Servo drive plate roll

Surface hard aluminum guide roll

Reserved hot air, uv, cold water roller station

Automatic clutch pressure function of plate roll

Lateral position adjustment device

High precision imprint bottom roll

Quick replacement scraper

Automatic registration function

4.Led UV drying system

30%using the performance of frequency conversion power supply, the same output power can save 30% more energy than ordinary lighting device.

The power has two kinds of choice, manual and automatic, which can control power step by step when manual, and follow automatically with the speed of printing machine, and can fine adjust the power of each color group separately.

Small size, convenient installation

Use drawer structure, convenient to wear paper, maintenance

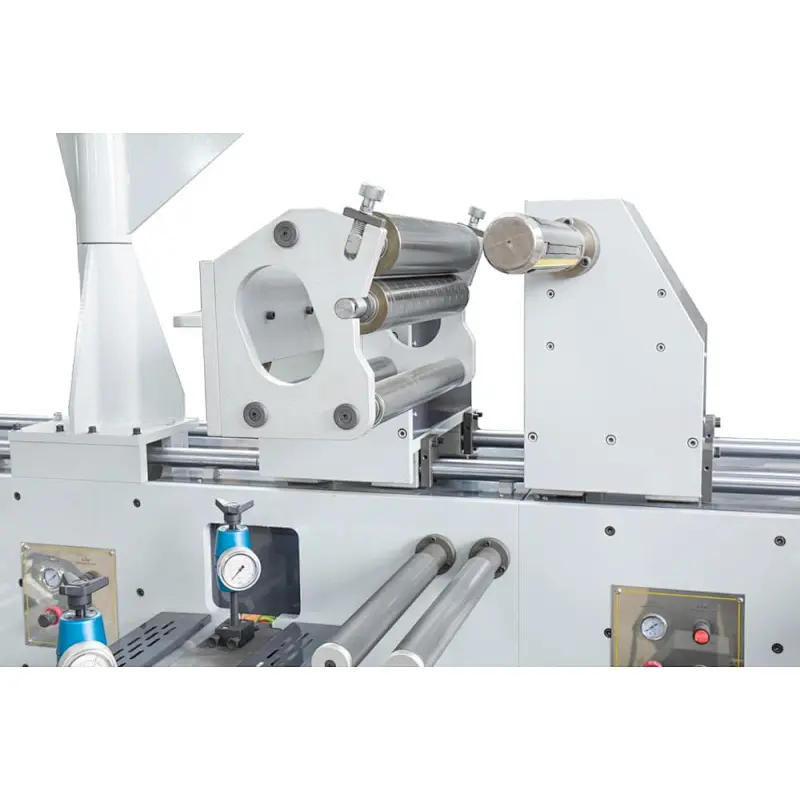

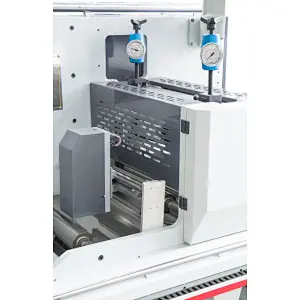

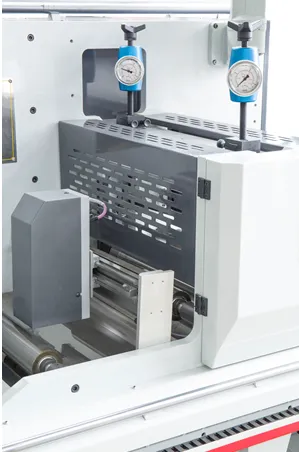

5.rotary die cutting station

2 set die cutting station

Lateral position adjustment device

The wallboard made by the quenched and tempered steel ensures the rigidity of the unit

High hardness alloy bottom roll

Die cutting pressure regulating device

Servo fine tuning is more convenient

The upper part of the die cutting seat is equipped with the crane to replace the risk of manual handling. The upper part of the die cutting seat is equipped with the crane and the risk of replacing the manual handling is replaced by the top part of the die cutting seat.

6.Waste coil unit

Full Servo pid Self-operation, automatically increasing Power with Winding diameter

3 inch shaft, with rotary gas supply joint

900mm Maximum waste diameter 900mm

Gas expansion shaft electric control charging / deflation device

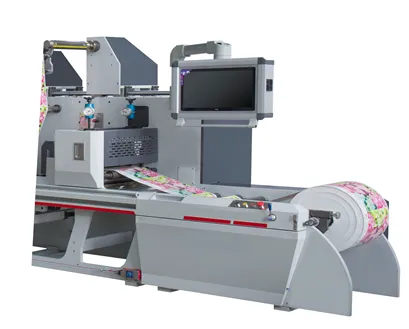

7.rewinder device

1050mmMaximum diameter 1050mm

Pneumatic feeding mode

3inch shaft

The output torque of frequency conversion motor can be adjusted according to the winding diameter at that time to ensure the stability of winding tension.

8.BST monitor

AOC 22screen

Gear sensor

Easy to adjust focal length, magnification, imaging contrast, etc.

A variety of monitoring mode selection, tracking registration, monitoring printing efficiency, etc.

Model

HSR-340-P8

8 set printing unit with 2 die cutting

NO.

Position

Brand

1

PLC

German Baumuller

2

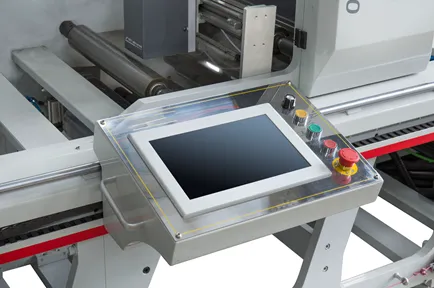

Master touch screen

German Baumuller

3

Control switch

Schneider / Shanghai yijia

4

Connecting terminal

Huatong

5

Panel switches

Schneider

6

Servo motor deceleration box

Shimpo

7

Motion controller

Germany Baumuller

8

All ordinary small motor and decelerator

Japan Panasonic

9

All pneumatic and pneumatic control components

Taiwan Yadak

10

All plain bearings

SKF/NTN

11

Unwinding tension control and actuator

Germany Baumuller

12

Rectifying device

Germany BST

13

Tension

France merobel

14

Winding tension controller
