Paper Tea Cup Making Machine
Paper Tea Cup Making Machine
Paper Tea Cup Making Machine

Paper Tea Cup Making Machine

Model NO.
JBZ-A04
Quantity:

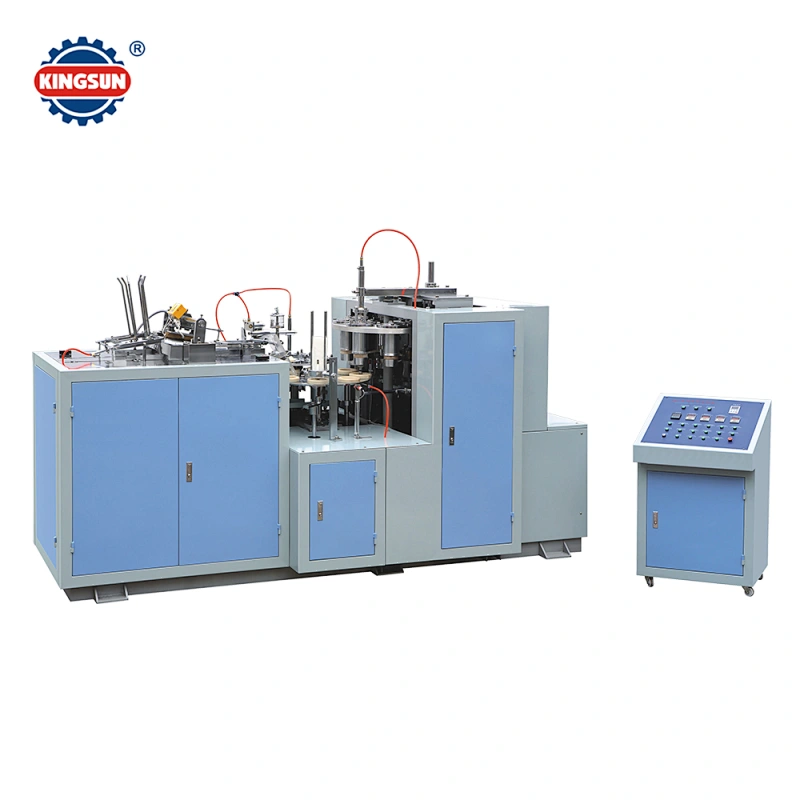

JBZ-A04 Paper Tea Cup Making Machine

JBZ-A04 paper cup making machine is a multi-station automatic forming machine. Double-coated paper cups are produced by automatic paper feeding, ultrasonic welding, upper mouth lubrication, lower punching, lower heating secondary, lower knurling, crimping, stacking cups and the like. The sealing system is an ultrasonic sealing machine, which is suitable for double-sided PE coated paper full printing design cup. This cup can be used for both hot and cold drinks, such as soft drinks, ice cream and coffee etc.

Advantages:
1. 20 years manufacturing experience for paper cup making machine
2. Big volume production of cup machines
3. Reliable and efficient design
4. Economic cost and good return

Main technical parameter

Model

JZB-A04

Cup size

2,4,4.5,6.5oz (for ice-cream)

Raw material

one side PE coated paper

Top mouth diameter

50-80mm

Bottom diameter

35-70mm

Cup height

30-60mm

Bottom depth

≤10

Angle

4-6°

Capacity

40-50pcs/min

Power supply

380V 50HZ(it can be changed if customer require)

Total power

5kw

Weight

1600kg

Package size(L*W*H)

2800×1350×1760mm
730×600×1100mm
