KB-6040 Model Automatic Shoe Box And Cell Phone Case Making Machine
This model Automatic Rigid Box & Case Making Machine,or rigid set-up box machine, is one kind of good equipment for making high-grade covered boxes because it is characterized by nice design, reliable performances and advanced technologies. It adopts PLC control, photoelectric detector system, hydraulic pneumatic system, touch screen man-machine interface to automatically finish feeding and gluing paper, conveying cardboard, forming and gluing four angles of cardboard, positioning, gluing and forming box in one process. It is applicable to make high-grade rigid boxes for shoes, shirts, jewelry, gifts, etc.Whole processes are full automatic. Compared with the traditional hand made box production, the production efficiency improves by 50 times.
Features:
1. Automatic delivery unit for paper feeder.

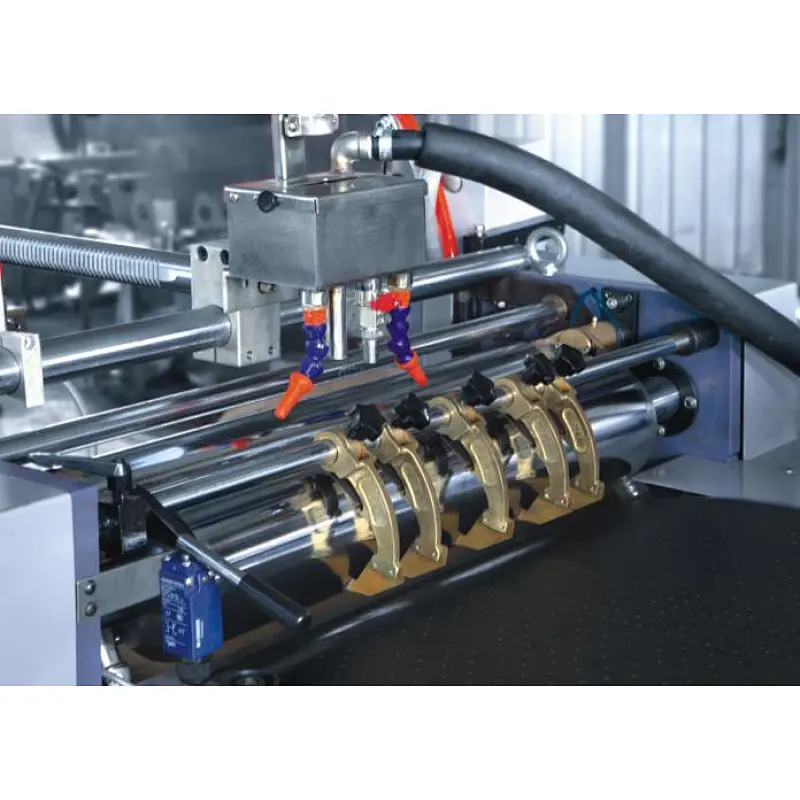

2. Automatic circulation, mixing and gluing system for hot-melting adhesive.

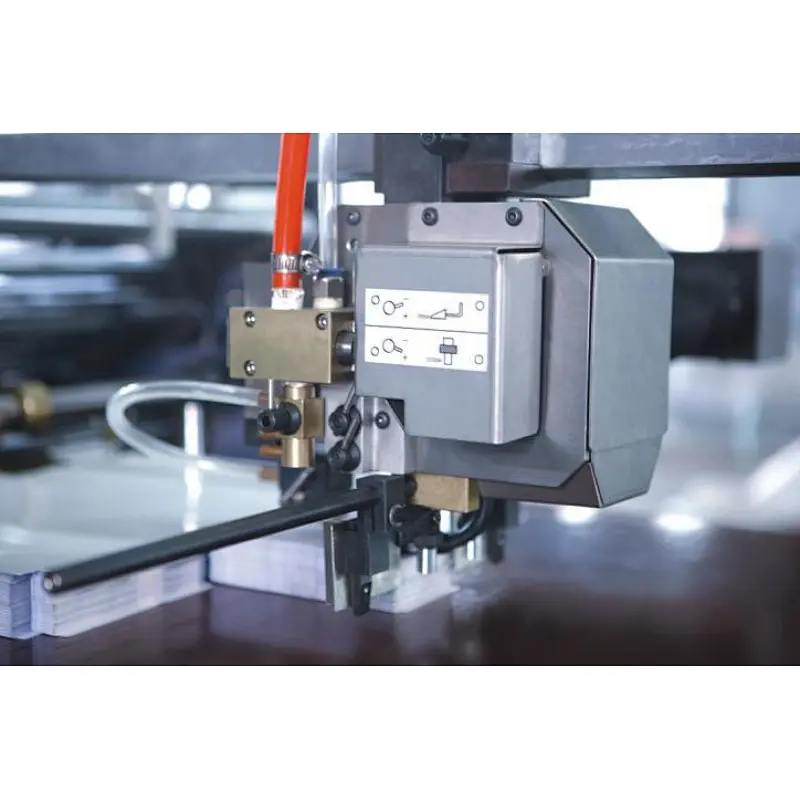

3. Hot-melt adhesives paper automatic feeding and cutting, and finish sticking the four corners of inside cardboard at one process.
4. The vacuum suction fan under the conveyer belt can keep the glued paper from deviating.

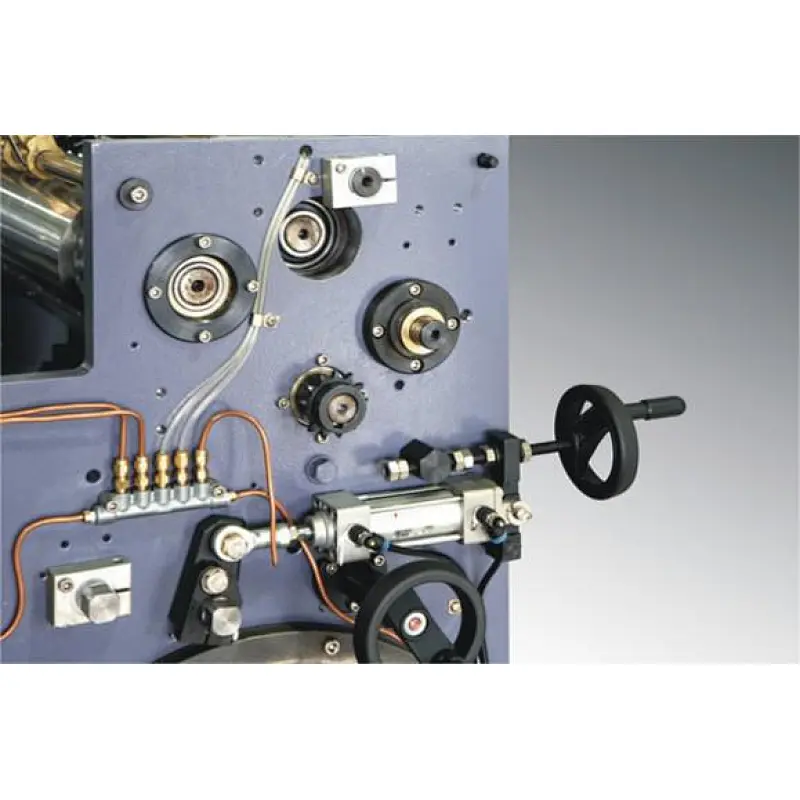

5. The glued paper and cardboard inner box employ hydraulic pneumatic rectifying device to spot correctly. The spotting error is ±0.25mm.

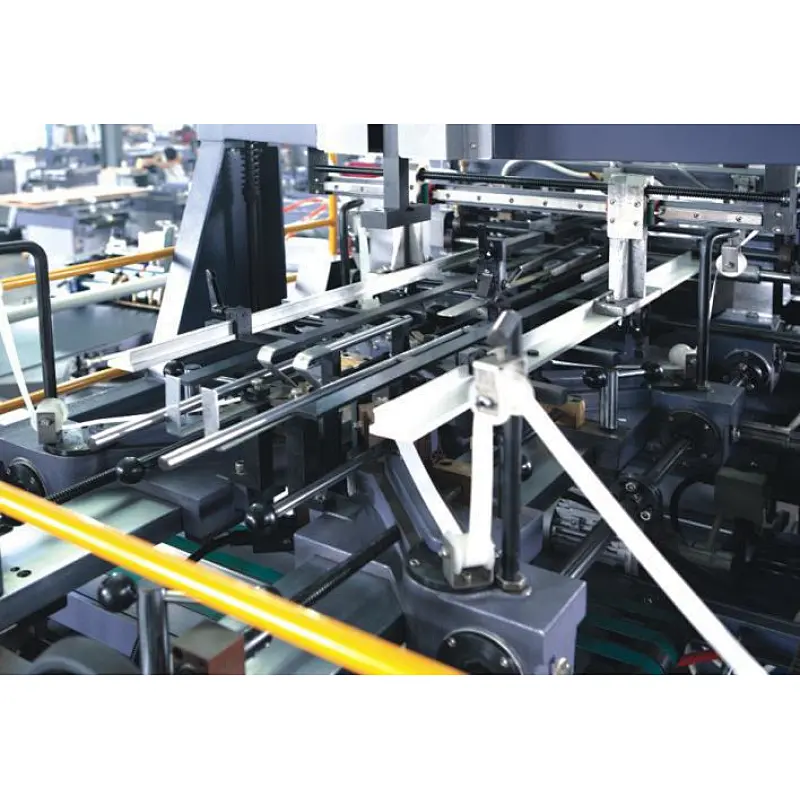

6. The box-forming unit can automatically collect boxes and deliver them to the forming unit according to the boxes conveyed on the conveyer belt.
7. The box-forming unit can continually delivery boxes, wrap sides, fold ears and paper sides and form in one process.
8. The whole machine employs PLC, photoelectric detector system and touch screen man-machine interface to automatically form boxes in one process.
9. It can automatically diagnose the malfunctions and alarm accordingly.
Main specifications:
Paper size(A×B) | Amin 95mm Amax 610mm Bmin 180mm Bmax 850mm |
Paper thickness | 100-200g/m2 |
Cardboard thickness(T) | 1~3mm |
Finished product(box) size(W×L×H) | W min: 40mm W max: 400mm L min: 100mm L max: 600mm H min: 15mm H max: 150mm |
Folded paper size | Rmin 7mm Rmax 35mm |
Precision | ±0.25mm |
Production speed | ≦35sheets/min |
Motor power | 10.35kw/380v 3phase |
Heater power | 6kw |
Machine weight | 5800kg |
Machine dimension (L×W×H) | L6600×W4100×H 3250m |
Notice:
1.The max and mini sizes of the boxes are subjected to those of the paper and the quality of the paper.
2.The production capacity is 35 boxes per minute. But the speed of the machine depends on the sizes of the boxes

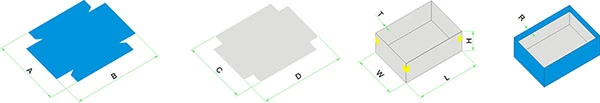

3. The relations of data number:
W+2H-4T≤C(Max) L+2H-4T≤D(Max)
A(Min)≤W+2H+2T+2R≤A(Max) B(Min)≤L+2H+2T+2R≤B(Max)
