Model NO.
KB 6040
Quantity:

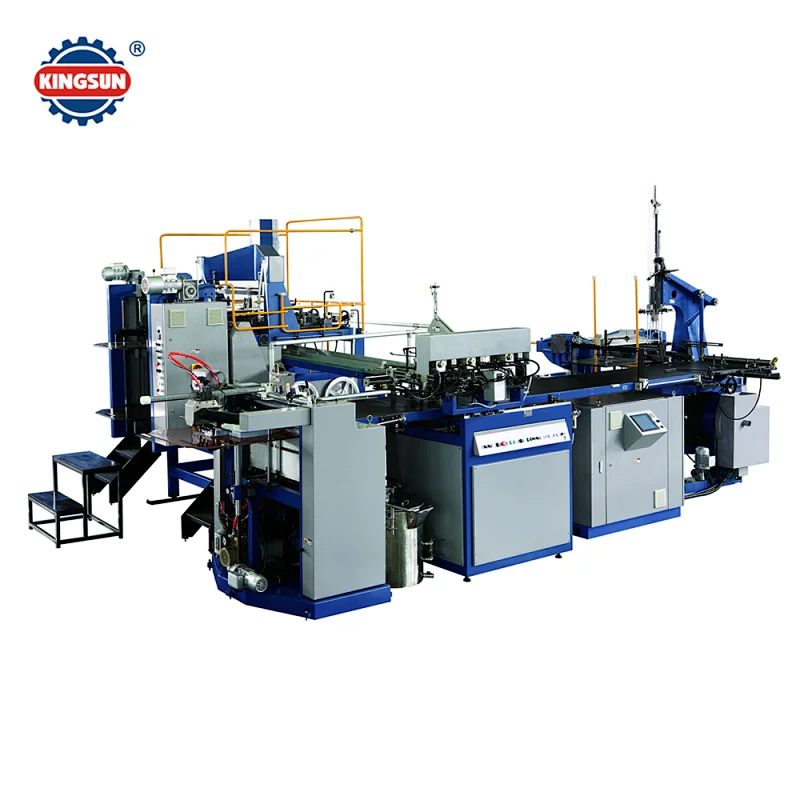

KB6040 New Model Automatic Rigid Box Making Machine

Introduction:

Automatic Rigid Box making machine is a good equipment for making high-grade covered boxesfor its fine design, reliable performances and advanced technologies. It employs PLC, photoelectric tracking system, hydraulic web guiding system, touch screen man-machine interfaceto automatically finish feeding and gluing paper, conveying cardboard, forming and pastingfour angles of cardboard, positioning, gluing and forming box in one time. It is applicable to make high-grade rigid boxes for shoes, shirts, jewelry, gifts, mobile phone etc.

Features:

1. Paper delivered automatically by feeder.

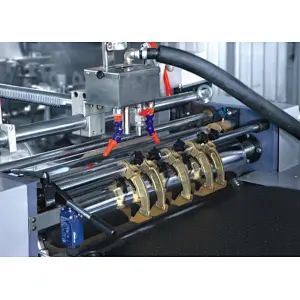

2.Automatic circulation, mixing and gluing system for hot-melting gel. (Optional device: glue viscosity meter)

3. Hot-melting adhesives paper- gluing automatic conveying, slitter, and finish pasting the cardboard inner box’s four angles in one process.

4. The vacuum fan under the conveyer belt can keep the glued paper from deviating.

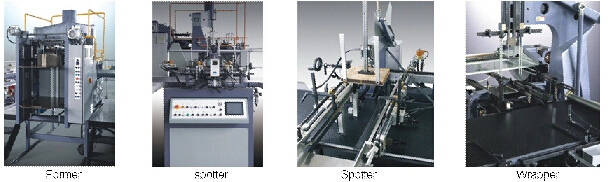

5. The glued paper and cardboard inner box employ hydraulic web guiding device to spot correctly6. The box-forming unit can automatically collect boxes and deliver them to the forming unit according to the boxes conveyed on the conveyer belt.

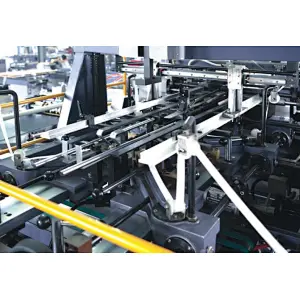

7. The box-forming unit can continually delivery boxes, wrap sides, fold ears and paper sides and form in one process.

8. The whole machine employs PLC, photoelectric tracking system and touch screen man-machine interface to form boxes automatically in one process.

9. It can automatically diagnose the troubles and alarm accordingly.


Main specifications:

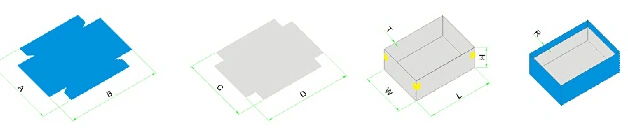

Paper size(A×B)

Amin 95mm   Amax 610mm

Bmin 180mm  Bmax 850mm

Paper thickness

100-200g/m2

Cardboard thickness(T)

1~3mm

Finished product(box) size(W×L×H)

W min: 40mm  W max:   400mm

L min: 100mm  L max:   600mm

H min: 15mm   H max:   150mm

Folded paper size

Rmin 7mm    Rmax 35mm

Precision

±0.25mm

Production speed

≦35sheets/min

Motor power

10.35kw/380v 3phase

Heater power

6kw

Machine weight

5800kg

Machine dimension (L×W×H)

L6600×W4100×H 3250m

Remark:

1. The max and mini sizes of the boxes are subjected to those of the paper and the quality of the paper.

2. The production capacity is 35 boxes per minute. But the speed of the machine depends on the sizes of the boxes.

3. Customizable fold into depth is 60mm.

4. We don’t provide air compressor.
