Paper Cup Cover Making Machine
Paper Cup Cover Making Machine
Paper Cup Cover Making Machine
Paper Cup Cover Making Machine
Paper Cup Cover Making Machine

Paper Cup Cover Making Machine

Model NO.
KCF-350G
Quantity:

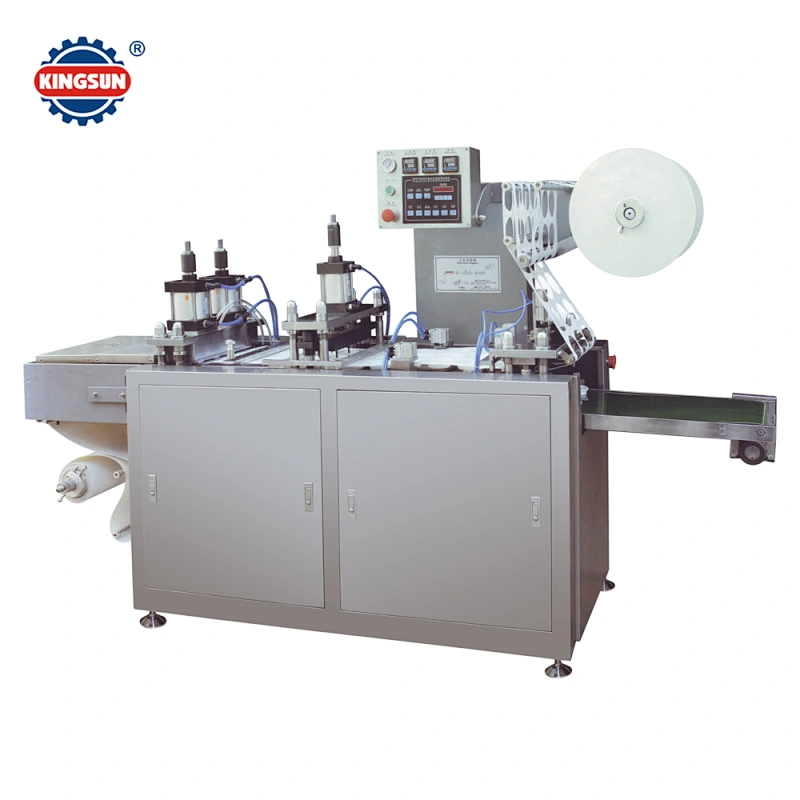

KCF-350G Paper Cup Cover Making Machine

This plastic cover forming machine is mainly for making plastic cover for paper cup or other container which need cover.The machine includes forming, punching,cutting at one time process, it is in conformity with the requirement of the GMP/QS. The basic materials can be PS/PE/PVC etc.
This design can save labor, decrease the production time, also adopted with special heating, so can save labor,decrease the production time, also adopted with new special heating, so can save the energy cost, also with new design of cutting so can save the materials.It is well accepted by customers from all around the world.

Features
1. Compact in structure, smooth running,simple for operation, easy for maintenance.
2. Frequency inverter control speed.
3. Moving range adjustable, easy for change the molds.
4. Adopts mechanic-hand for feeding, reliable and synchronized.
5. Mold design according to customer requirement.

Main technical parameter

Model

KCF-350G
Max forming depth

28mm

Blanking frequency

20-45 times/min
Adjustable scope of feed travel

30-120mm

Power of supply

4kw

Air compression

>0.2m³/min

Air pressure

0.4-0.7mpa

Dimensions of packing case for separate

parts

2500*900*1700mm

Weight

650kg
