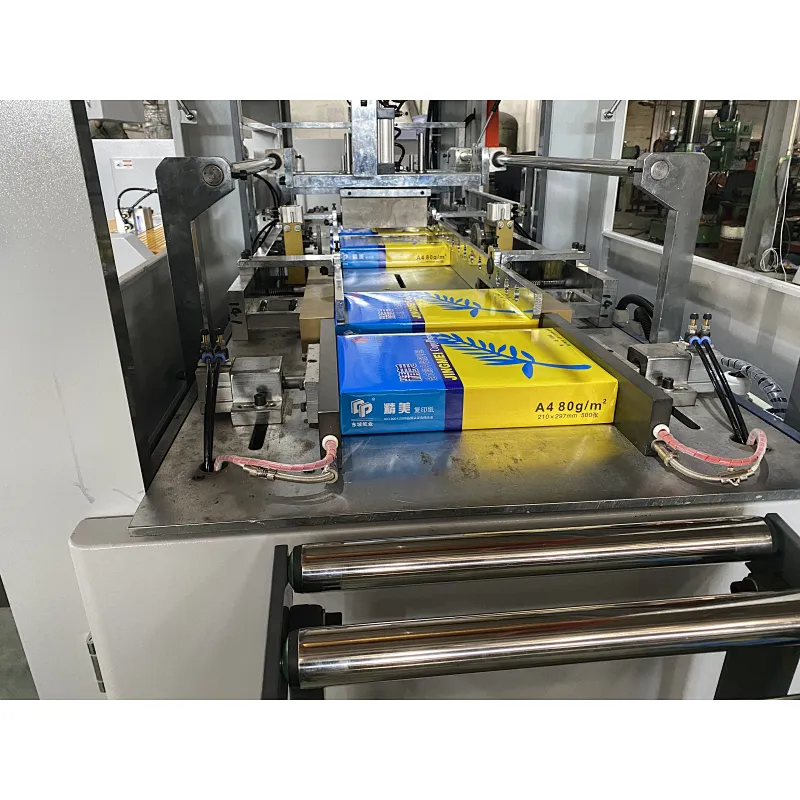

KCP-A4-10 Series Automatic A4 paper cutting & packaging machine
KCP-A4-10 Series Automatic A4 paper cutting & packaging machine
KCP-A4-10 Series Automatic A4 paper cutting & packaging machine
KCP-A4-10 Series Automatic A4 paper cutting & packaging machine
KCP-A4-10 Series Automatic A4 paper cutting & packaging machine
KCP-A4-10 Series Automatic A4 paper cutting & packaging machine
KCP-A4-10 Series Automatic A4 paper cutting & packaging machine
KCP-A4-10 Series Automatic A4 paper cutting & packaging machine
KCP-A4-10 Series Automatic A4 paper cutting & packaging machine
KCP-A4-10 Series Automatic A4 paper cutting & packaging machine
KCP-A4-10 Series Automatic A4 paper cutting & packaging machine
KCP-A4-10 Series Automatic A4 paper cutting & packaging machine
KCP-A4-10 Series Automatic A4 paper cutting & packaging machine

KCP-A4-10 Series Automatic A4 paper cutting & packaging machine

Model NO.
KCP-A4-10
Quantity:

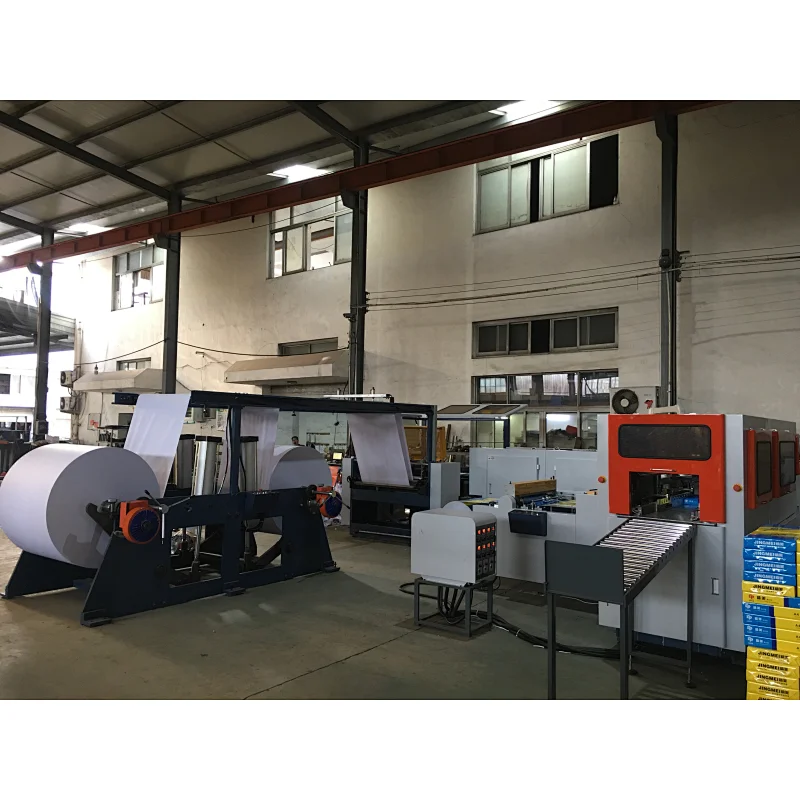

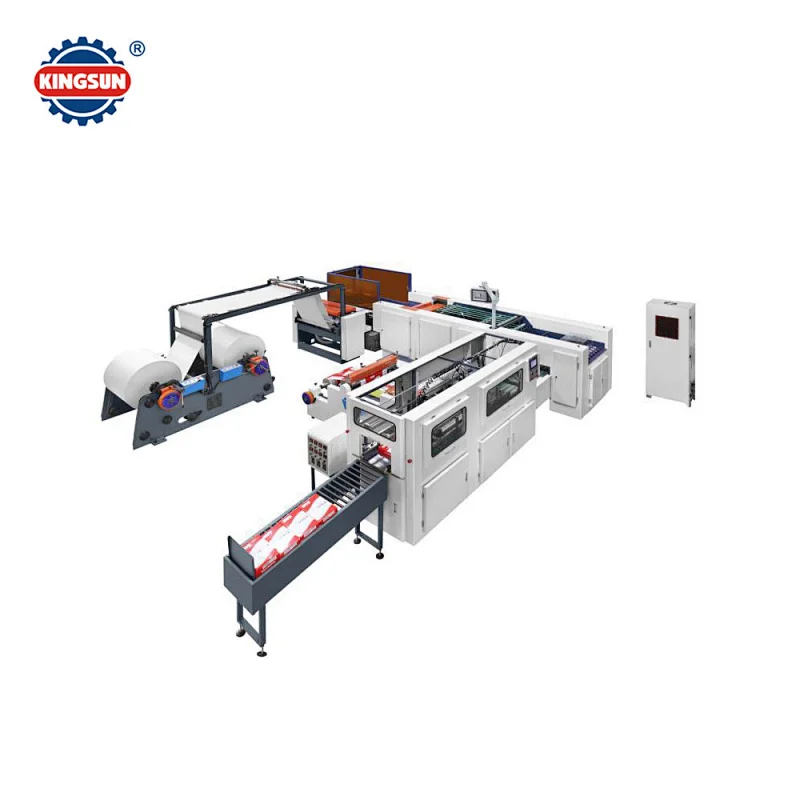

A4 Copy paper cutting and packing machine is new advanced equipment for converting A4 copy paper. With features of high automation and low labor intensity. It is an integration of electric, PLC controlling system and mechanical automation.

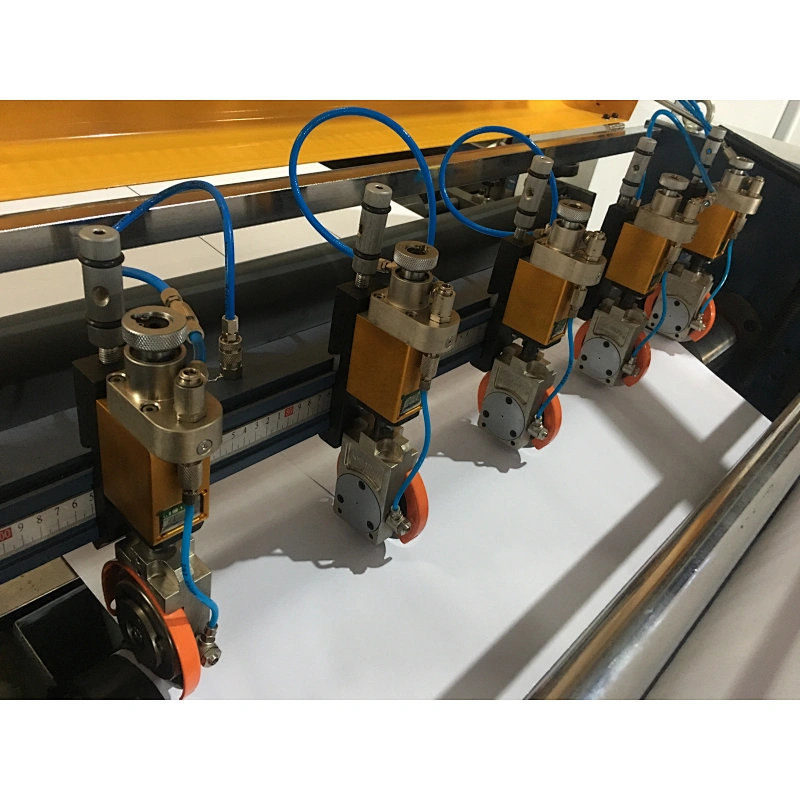

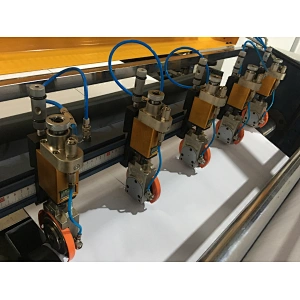

The whole process consists of paper roll unwinding, slitting, sheeting, counting, conveying, reams ejecting, packing and delivery.

Main Structures:

Main technical parameters on sheeter:

Model

KCP-A4(10)

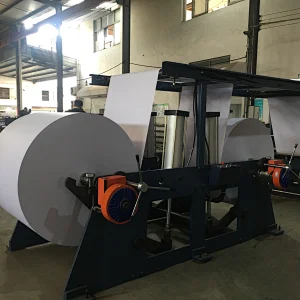

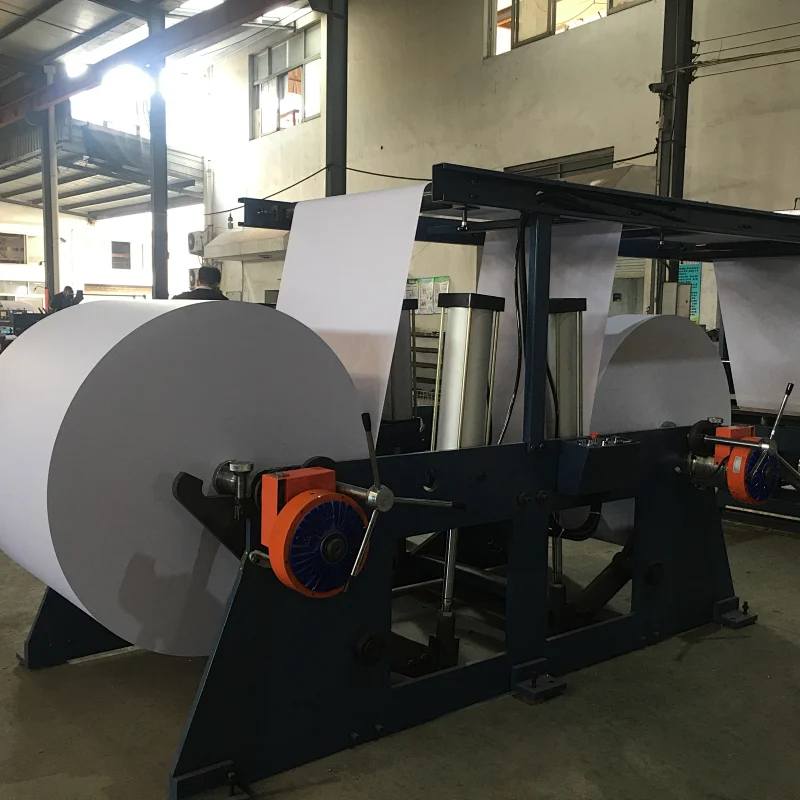

Number of unwinding rolls

2

Number of cuttings

2

Max. gross width of paper roll

846mm

Max. net width of paper roll

840mm

Diameter of paper roll

400-1200mm

Diameter of paper core

3”(76.2mm)

Thickness of paper

60-100gsm

Length of sheeted paper

297mm

Quantity per ream paper

0-500pcs

Max. height of ream paper

65mm

Working speed of paper feeding

250--300m/min

Working speed of paper cutting

1010 times/min

Discharging speed of ream paper

6- 8 reams/min

Max. knife loading

400gsm (4 x 100)

Precision of paper cutting

±0.2mm

Requirements on paper roll

1.Stable Speed

2. No breakage

3. Qualified paper

Transmission

AC Frequency conversion, stepless speed regulated

Main power source

380V/50Hz 3phase 4 wires

Control voltage

220V AC/24V DC

Total Power

10KW

Machine dimensions

6.8 x 6.6 x 1.8M (L x W x H)

Machine weight

7T

Main technical parameters on wrapper:

Production Speed

10- 12reams/min

Motor power

5.1KW

Gluing power

3.7KW

Compressed air

0.6- 0.8 Mpa

Size of overwrapping paper

550- 560mm x 386mm

Machine dimensions

3.4 x 3.3 x 1.6M (L x W x H)

Machine weight

2.5T
