High Speed Roll Paper And Film Rewinding Machine
High Speed Roll Paper And Film Rewinding Machine

High Speed Roll Paper And Film Rewinding Machine

Model NO.
KFJ-800C
Minimum order quantity:
1 set
Quantity:

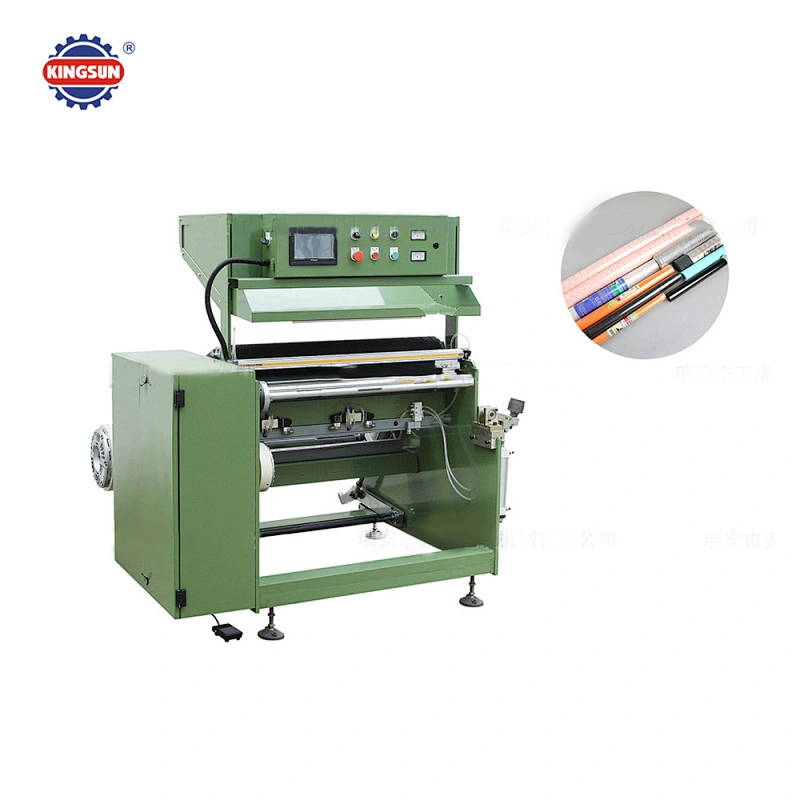

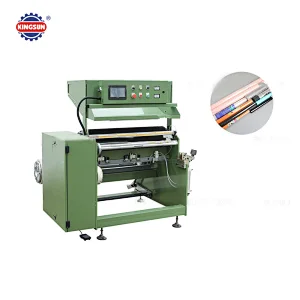

KFJ-800C High Speed Roll Paper And Film Rewinding Machine

Feature

1. KFJ-800C film rewinding machine is specialized in rewind all kinds of roll paper, OPP film, holographic film, bopp film, non-woven, aluminum laminated films to small roll. Such as gift paper, self- adhesive ,table covers, wallpaper.

2. Final roll can be with hard paper core and soft core and non-core.

3. PLC controlled, HMI and import servo motor sets length, automatic tension, easy to operate.

4. It can equip with roll wrapping machine to complete a whole production line.

Main technical parameter

Machine model

KFJ-800C

Max unwinding diameter

650mm

Max width

762mm

Max rewinding outer diameter

150mm

Max unwinding outer diameter

650mm

Unwinding inner diameter

3inch

Max machine speed

160m/min

Rewinding speed

If final length is for 5m, with paper core. The max speed is 9 rolls/min(Coreless and soft core, speed will be faster) , It’s according to the material and worker’s speed). If you produce the products with coreless and soft paper core, you don’t need change any parts of machine.

Tolerance

±0.1%

Supply power

3 Phase 380V 50HZ 5KW( Can be custom made)

Weight

About 600kg
