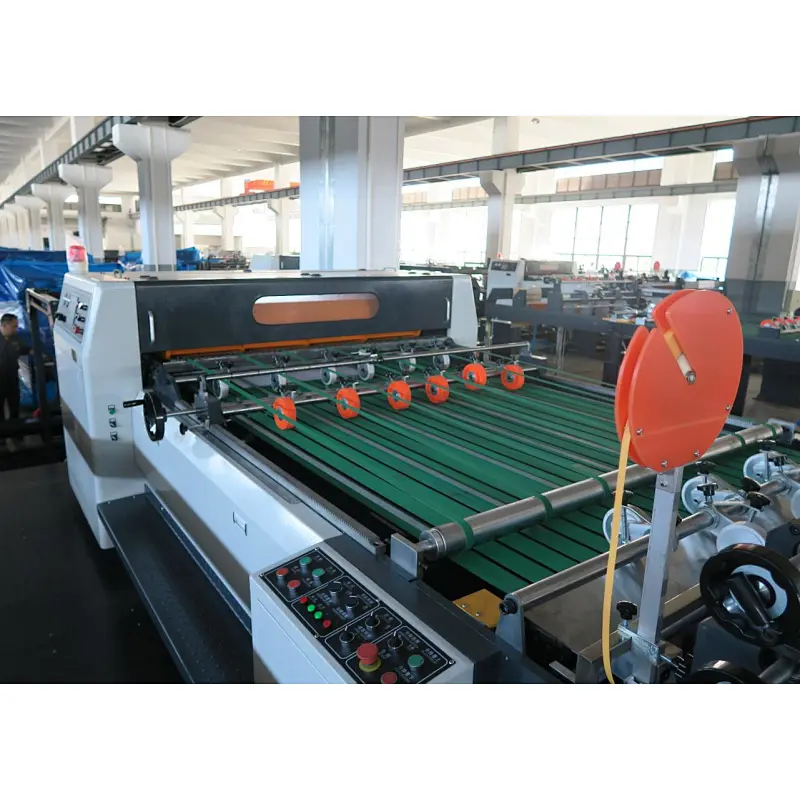

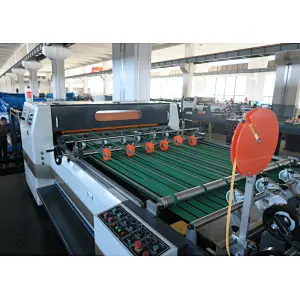

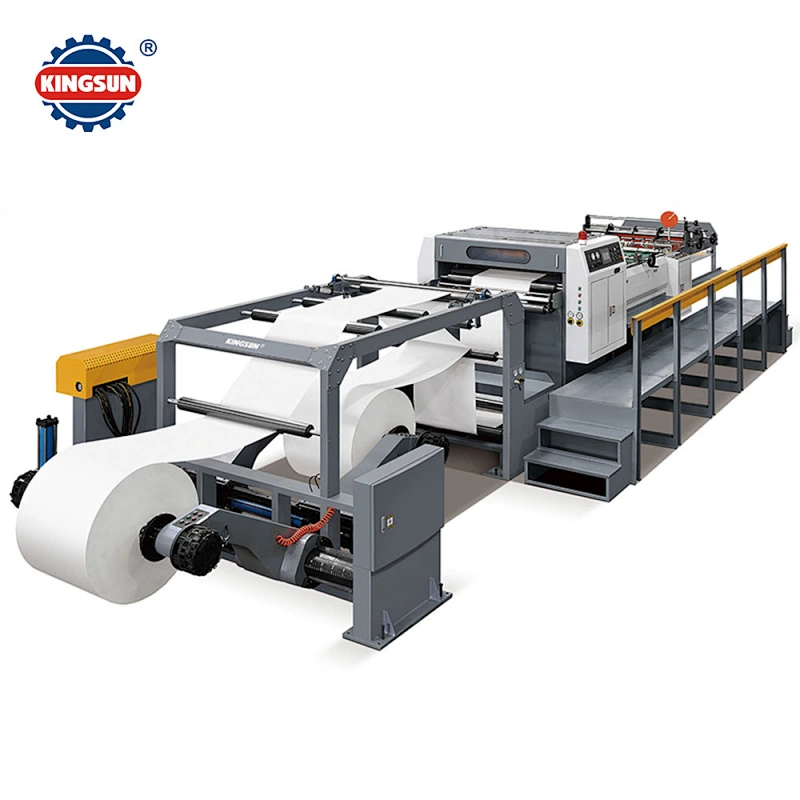

KS-1400/1700/1900B series KINGSUN servo control high speed paper roll to sheet cutting machine

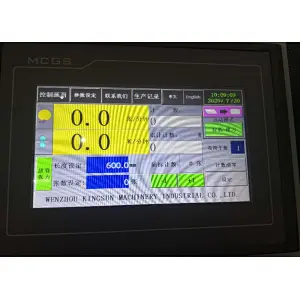

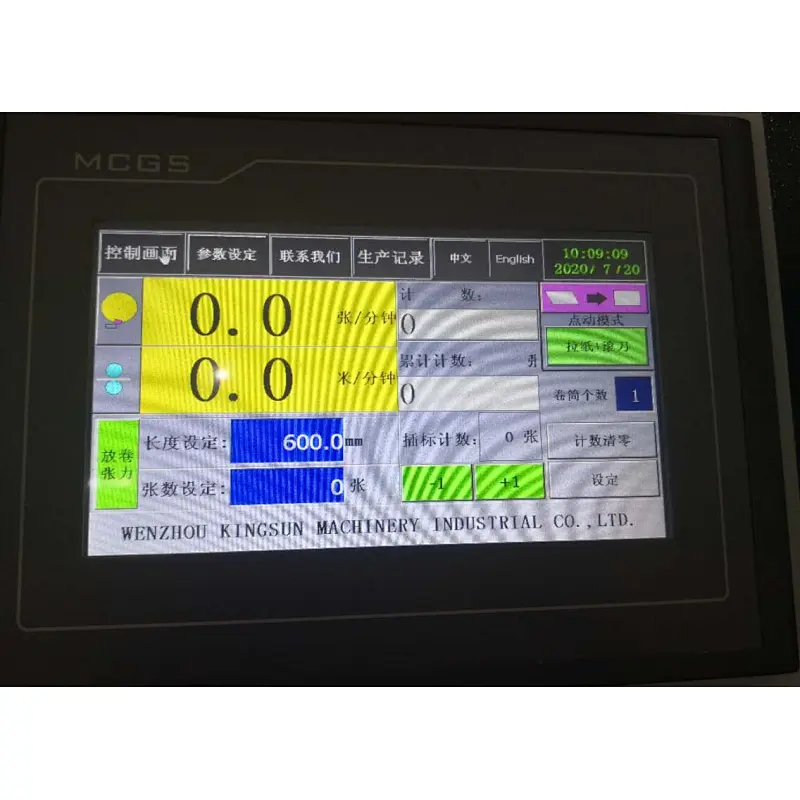

This KS-B series servo control paper roll to sheet cutting machine applies the advanced technology of Germany and UK. The computer control system uses KEB,servo motor from Germany and AC transducer from Japan, which is international top brand. The conveyor belt applies NITTA from Japan. The pneumatic vibrator adopts FINDEVA from Switzerland. The electrical system choose SCHNEIDER & OMRON, these high quality components can guarantee the paper sheeting cutting fast and very reliable. Germany made precise bearing and rotary cutting knife assure the high sheet cutting precision. The touch screen is simple and convenient for operation. The anti-curve system assures the paper flat and smooth to delivery. This sheeter machine is for high capacity paper converting which is widely use in the paper mill , printing and packaging industry.This model is most advanced model of paper sheeter in China.
Main specifications:
Model | KS-1400/1700/1900B |
Type of cutting knife | The up knife is rotary cut and the down knife is fixed |
Thickness of paper | 60-550gsm |
Cutting precision | The cutting length every 1000mm:+/-0.5mm |
Max cutting speed | 350cuts/min |
Gross weight | 11,000kgs/13,000kgs/15,000kgs |
Pile height | Max 1300mm |
Max. cutting linear speed | 350m/min |
Cutting length range | 450~1450mm |
Max. unwinding diameter | 1650mm(65")Max |
Max. paper-cutting width | 1400mm(55")/1700mm(67")/ 1900mm(75") |
Voltage | 380V/220V, 50Hz/60Hz |
We also welcome you to order special made size and specifications.
