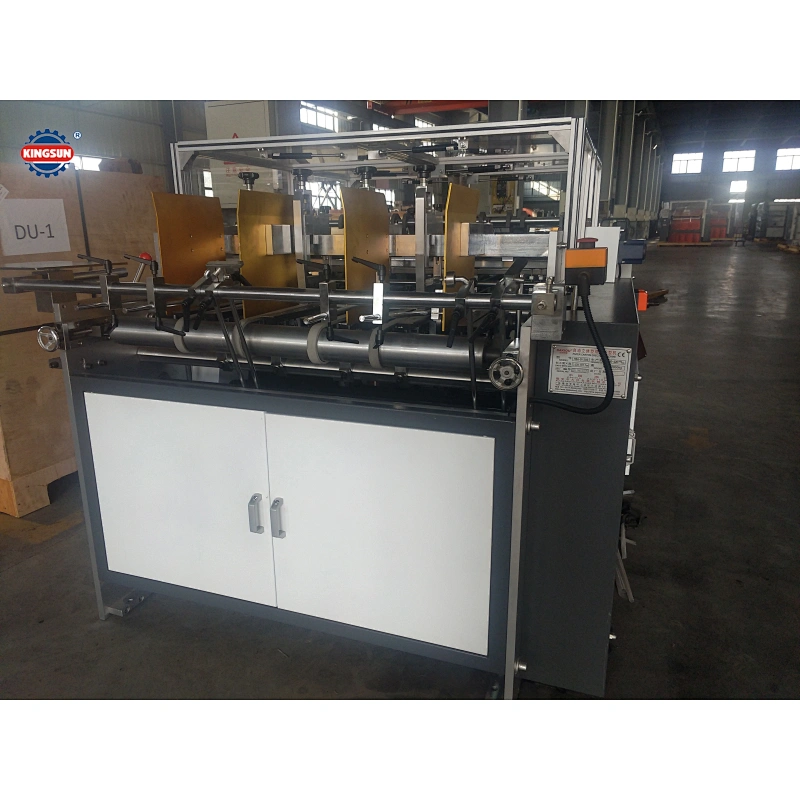

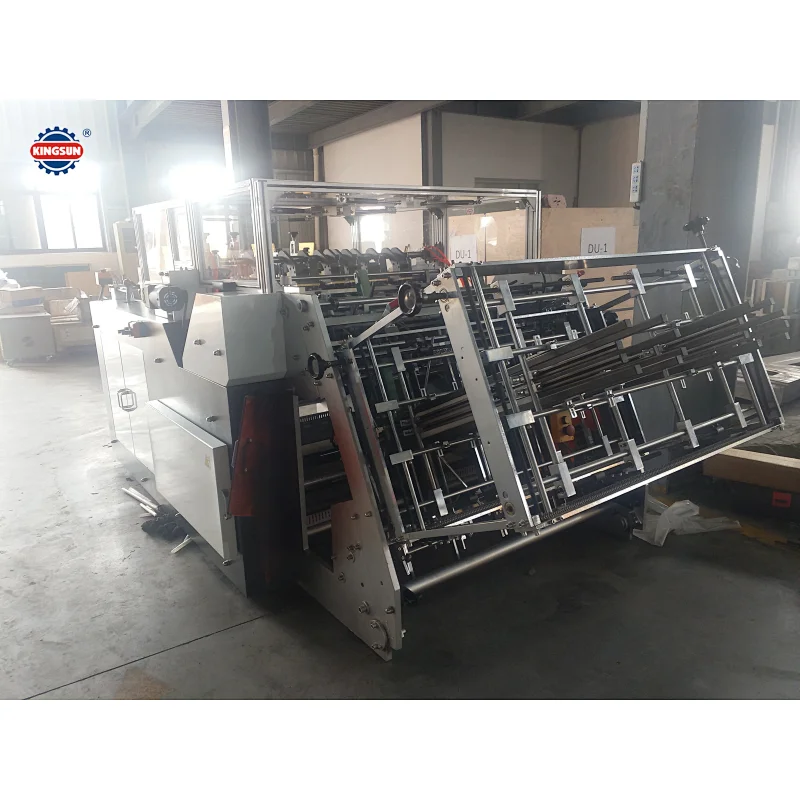

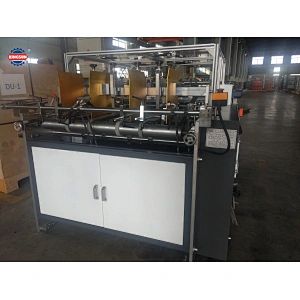

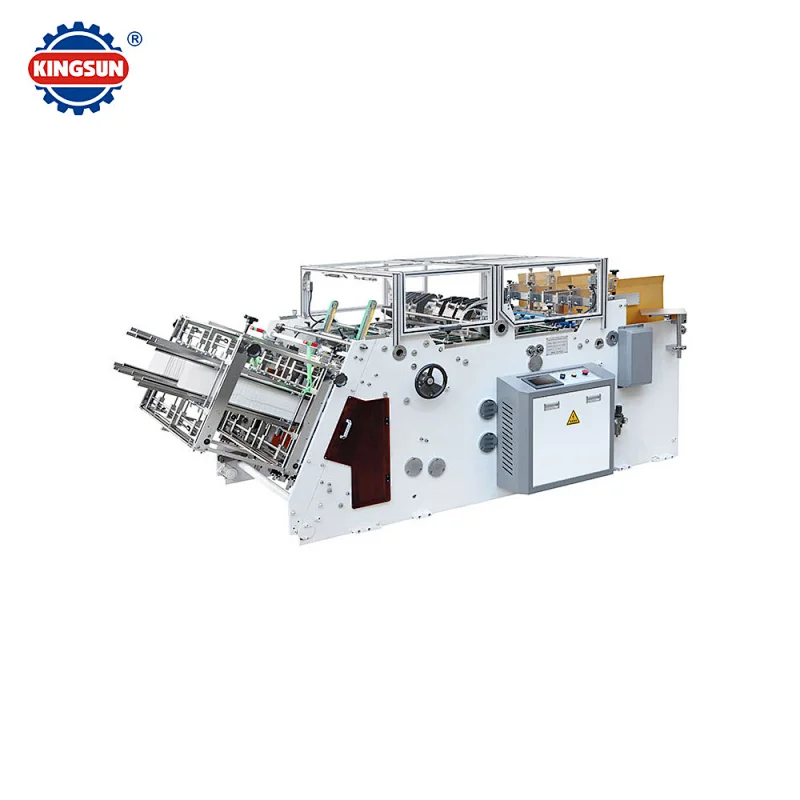

KJ-D1200 Automatic Double Food Paper Box Making Machine
Introdution:
KJ-D1200 is an ideal choice to produce hamburger boxes, french fries box, food tray, lunch box, Chinese noodle box, hot dog box, etc. It adopts micro-computer, PLC, alternating current frequency converter, the vacuum-sucking paper feeding, auto gluing, automatic paper tape counting, and chain drive. All of these main parts and electric control system adopts imported brand to guarantee steady working, precise positioning, smooth running, safety and reliability operation. It can make more than 10 types boxes.
Technical Parameters:
Type | KJ-D1200 |
Production capacity | 80-320pcs/min |
Suitable material | 200-600gsm card paper,PE coated paper, kraft paper, corrugated paper |
Length | L100-450mm,degree:5°-40° |
Width | B100-400mm Height H15-200mm |
Total power | 6.5KW |
Total weight | 2.5T |
Overall dimension | 3600 x 1800 x 1700 mm |
Power source | 380V /220V 50HZ |
Sample:
