KJ-D800 Automatic Paper Carton Erecting Forming Machine
KJ-D800 Automatic Paper Carton Erecting Forming Machine
KJ-D800 Automatic Paper Carton Erecting Forming Machine
KJ-D800 Automatic Paper Carton Erecting Forming Machine
KJ-D800 Automatic Paper Carton Erecting Forming Machine
KJ-D800 Automatic Paper Carton Erecting Forming Machine
KJ-D800 Automatic Paper Carton Erecting Forming Machine
KJ-D800 Automatic Paper Carton Erecting Forming Machine
KJ-D800 Automatic Paper Carton Erecting Forming Machine
KJ-D800 Automatic Paper Carton Erecting Forming Machine
KJ-D800 Automatic Paper Carton Erecting Forming Machine
KJ-D800 Automatic Paper Carton Erecting Forming Machine
KJ-D800 Automatic Paper Carton Erecting Forming Machine

KJ-D800 Automatic Paper Carton Erecting Forming Machine

Model NO.
KJ-D800
Price:
USD 16000.00-18000.00 / set
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
1 set / Week
Country of Origin:
Ningbo
Quantity:
  • Industrial Use:Food
  • Feature:Disposable
  • Paper Type:Paperboard
  • Custom Order:accept
  • Place of Origin:CN;ZHE
  • Printing Handling:embossing
  • Printing Handling:Glossy Lamination
  • Printing Handling:Matt Lamination
  • Printing Handling:stamping
  • Use:food
  • Material Structure:paper
  • Brand Name:Kingsun
  • Model Number:KJ-D800
  • Product name:food box making machine

Description

KJ-D is an ideal choice to produce hamburger boxes, French fries box, food tray, lunch box, Chinese noodle box, hot dog box, etc. It adopts micro-computer, PLC, alternating current frequency converter, the vacuum-sucking paper feeding, auto gluing, automatic paper tape counting, and chain drive. All of these main parts and electric control system adopts imported brand to guarantee steady
A:100-600mm B:100-450mm C:80-220mm working, precise positioning, smooth running, safety and reliability operation It can make more than 10 types boxes. If the box is not in blow list, please show us your sample.




Introduction:
Automatic take away food box machine, or hamburger box making machine is molding equipment specialized in producing various paper products, which can produce hamburger box, square box, potato chipper, food box(portable outside),and other boxes made by paperboard and corrugated paper.

Working principle:
The printed and die-cut cardboard feed from paper feeder, brought out to the conveying chain, and then sent to die, in the process card paper is coated with a water-based glue, glue position can be adjusted, the amount of coating glue can be adjusted in production without stopping, cardboard film coating adhesive to the collector after forming, automatic stacking and counting, and according to a presetting number of stack automatic mark without stopping the machine.

Features:
1. The machine is with stable quality, high efficiency, speed up to 180PCS/MIN
2. Multi-functional :In the same machine, only need to change a touch can create different specifications of the boxes, boxes, hamburger boxes, boat shaped box, food packing box, carton products such as chicken
3. The machine uses the water-based glue device, can achieve high efficiency, high accuracy. Water based adhesive is a water-soluble adhesive glue for food grade (high security).
4. This machine is mostly used high quality seal bearing, long service life, and good stability.
5. The machine uses the PLC intelligent control system, in the paper, no paper state automatic shutdown.
6. The main mold with pine material, the replacement of the mold with high efficiency.
7. Can automatically collect deposits, inventory of finished goods.
8. Synchronous belt drives all adopt high quality, make the machine running almost no error.

Technical Specifications

Paper   Size60*100-480*580mm
Raw MaterialWhiteboard and other similar PE coated paper (200-600g/m2)
Rated Productivity 80-160 pcs/minute
Unfold paper width max 600mm
Total Power2.2KW
Total Weight2000KG
Package Size3000*1200*1600mm

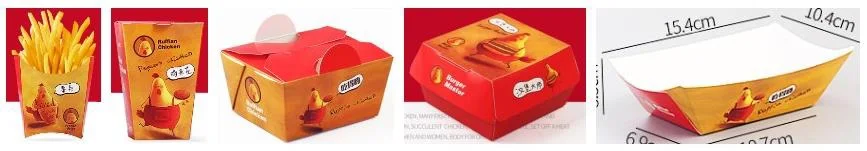

BOX TYPE
_201901231451018.jpg  A:100-450mm B:100-450mm C:15-200mm

_201901231451019.jpgA:100-400mm B:100-435mm
_2019012314510111.jpgA:100-600mm B:100-450mm C:80-220mm
_2019012314510110.jpgA:100-450mm B:100-450mm C:15-200mm


Degree of box 5Carton material: 200gsm/Corrugated paper : up to 1.5mm P.S. If special size and configuration, we can do it according to your requirement.
