KJQ-E1600 Automatic Paper Core Tube Cutting Machine
KJQ-E1600 Automatic Paper Core Tube Cutting Machine
KJQ-E1600 Automatic Paper Core Tube Cutting Machine
KJQ-E1600 Automatic Paper Core Tube Cutting Machine
KJQ-E1600 Automatic Paper Core Tube Cutting Machine
KJQ-E1600 Automatic Paper Core Tube Cutting Machine
KJQ-E1600 Automatic Paper Core Tube Cutting Machine

KJQ-E1600 Automatic Paper Core Tube Cutting Machine

Model NO.
KJQ-E1600
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
20 set / Month
Country of Origin:
NINGBO OR SHANGHAI
Quantity:

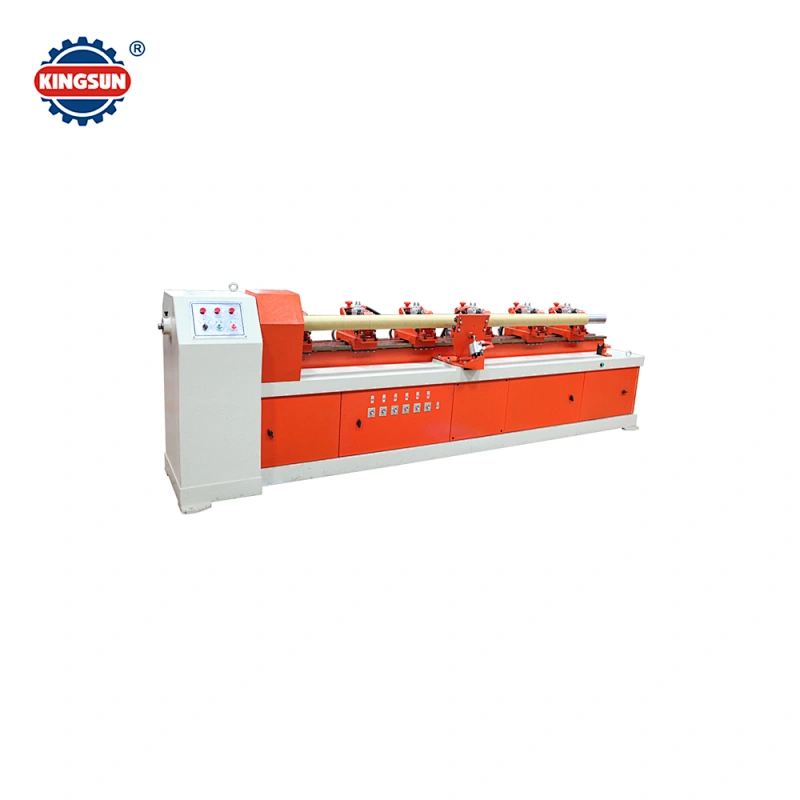

KJQ-E1600 Paper Core Tube Cutting Machine

KJQ-E automatic paper core tube cutting machine or core cutter is new developed from drawing the essences of the same kind machines abroad and blended with our year’s experiences. It integrates many advantages such as high-automatic degree, reasonable structure, convenient for operation and reliable in cutting quality. Especially, the technology has been reached world advanced level. It is the ideal auxiliary equipment for thick paper core winding machine.

Main Specifications:

Inner core diameter: 76mm (152mm optional)

Max core length: 1600mm (changeable)

Sets of cutting blades: 5 sets (changeable)

Wall thickness of tube: 4 -15mm (changeable)

Speed: 30cycles/min

Air pressure: 0.4-0.5Mpa

Out dimension: 2600 x 750 x 1250mm

The size or length can be special made. 2200mm, 2500mm
