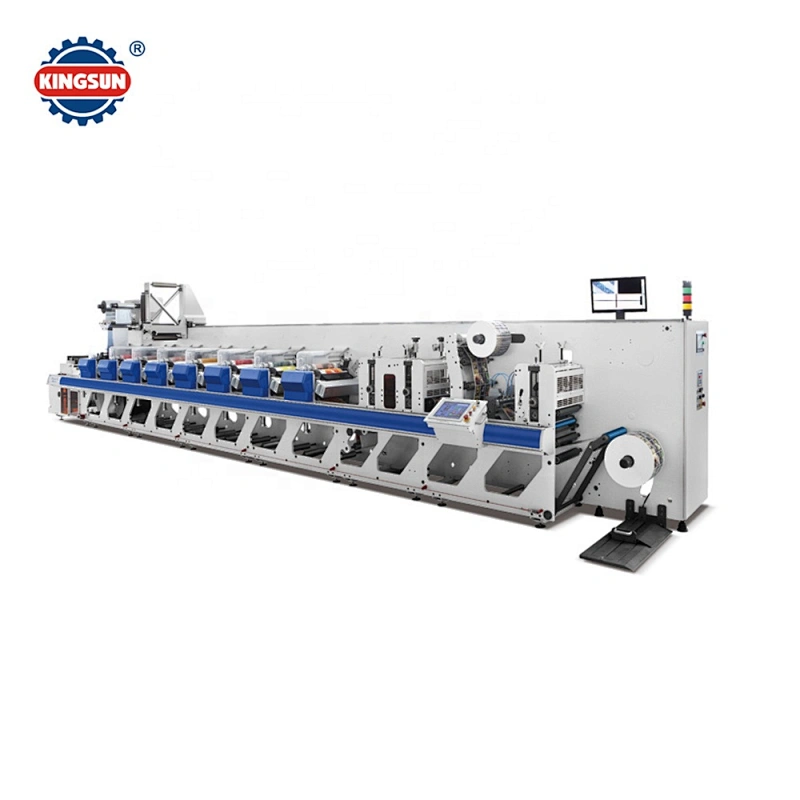

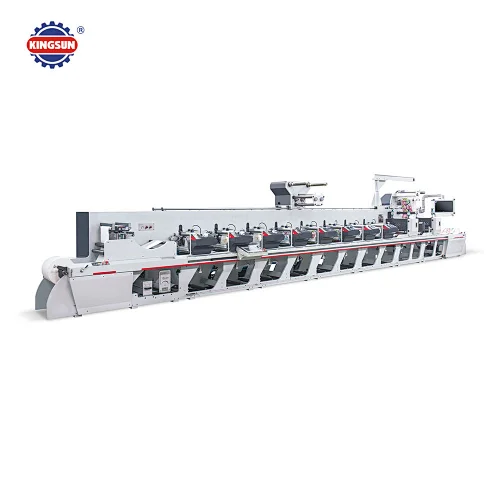

KJR-330 High Speed Flexo Label Printing Machine
1. The whole machine adopts the latest servo control system Rexroth-Bosch from Germany and each printing unit is driven by independent servo motor. There are 23 servo motors in total for 8 color machine which ensure the accurate registration during high speed running.
2. The printing roller adopts sleeve system which is light, easy, convenient and fast to change. This type of design is largely improve the printing quality and reduce the maintenance
3. Fast and easy Pressure adjustment of printing or ink transferring: Printing roller run by bearer, it’s not necessary to adjust the pressure when change the roller, or at most fine adjust for special job.
4. Anvil roller equips with water chiller, it’s good for film material as well.
Main specifications:
Model | KJR-330 |
Max printing speed | 180m/min |
Printing color number | 4-12 |
Max. web width | 340mm |
Max. printing width | 330mm |
Max. unwinding diameter | 900mm |
Max. rewinding diameter | 900mm |
Printing repeat length | Z76-190 (241.3-603.25mm) |
Overall dimensions | 10.83X1.56X1.52M |

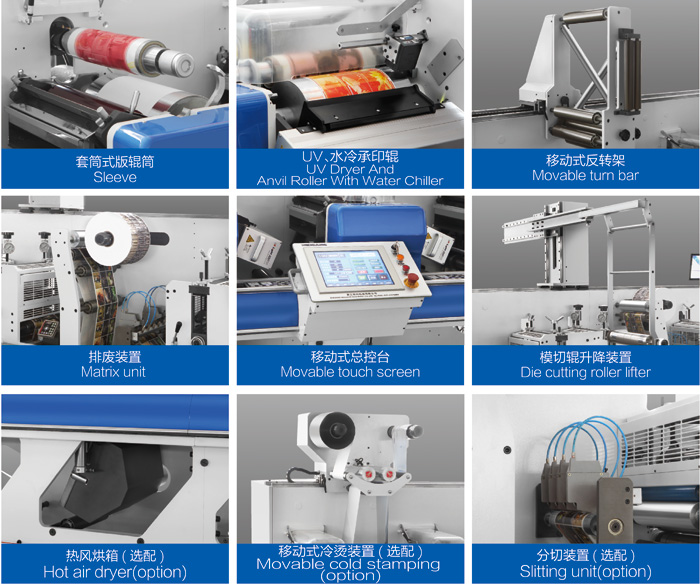

Each unit photos:
Sleeve

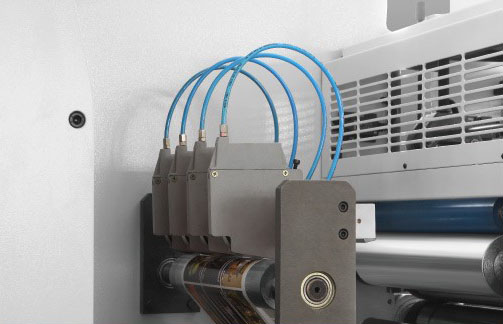

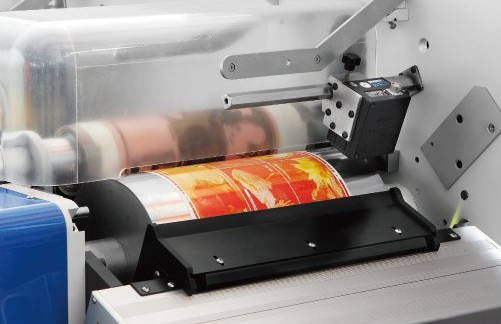

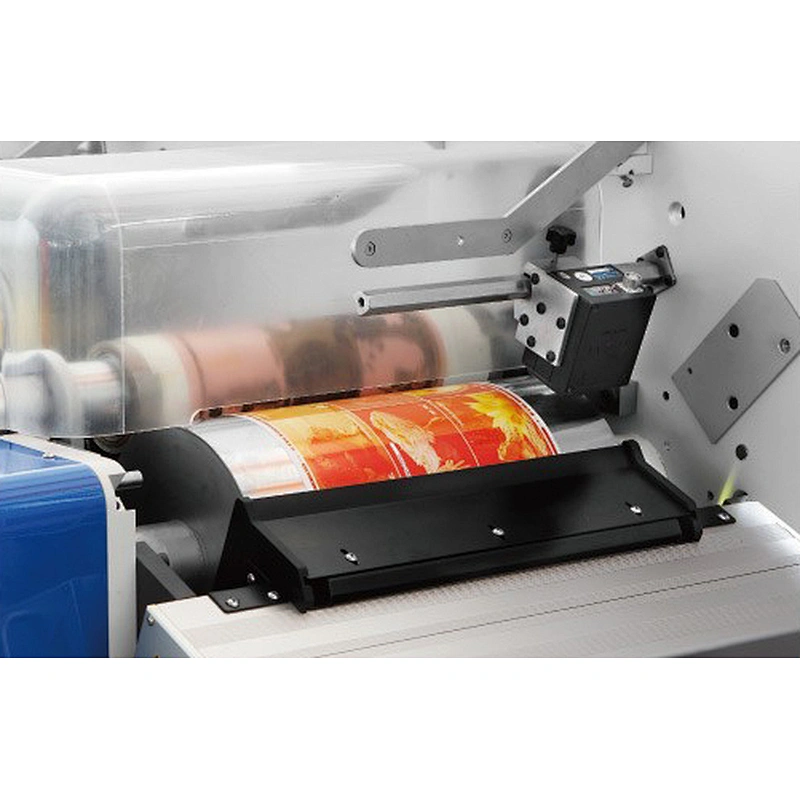

UV dryer and anvil roller with water chiller

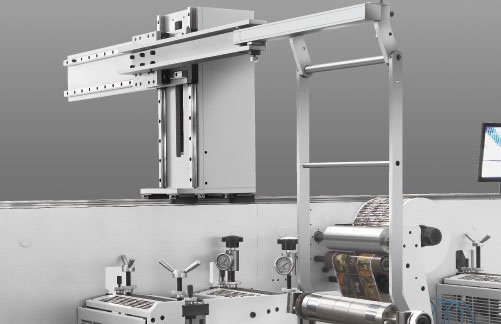

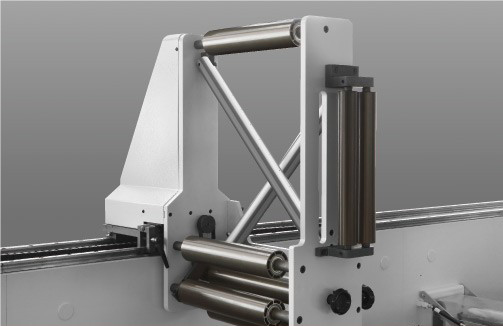

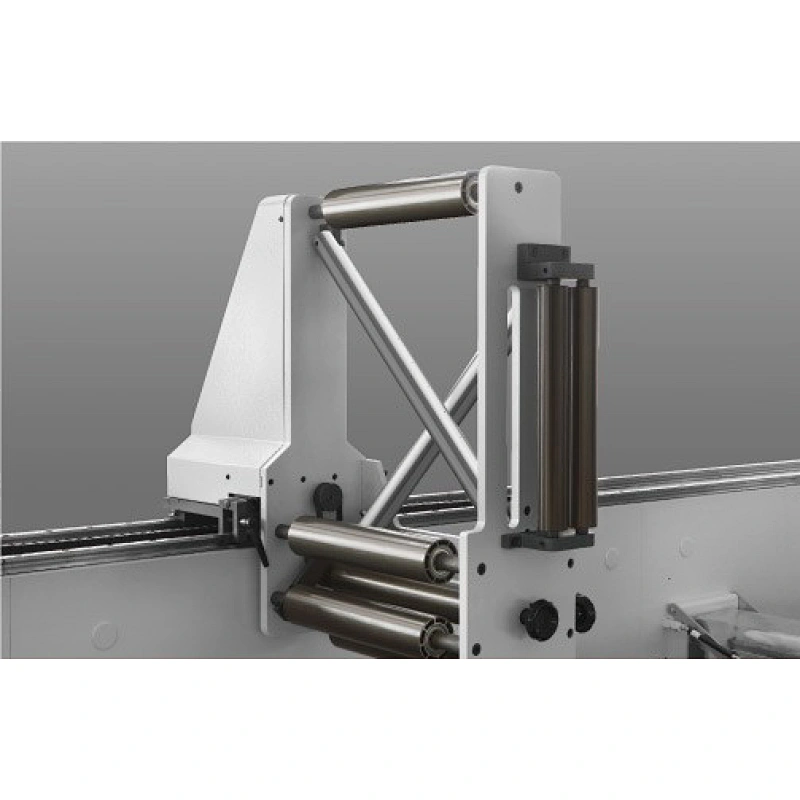

Movable turn bar

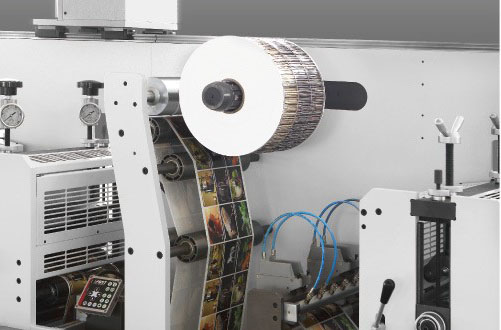

Matrix unit

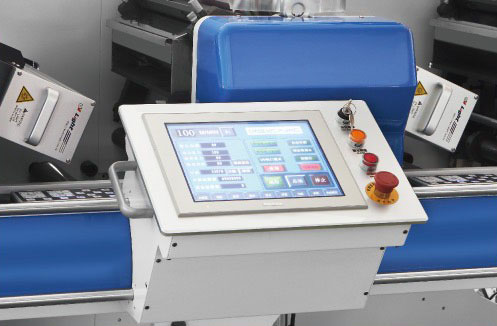

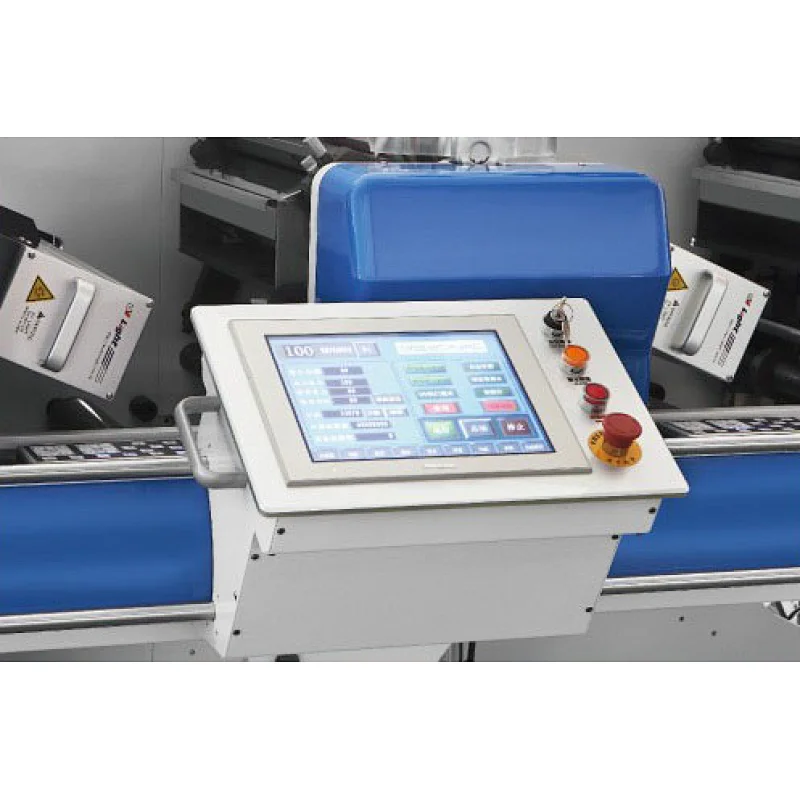

Movable touch screen
Die cutting roller lifter

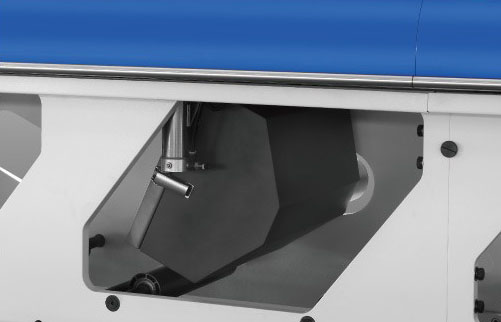

Hot air dryer (option)
Slitting unit(option)

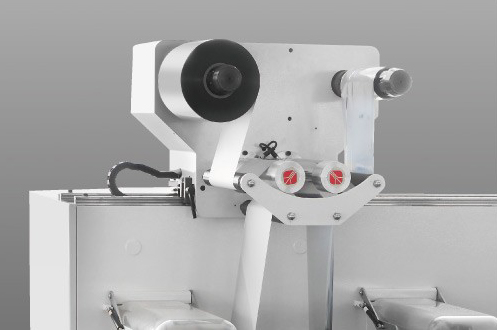

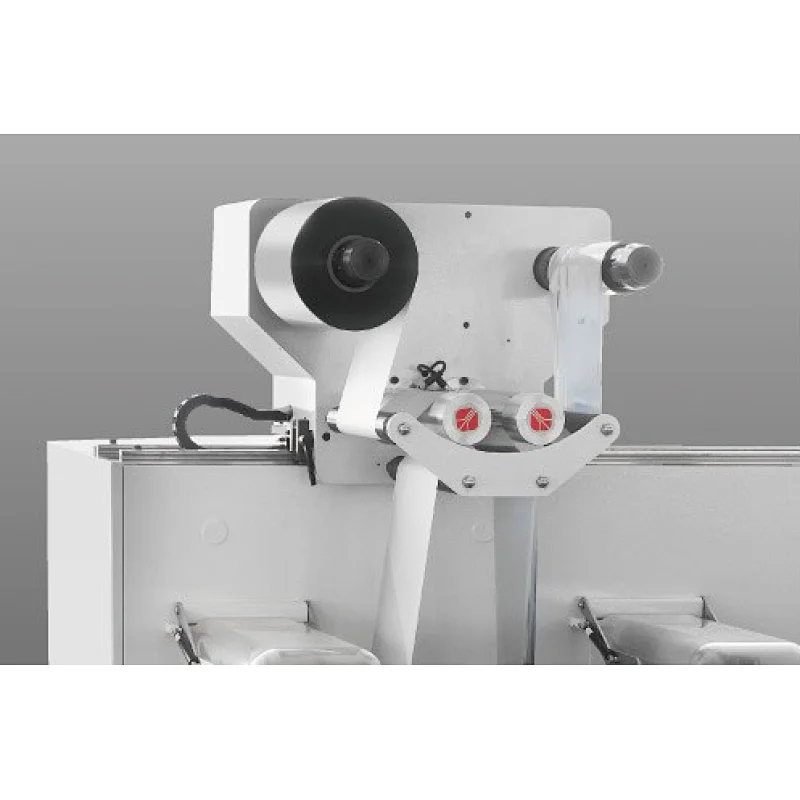

Movable cold stamping(option)
