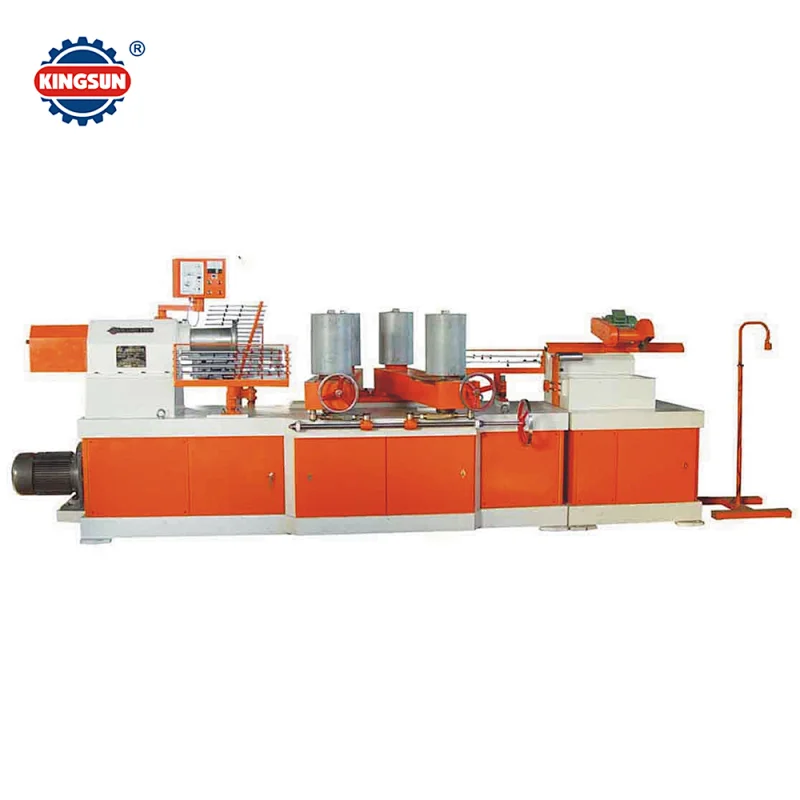

KJT-4D Series Spiral Paper Tube Winding Machine
1.This series spiral paper core or paper tube winding machine adopts the latest model of German and French made paper tube winding machine, it can make paper tube range from 40mm to 250mm, the wall thickness of paper core can reach 15mm even more. We also offer other bigger size till 550mm in diamater.
2.The way of driving system adopts helical bevel gear, it guarantees coiling with features of stable and great force.
3.Latest model of wax lubrication system is adopted, which is similar to Japan-made type, therefore, this can maintain the friction coefficient between the paper core and center-shaft stable, and easier to control the spiral gap of paper core. This can improve the quality of paper core in an all-round way, and resolve the phenomenon of oil stain which through the oil lubricating method, so the bottom paper can keep its original features.
4.Lengthen the main beam(longer than old type),so the force of belt and paper core is well-distributed, it can improve the degree of flat of paper core.
5.Multi-layer paper rack ,it makes the multi-layer paper doesn’t need to pass through the belt, it well in line with the design of main beam and raise the quality of paper core.
6.The main beam is made of casting iron and through aging-treatment, it is durable and no-deformable.
7.The flange shaft designed for adjustable, it cooperate with the taper center-shaft and fine tuning the inner diameter of paper core.
8.The belt cylinder chromate treatment.
9.Adopts German’s high speed low resistance cutting system, the cutting surface of core is much smooth and few waste.
10.The driving system adopts gearshift, it can suitable for different kinds of paper core. If produce the thick wall paper core, you can choose the low speed. If you want to make thin paper core, you can shift to fast speed.
11.The electric control system is in conformity with International Standard, it is easy to maintain and function stable.
12:Overall dimension:5500x1100x1900mm
13. We have exported to more than 20 countries for the spiral paper tube winding machine, successfully running all around the world.
Main Configurations:
Main power 11KW
Core spindle 1set ( size according to buyer requirement)
Belt 2pcs(size custom-built)
Belt tighten device hand wheel device
Paper rack 25 layer paper
Glue tank special pump for gluing delivery.
Glue pipe 25 pcs.
Glue device 25 pcs with tension controller
Paper feeding tension adjusting 25pcs
Surface paper gluing device 1 set
Bottom paper waxing device 1 set
Cutting method saw cutting 1 set
Core length control infrared device. 1 set
Control panel 1 set
Control box 1 set
