Model NO.
KL-1000-2
Minimum order quantity:
1 set
Quantity:

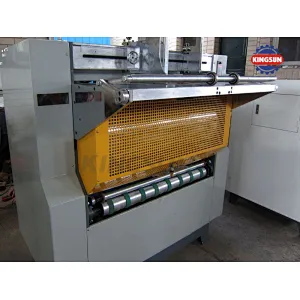

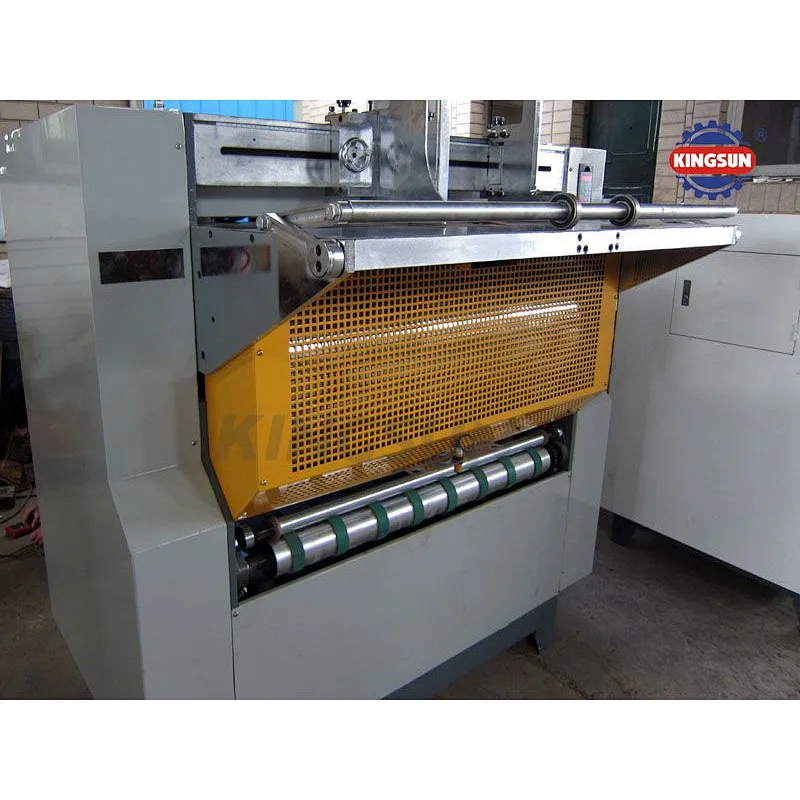

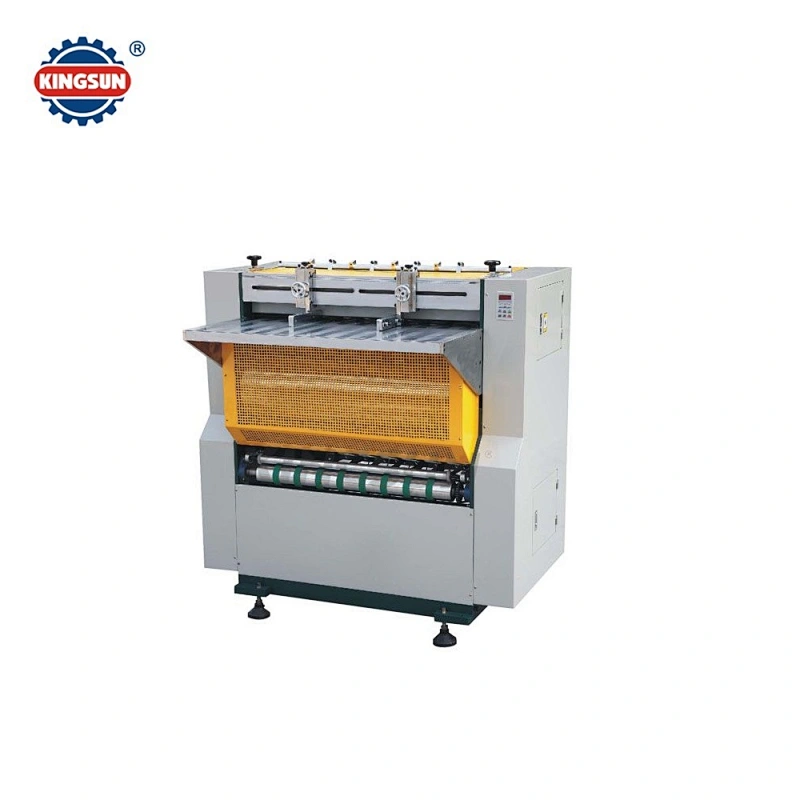

KL-1000-2 Rigid Box Groove Making Machine

This semi-automaticrigid box making machine for rigid box , also we do have the other models for options, this machine is aimed to notch groove V or groove U (optional) onto kinds of materials, like cardboard, MDF board, this grooving machine can greatly improve your quality of rigid box or hard cover, at same time it can save lots of labour cost.

Features:

1. Easy for operation, high efficient.

2. Wide application, it works for cardboard, MDF board, etc.

3. With adjsutable cutting angle (80-140 degree).

4. Perfect finished effect, clean and no dust left.

5. Widely applied to make hard cover, paper box, etc.

Main specifications

Width of cardboard

50-950mm

Length of cardboard

50-950mm

Distance of each groove

0-830mm

Thickness of cardboard

300gsm-3.6mm

Grooving degree

80-140°adjustable

The amount of groove

9 pieces one time

Production speed

10-35m/min

Power

3.7Kw/380V

Dimension

L1500 x W1400 x H1600mm

Weight

1380Kg
