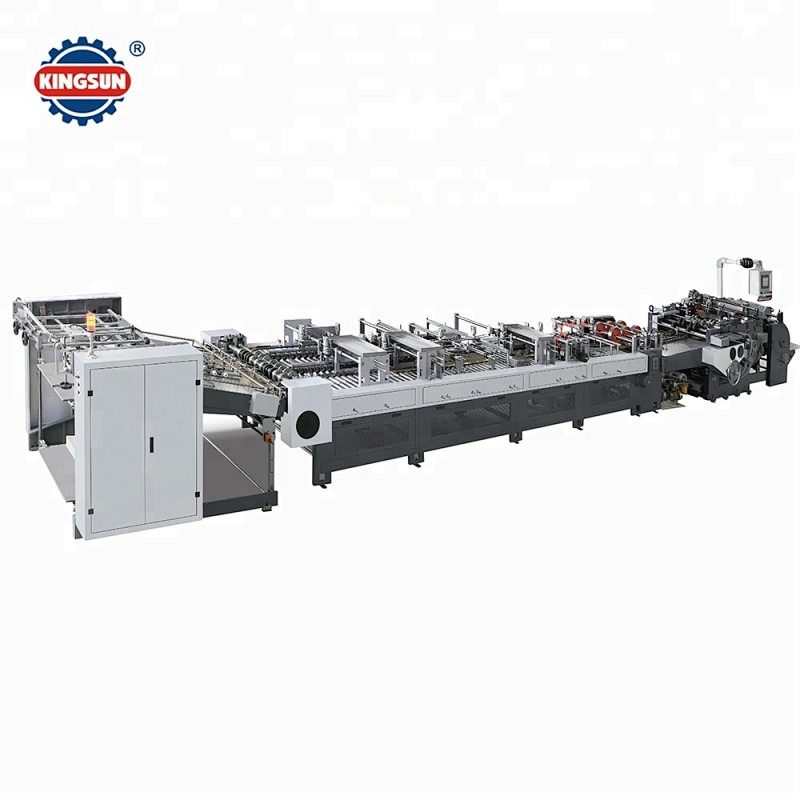

KL-1040 Paper shopping bag making machine for sale
This sheet fed paper shopping bag making machine is widely applied to paper bag making, essential equipment to printing house, and paper converting industries.
Features:
- Sheet-fed, paper can be printed or non-printed.
- Applicable paper: Kraft paper, art paper, duplex paper, white paperboard, gray paperboard (including laminated paper)
- Main processes: automatic paper feeding to side guide for positioning; crease it via rolling device; then one-side gluing, tube folding & forming; bottom folding, horizontally creasing the line, bottom opening, gluing & pressing; finally output of finished bags.
Technical specifications:
Model | KL-1040 | KL-1240 |
Bag width | 180-350mm | 260-450mm |
Bag depth | 70-150mm | 100-180mm |
Bag length | 290-600mm | 380-620mm |
Paper width | 530-1040mm | 620-1240mm |
Paper length | 290-600mm | 380-740mm |
Paper range | Kraft paper: 80-200g art paper + PP laminated: 100-200g white paperboard: 180-250g gray paperboard + PP laminated: 150-250g |
Speed | 40-70pcs/min | 40-75pcs/min |
Glue type | Water glue (hot melt glue system optional for side gluing) |
Total power | 10kw | 13kw |
Weight | 10T | 13T |
Overall dimensions (L x W x H) | 13000 x 1800 x 1700mm | 13300 x 2100 x 1700mm |
