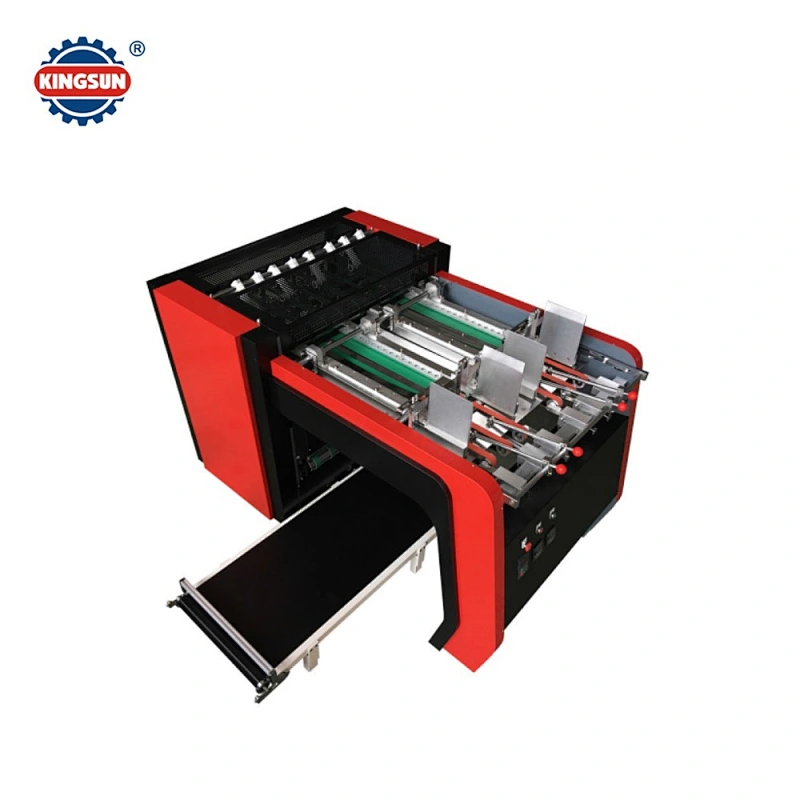

KLZ-930 Automatic Groove Making Machine for Rigid Box

KLZ-930 Automatic Groove Making Machine for Rigid Box

Introduction:

This automatic grooving machine for rigid box making is newly improved, also we do have the other models for options, this machine is aimed to notch groove V or groove U (optional) onto thin cardboard and grey cardboard, etc.

Features:

1. Easy for operation, high efficient.

2. Wide application, it works for thin cardbard, grey cardboard, etc.

3. With adjsutable cutting angle (80-140 degree).

4. Perfect finished effect, clean and no dust left.

5. Widely applied to make hard cover, paper box, etc.

6. With total cutting knives 12pcs.

Main specifications:

• Width of cardboard: 130-850mm
• Length of cardboard: 130-500mm
• Distance of each groove: 0-800mm
• Thickness of cardboard: 0.5-2.5mm.
• Grooving degree:80-140° Adjustable
• Total cutting knives: 12 pcs
• Production speed: 26m/min, i.e.100pcs/min(size:200x200mm)
• Dimensions: L2100 x W1350 x H1400mm
• Weight: 1580Kg
