KMASY-A Series Computer Control High Speed Rotogravure Printing Machine Price
KMASY-A Series Computer Control High Speed Rotogravure Printing Machine Price

KMASY-A Series Computer Control High Speed Rotogravure Printing Machine Price

Model NO.
600 800 1000 1200
Price:
USD 95,000.00-140,000.00 / set
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
10 set / Month
Country of Origin:
Ningbo or Shanghai
Quantity:
  • Type:Rotogravure Printing Machine
  • Place of Origin:CN;ZHE
  • Weight:22 tons
  • Usage:Label Printer
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Model Number:600 800 1000 1200
  • Brand Name:Kingsun
  • Warranty:one year
  • Color & Page:MULTICOLOR
  • Condition:New
  • Gross Power:180kw
  • Dimensions(L*W*H):19000 x 4400x 3700 mm
  • Voltage:380V 50Hz
  • Automatic Grade:Automatic
  • Certification:ISO9001 and CE
  • Usage:plastic film printer
  • Plate Type:Gravure cylinder
  • driven type:electric
  • tension control:automatic
  • operation:touch screen
  • machine color:white or blue
  • motors:5-7 motors
  • shipping:by sea
  • loading:container

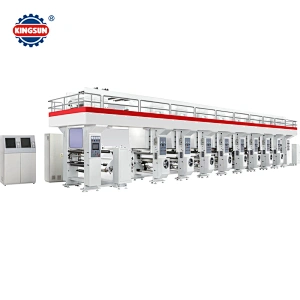

KMASY-A Series Computer Control High Speed Rotogravure Printing Machine Price

KMASY-A computerize color register rotogravure printing machine also called as rotogravure printing equipment is suitable for multi-color continuous rotogravure printing for such roll film materials with excellent printing performance as BOPP film, PET film,PVC shrink film label, PE film, aluminum foil and paper, etc. It is widely use for flexible packaging making such as plastic bag or reel film materials.

Features:

1,Every control module of the automatic color register system is equipped with microprocessor and can correct the deviation of color register quickly and accurately.

2,Interactive interface:touch screen

3,Automatic tension control for unwinding,material in feeding,material out feeding and rewinding.

4,Closed oven and independent heating hot air blowing system, automatic constant temperature system.

5,Pneumatic impressing system and pneumatic doctor blade system

6,Diaphragm-type pneumatic ink auto circulating system

7, Air shaft for unwinding/rewinding material loading

8,Printing linear speed and meter counting display

9,Shaft less printing cylinder loading device,printing cylinder is fixed by shaft-less air chuck.

10,web video camera.

Main technical specifications:

Printing material

PVC 35--60μm

OPP 20--60μm

BOPP 20--60μm

PET 12--60μm

PE 12-60μm

NY 15-50μm

CPP 20-60μm

Printing length

1000mm

Printing width

1000mm

Range of gravure cylinder

120mm—400mm

Max of the machine speed

170m/min

Max of the printing speed

150m/min

Overprint accuracy

±0.12mm

Max DIA of unwinding

and rewinding

800mm

Dia of unwinding and rewinding roll

74mm

Dia of unwinding and rewinding paper roll

ID:76mm OD:96mm

Machine weight

About 22000kg(1000mm 8 color)

Overall dimensions

19300 x 4400 x 3750mm(L x W x h)

Note: we provide all kind of rotogravure printing equipment or printing machine according to customer's requirement, please give us more details of requirement, then we can give you good model. Our company offer total solutions for series flexible packaging converting equipment such as dry laminating machine, solvelentless laminating machine, plastic bag making machine, slitting rewinding machine, doctoring machine etc.

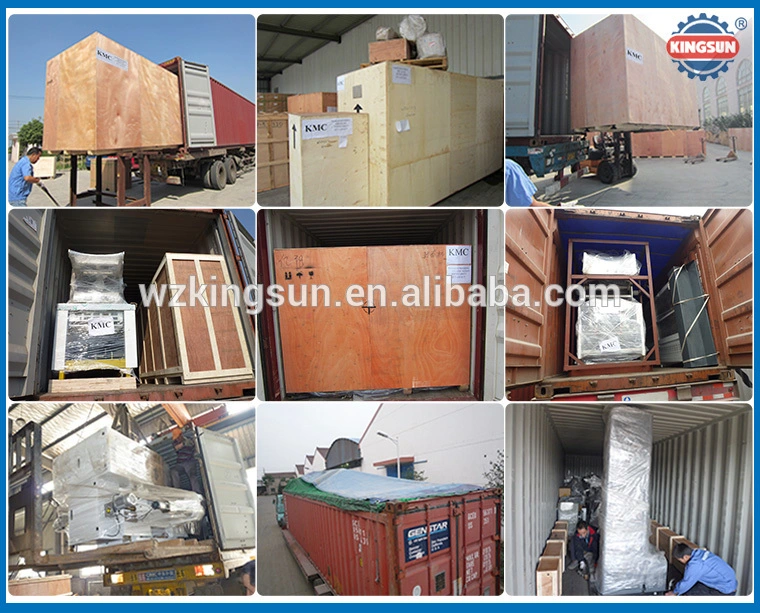

Packaging & Shipping

All the machines are strictly checked and well packed before loading into container.
