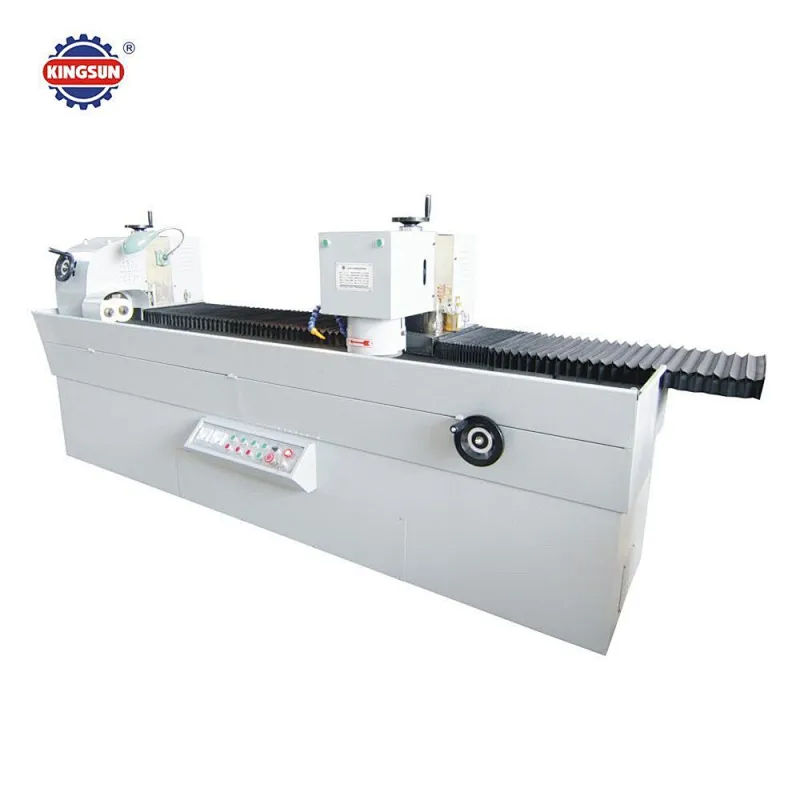

KMSQ-E Series Paper Cutter Knife Sharpening Machine
KMSQ-E Series Paper Cutter Knife Sharpening Machine

KMSQ-E Series Paper Cutter Knife Sharpening Machine

Model NO.
KMSQ-E
Quantity:

KMSQ-E Series paper cutter knife sharpening machine

It is new knife blade sharpening equipment with various functions developed on the basis of other type knife grinder, having the features of sharpening and polishing; the complete functions and reasonable price makes it the top choice for the middle-small sized grinding centers and printing houses.

Main features:
1. The high-frequency quenching contributes to high strength, sound abrasive resistance,
good stability and prolonged service life
2. Automatic self-aligning contributes to the smooth moves of high precision and stability
3. High rigidity in all directions, absorbing loads from up-bottom and left-right direction.

Technical specification:

Knife rack working angle

0 -±90 °

Max knife grinding width

180mm

Grinding speed

1420rpm

Grinding wheel dimension

Φ200 x Φ100 x 100mm

Reciprocating speed

6m/min

Grinding head motor power

0.55w

Polishing motor power

0.55kw

Water pump motor power

0.125kw

Polishing wheel dimension

Φ120 x Φ18 x 12mm

Knife grinding effective length

1700-5000mm

Machine weight

2000-4500kg
