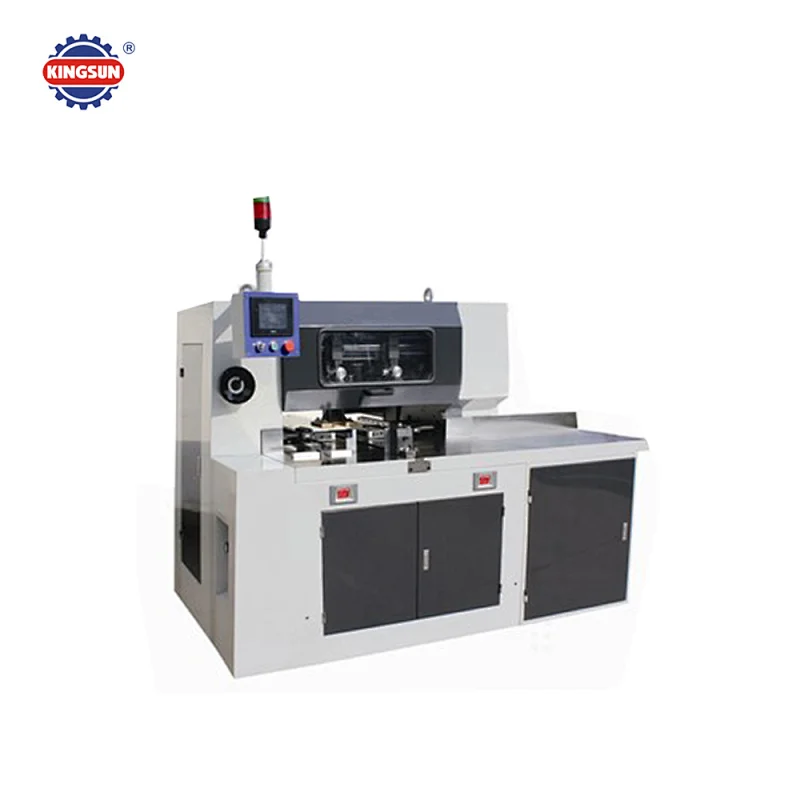

KQS-100C Automatic Three Knife Book Trimming Machine
KQS-100C Automatic Three Knife Book Trimming Machine

KQS-100C Automatic Three Knife Book Trimming Machine

Model NO.
KQS-100C
Minimum order quantity:
1 set
Quantity:

KQS-100C Automatic Three Knife Book Trimming Machine

Product details

1.Fully automatic refueling, no need to manually lubricate. Full computer programmable control, easy to operate and convenient;

2.The hand cutting function and the cutting delay function make the test machine safer and more efficient;

3.The book manipulator makes the book discharge smoothly, will not mess;

4. Cutting books without scratches, no defective products, high precision. Smart book cutting count;

5. The machine is equipped with 2 sets of quick tool changer shells, which makes the tool change quick and convenient and improves efficiency.

6. The machine is equipped with 2 knives, can avoid the status quo when the book back cutting, especially the book binding on horseback is obvious.

Technical parameter

Model

KQS-100C

Max. Cutting Size (mm)

420 * 300

Min. Cutting Size (mm)

80 * 80

Max. Cutting Height mm)

100

Min. Cutting Book Height (mm)

8

Min. Single Cutting Height (mm)

5

Max. Cutting Speed (times/m)

28

Motor Power (kw)

4

Overall Dimension (L*W*H / mm)

2300*2250*1750

Machine Weight (kg)

about 3000
