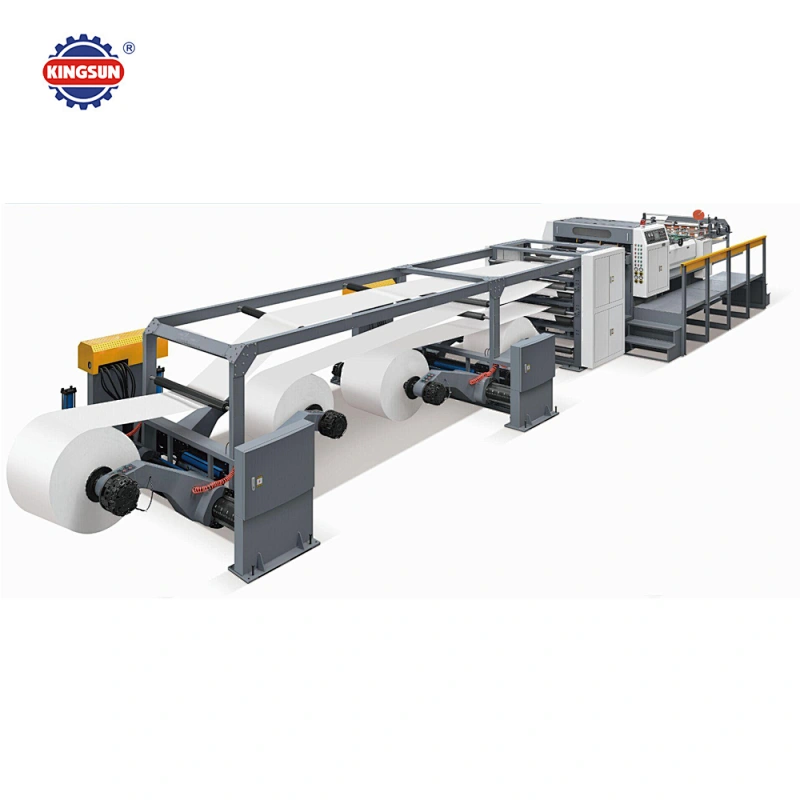

KS-1400A Automatic Roll Paper Sheeter Cutter machine
Servo Control Precision High Speed Paper Sheeter Cutter Machine blends the advanced technique from Germany and our 15 more years manufacturing experiences. The machine with computer control system and AC Servo motor and AC transducer. The conveyor belt uses NITTA from Japan. The pneumatic vibrator chooses FINDEVA from Switzerland. The electrical system adopts SCHNEIDER & OMRON, high quality components makes this sheet sheet cutting machine much more fast and run stalely. Germany precise bearing and cutting knife assure the high cutting precision. The computer touch screen is simple and convenient to operate. The anti-curve rack assures the paper flat and smooth. This machine is for paper converting machine which is very popular for the paper mill and printing packaging industry. It can greatly improve the efficiency for paper roll sheet cutting.

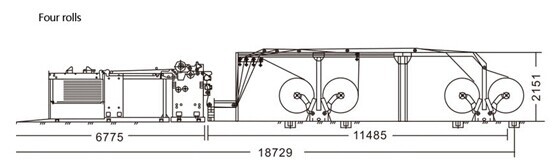

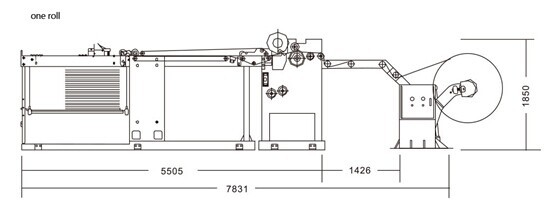

Machine sketch drawing:
Main specifications:
| Model | KS-1400/1700/1900A |
| Sheet knife type | Up knife is rotary cut , down knife is fixed |
| Thickness of paper | 60-550g |
| Cutting precision | The cutting length 1000mm:+-0.5mm |
| Max cutting per min | 300 cuts/min |
| Gross weight | 11000Kg/13000kg/15000kg |
| Pile height | 1650mm Max |
| Max.cutting speed | 300m/min |
| Cutting length | 450-1450mm |
| Max. roll diameter | 1800mm Max |
| Unwinding roll number | Standard roll:1 roll, can be special made as per request |
| Max. cutting width | 1400mm/1700mm/1900mm |

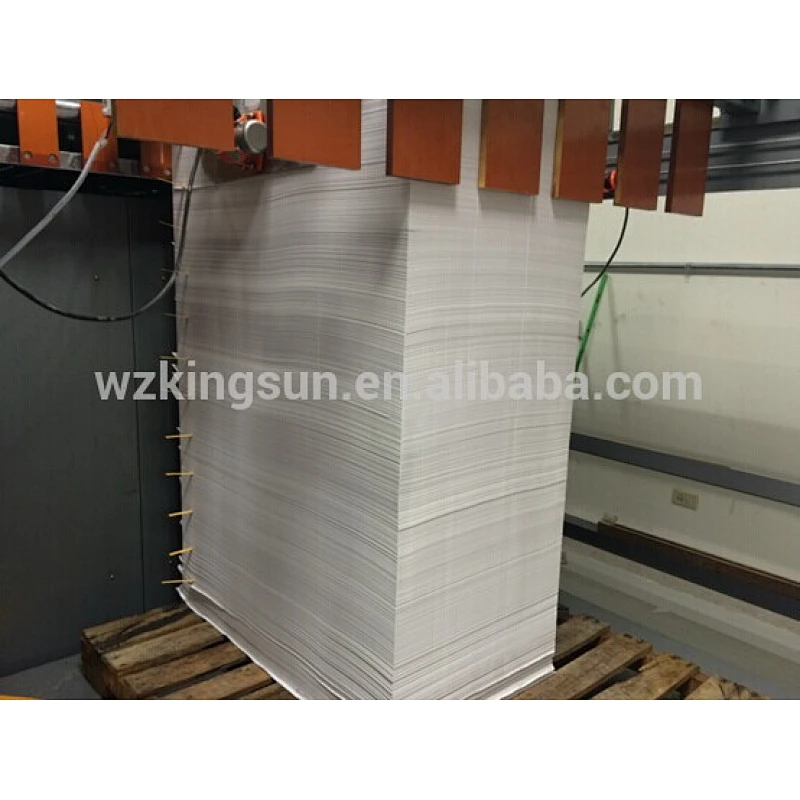

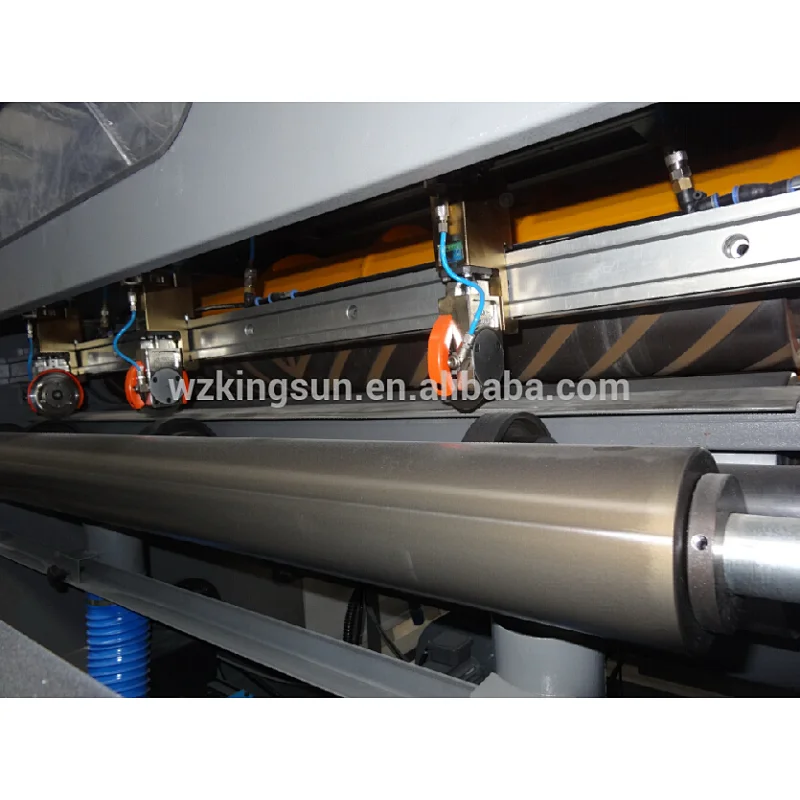

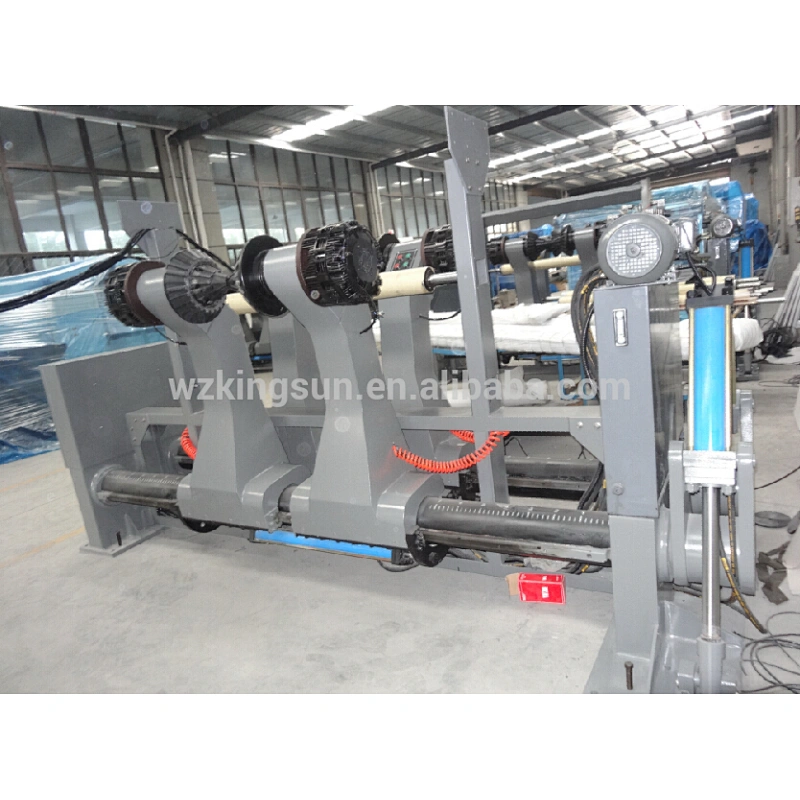

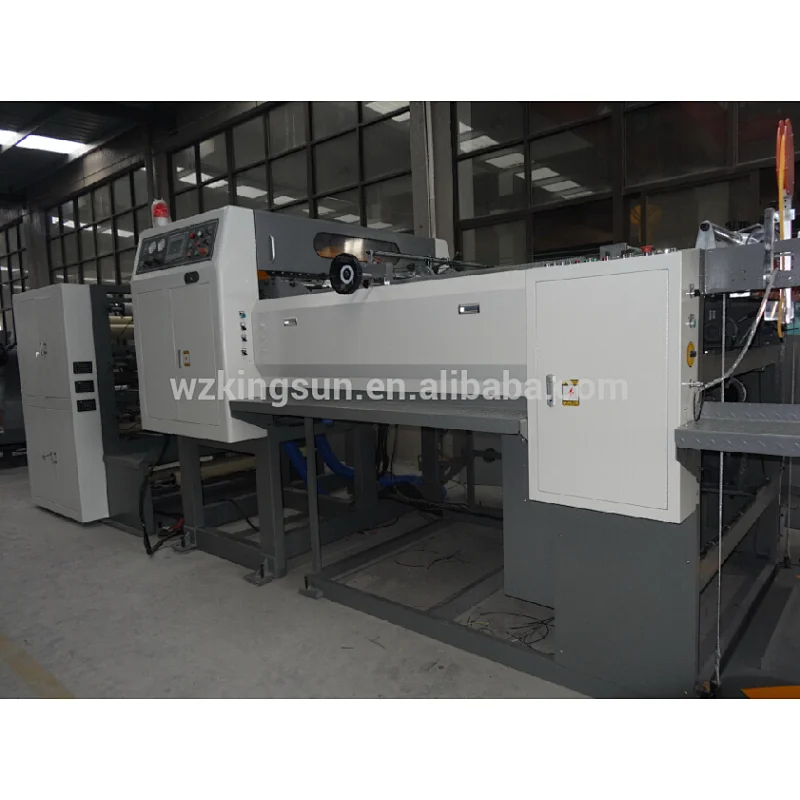

More photos:
Our Services
Our paper sheeter machines have been exported to over 20 countries:

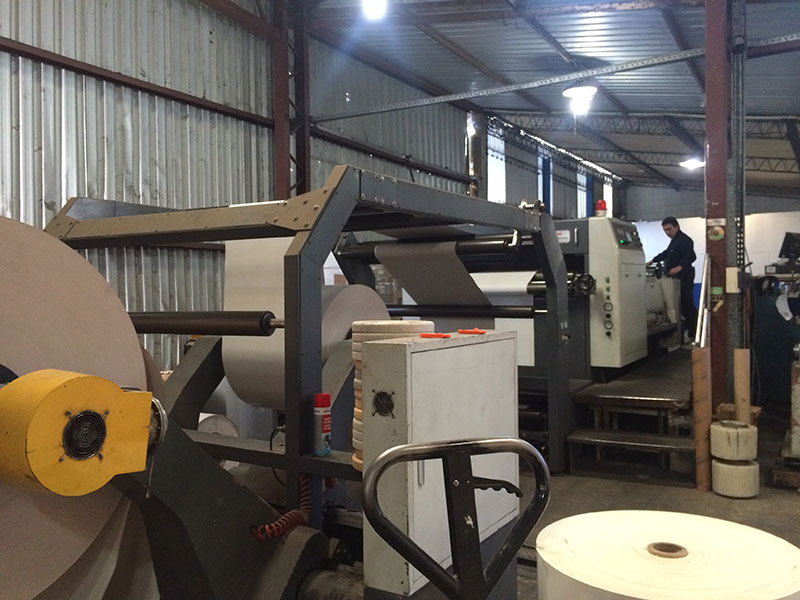

1. The 1400A paper sheeter machine has been working in Uruguay for 7 years still in very good condition
2. Paper sheeter in Mexico
