Model NO.
KS-350D
Delivery:
FOB
Quantity:

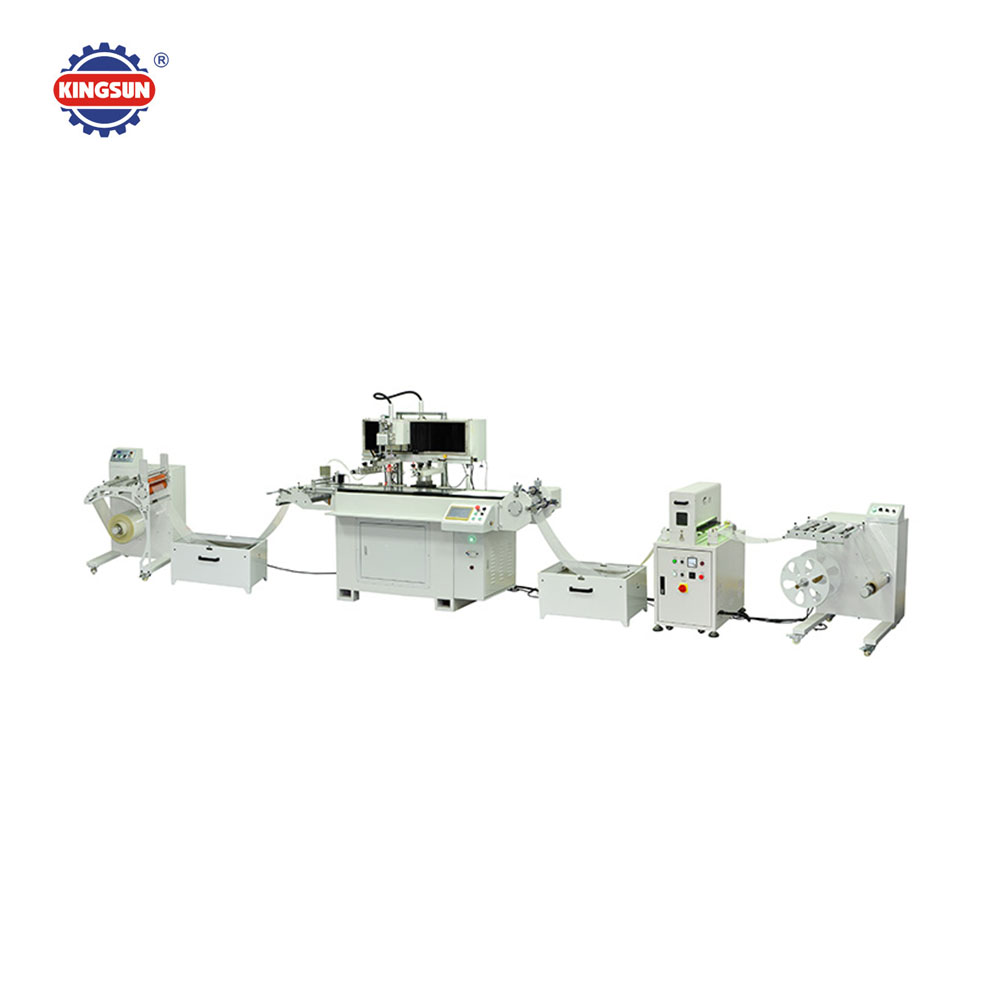

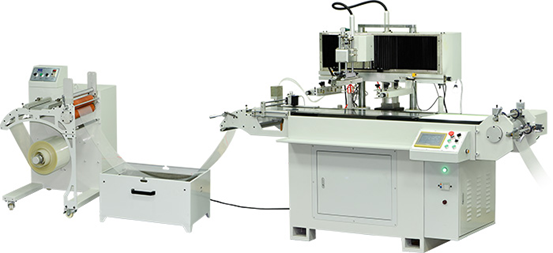

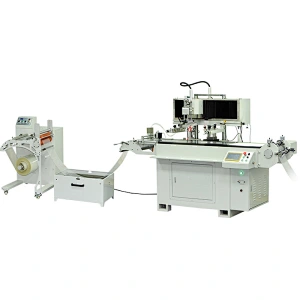

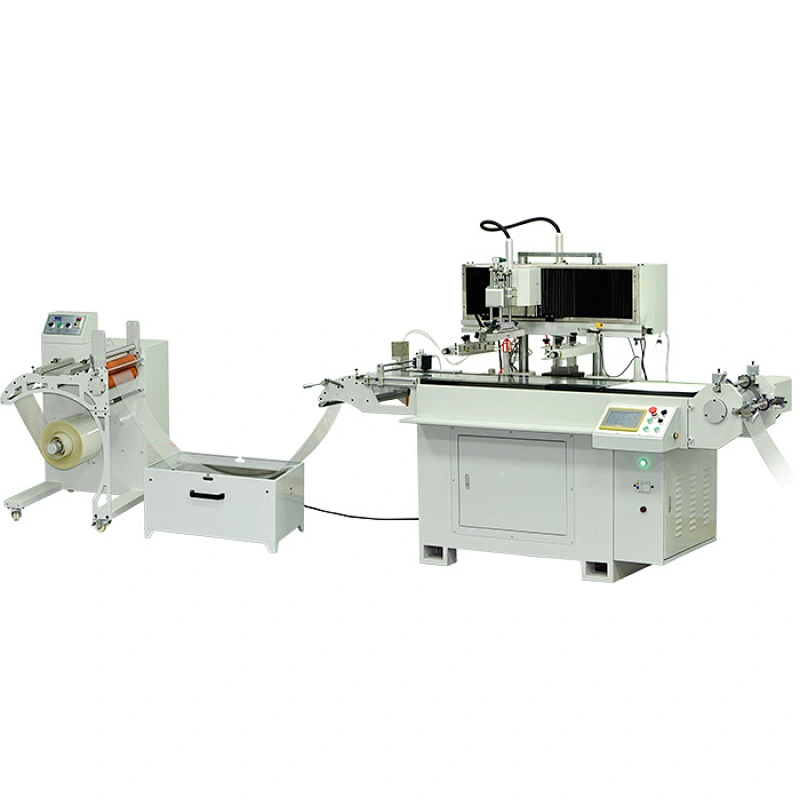

KS-350D Pneumatic Type Single-Color Screen Printing Machine


This machine is used for printing on reel material such as PVC, OPP, Nylon, hologram label, adhesive label sticker, etc. the material feeding of this machine is controlled by servomotor, the main drive part adopted the pneumatic device, and the printing position is followed and controlled by photocell. The machine has the characteristic of high accurate of color register, steady material-feeding, automatic counter and alarm, convenient adjust and compact structure, etc.

Standard configuration

No.

Name

Specification

Unit

Remark

1.1

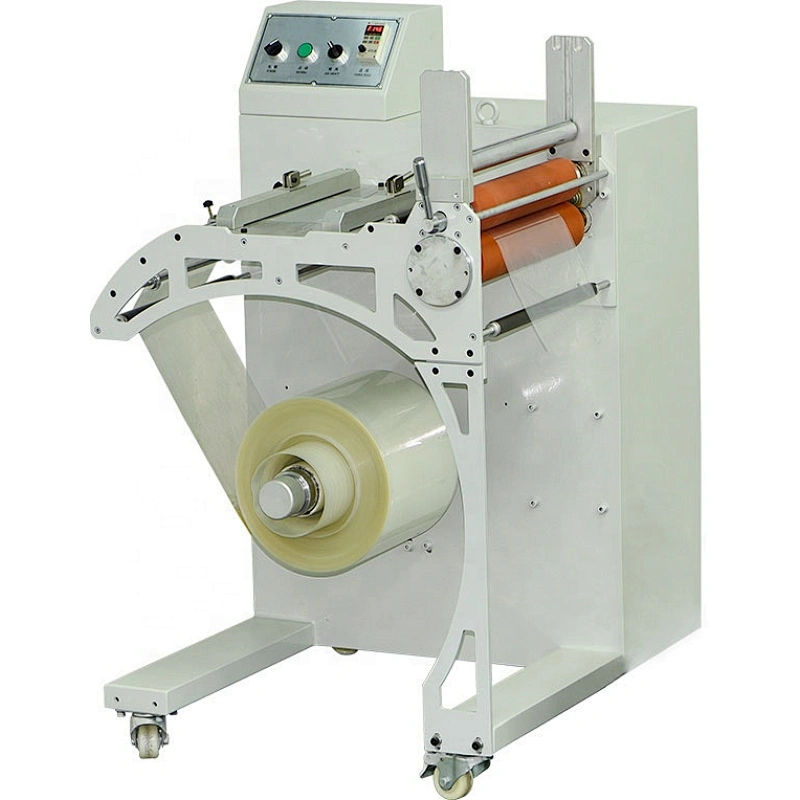

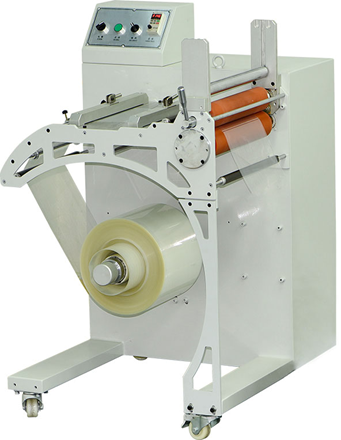

Unwinder

1

Set

1.2

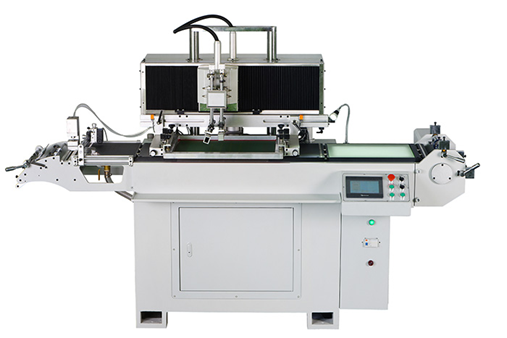

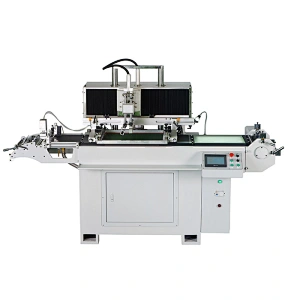

Main Machine

1

Set

1.3

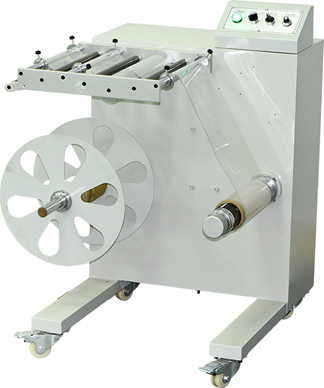

Twin Rewinder

1

Set

1.4

Drying Box

1

Set

30M

1.5

Set Screen Frame

4

Set

1.6

Scraper

3

Set

1.7

Ink-Return Blade

3

Set

1.8

Tool Box

1

Set

1.9

Operation Manual

1

Set

Specifications

No.

Name

Specification

Unit

Remark

2.1

Screen frame size

550×700

mm

Max. size

2.2

Max. print area

330×450

mm

2.3

Max. paper Width

350

mm

2.4

Max. paper Forward

450

mm

2.5

Printing Speed

0-9000

rpm

2.6

(L×W×H)(Machine Size)

L.2500×w.1100×h.1700

mm

2.7

(L×W×H)(Drying Box Size)

1865*940*2000

mm

2.8

Weight of the host

Net Weight

1200

kg

Gross Weight

1700

kg

2.9

Drying Box weight

Net Weight

600

V

Gross Weight

950

V

2.10

Power supply motor

Host power supply

220

V

Drying Box power supply

380

V

Drying Box power

10

kw
