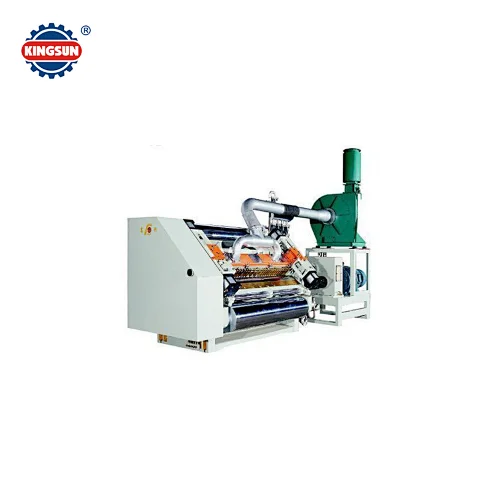

KSF-1200 Single Facer Machine For Corrugated Board Making Line
KSF-1200 Single Facer Machine For Corrugated Board Making Line

KSF-1200 Single Facer Machine For Corrugated Board Making Line

Model NO.
KSF-1200
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
100 set / Year
Country of Origin:
China port
Quantity:

KSF-1200 Single Facer Machine For Corrugated Board Making Line

1.Fingerless vacuum suction.

2.Max.machine speed:120m/min, corrugated roll diameter:280mm.

3.Made of crmo alloy steel no.48,laser induction hardening & hardchrome plating,hardness above shore 70.

4.Applicator roll, pressure roll's bearings use high temperature lubricate grease to keep running smoothly and durable.

5.Open-close of corrugated roll,pressure roll & glue applicator device are pneumatic type.

6.Glue applicating recycling to avoid glue become dry.

7.Glue width motorized dividing to match the paper width.

8.With preheater for liner & medium.

9.Independent gear box,gimbal axis,oil immersed type lubricating to reduce noise,keep running stable.

Main specifications:

(mm)
Max.paper width

(mm)
Length

(mm)
Width

(mm)
Height

(Ton)
Weight

(KW)
Power

1200

3950

1150

1450

3.5

30

1400

4150

1150

1450

4

30

1600

4350

1150

1450

4.5

30

1800

4550

1150

1450

5

30
