High Speed Plastic Film Slitting Machine
High Speed Plastic Film Slitting Machine
High Speed Plastic Film Slitting Machine
High Speed Plastic Film Slitting Machine
High Speed Plastic Film Slitting Machine
High Speed Plastic Film Slitting Machine
High Speed Plastic Film Slitting Machine
High Speed Plastic Film Slitting Machine
High Speed Plastic Film Slitting Machine
High Speed Plastic Film Slitting Machine
High Speed Plastic Film Slitting Machine
High Speed Plastic Film Slitting Machine
High Speed Plastic Film Slitting Machine

High Speed Plastic Film Slitting Machine

Model NO.
KSFQ-J1300
Minimum order quantity:
1 set
Quantity:

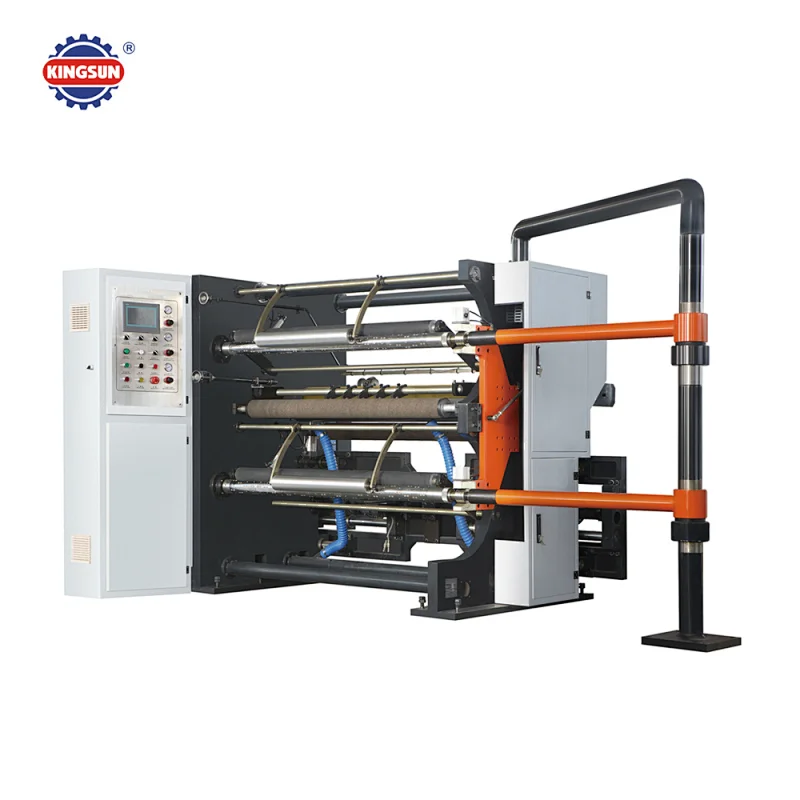

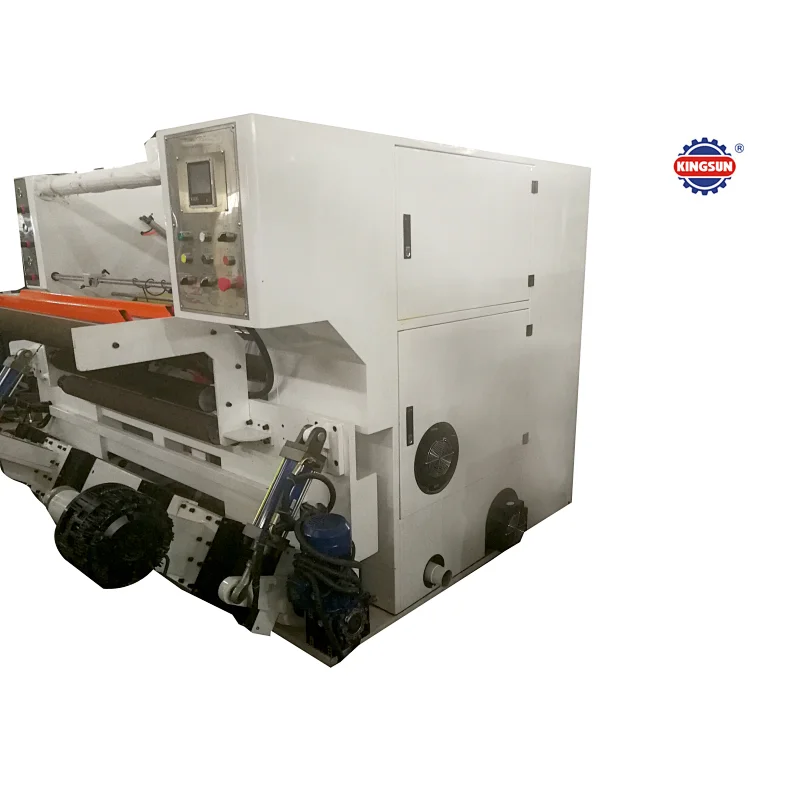

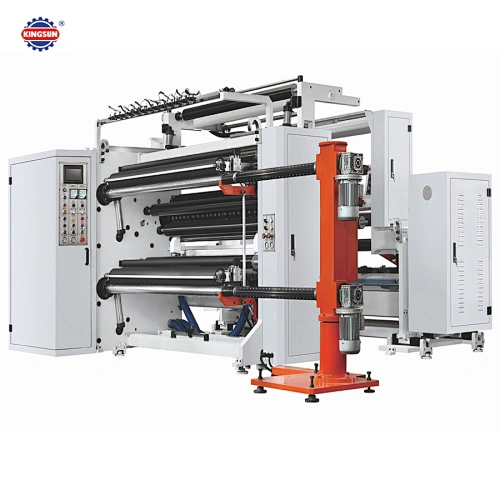

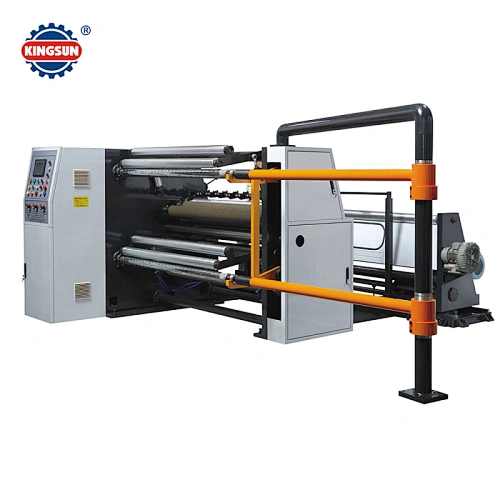

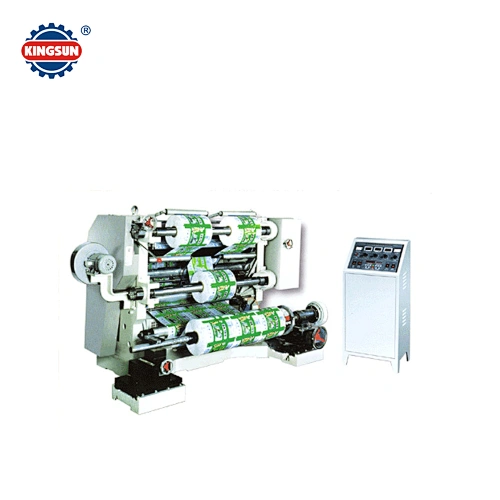

KSFQ-J1300 High Speed Plastic Film Slitting Machine

Features of plastic film slitting machine
1.Adjusting roller mechanism to adapt to different kind of film.
2.The roller after dynamic balance treatment, the machine has no vibration source so can smooth for operation.
3.The imported high precision bearings make the roller smooth and reduce the noise of the whole machine at high speed.

Main technical parameter

Max diameter of unwinding

φ800mm

Max diameter of the rewinding

φ600mm

Min slitting width

30mm

Unwinding paper core inside diameter

3″

Rewinding paper core inside diameter

3″

Max machine speed

400m/min

Machine inner body width

1540mm

Unwinding motor power

3kw

Rewinding motor power

5.5kw

Driven motor power

3kw

Total machine power

12kw

Machine dimension

2300mm(L)×4200mm(W)×2000mm(H)

Machine weight

3500kg

Suitable material

Film and laminated film 12-180um,PE and PVC 40-150um
