Plastic Film Slitting And Rewinding Machine
Plastic Film Slitting And Rewinding Machine

Plastic Film Slitting And Rewinding Machine

Model NO.
KSFQ-R
Minimum order quantity:
1 set
Quantity:

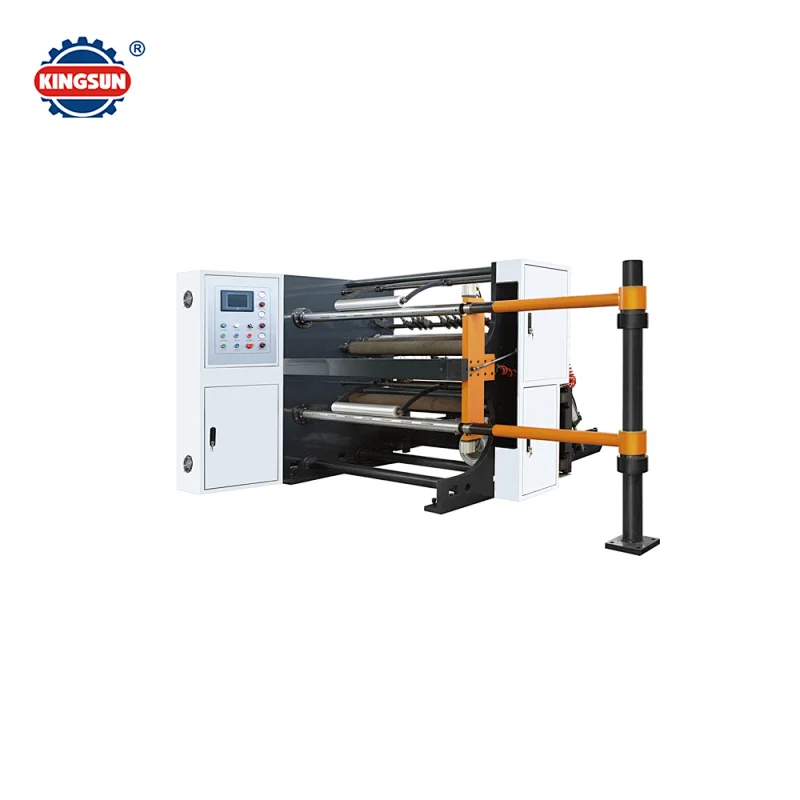

KSFQ-R Plastic Film Slitting And Rewinding Machine

This series slitting rewinding machine mainly designed for paper and plastic film slitting ,use straight knife and circle knife, which is one kind of most economic and excellent in slitting quality. It is widely use for small and middle large factory for jumbo roll paper or plastic film slitting rewinding conversion.

Main technical parameter

Max unwinding diameter

φ800mm

Max rewinding diameter

φ600mm

Slitting width

40mm-1300mm

Rewind paper core

3 inch

Max machine speed

30-300m/min

Machine wall stand inner width

1540mm

Web guide precision

≤0.5mm

Tension arrange

2~30kg

Unwind brake

5kg

Main motor

4kw

Whole machine power

6kw

Machine size (L × W × H)

2050mm×2600mm×1700mm

Machine weight

2500kg

Slitting material

Film 12-180um, PE, PET, PVC 40um-150um,stamping foil,paper.

Machine color

white (or custom’s choice)
