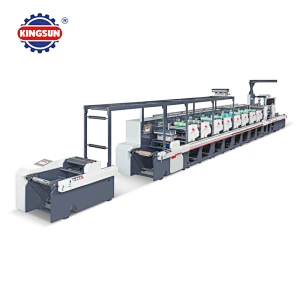

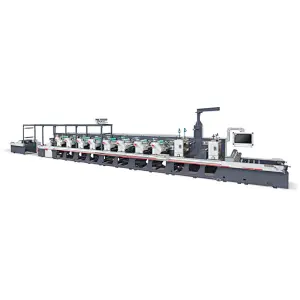

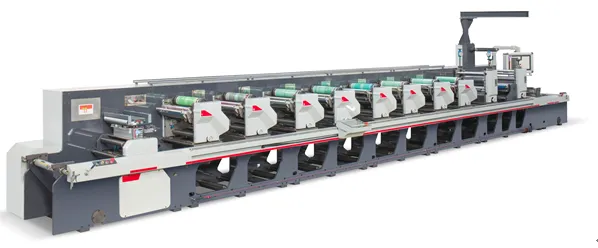

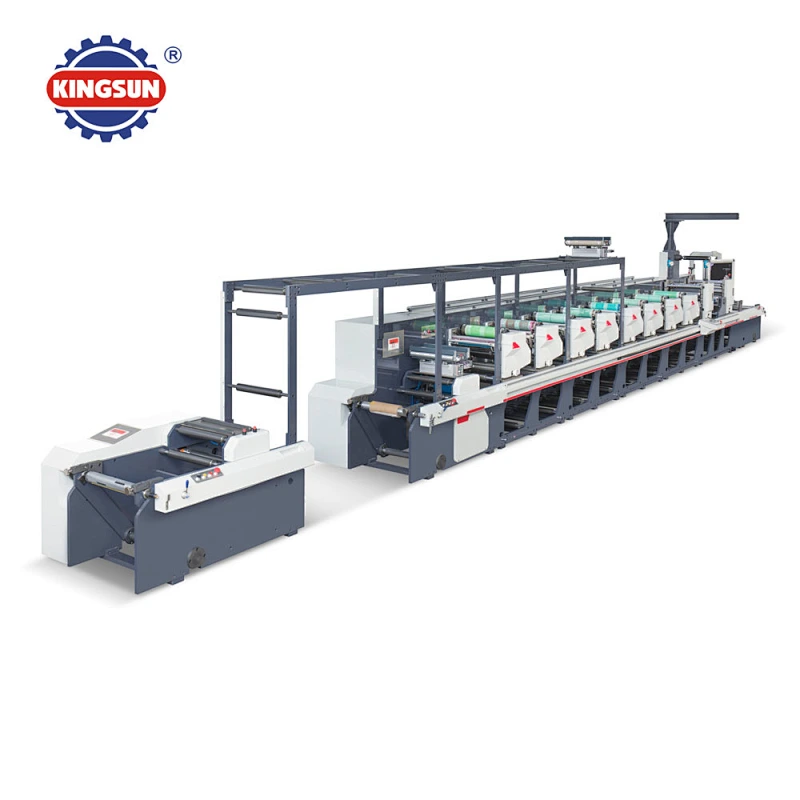

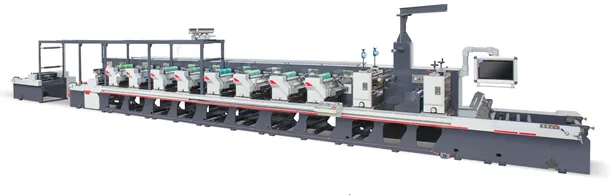

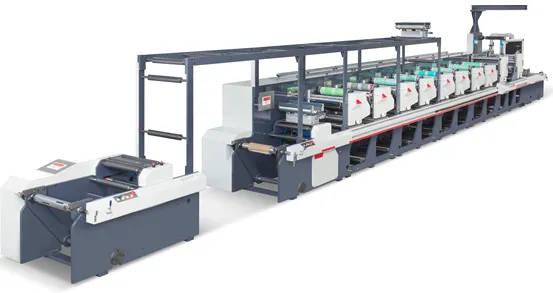

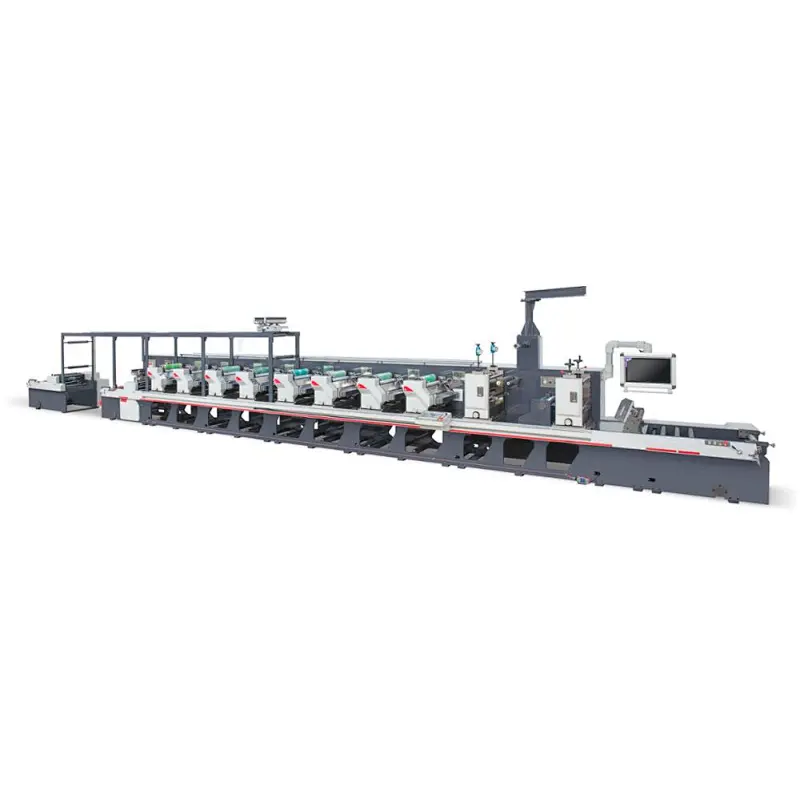

KSG-340-P8 High Speed Sleeve Sticker Label Flexo Printing Machine
KSG-340-P8 High Speed Sleeve Sticker Label Flexo Printing Machine
KSG-340-P8 High Speed Sleeve Sticker Label Flexo Printing Machine
KSG-340-P8 High Speed Sleeve Sticker Label Flexo Printing Machine
KSG-340-P8 High Speed Sleeve Sticker Label Flexo Printing Machine
KSG-340-P8 High Speed Sleeve Sticker Label Flexo Printing Machine
KSG-340-P8 High Speed Sleeve Sticker Label Flexo Printing Machine
KSG-340-P8 High Speed Sleeve Sticker Label Flexo Printing Machine
KSG-340-P8 High Speed Sleeve Sticker Label Flexo Printing Machine
KSG-340-P8 High Speed Sleeve Sticker Label Flexo Printing Machine
KSG-340-P8 High Speed Sleeve Sticker Label Flexo Printing Machine
KSG-340-P8 High Speed Sleeve Sticker Label Flexo Printing Machine
KSG-340-P8 High Speed Sleeve Sticker Label Flexo Printing Machine

KSG-340-P8 High Speed Sleeve Sticker Label Flexo Printing Machine

Model NO.
KSG-330
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
8 set / Month
Country of Origin:
Ningbo
Quantity:
  • KSG-340-P8High Speed Sleeve Sticker Label Flexo Printing Machine

Main Technical Parameter

Max. printing speed

150m/min

Max. printing width

330 mm

Max. width

340 mm

Max .unwind diameter

1050 mm

Max. exhaust diameter

900 mm

Max. repeat length

254-609.6 mm

Loading method

drum

Horizontal overprint adjustment

manual

Longitudinal overprint control

360°servo driver

Preliminary overprint

Automatic

Fast changing ink system

Quick change of ink tank

Hot air drying

Option

Cold wave process (movable)

Option

LED UV

Option

Lubrication way

Automatic

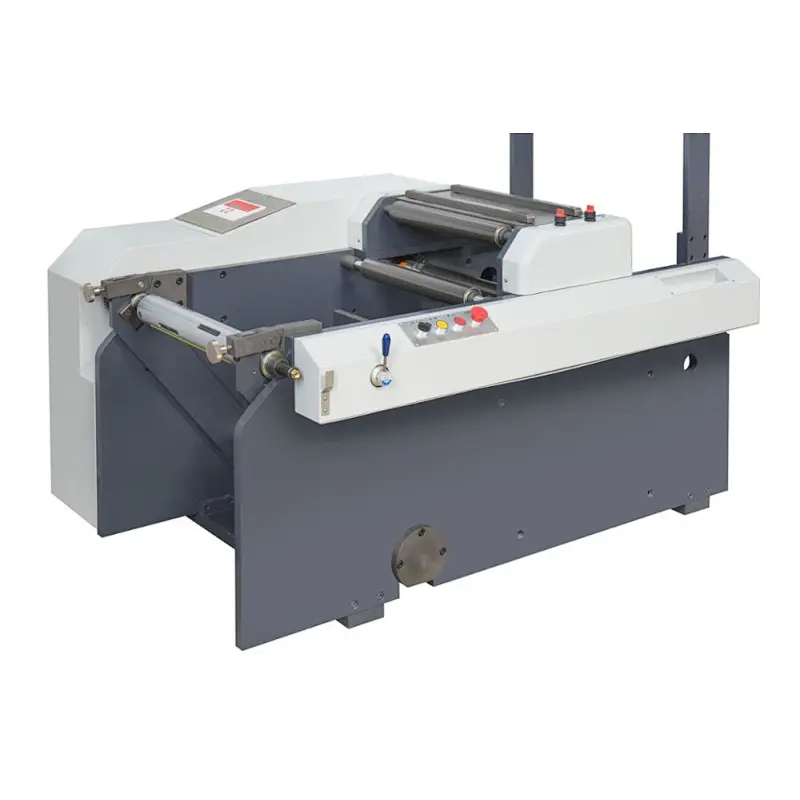

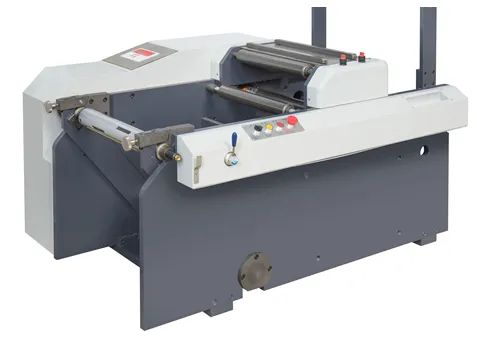

1. Unwinding part 1 set

Maximum diameter of unwinding 1050mm, pneumatic feeding method

3"air core shaft

Servo tension control system

Paper cutting platform for pneumatic clamping paper

BST automatic deviation correction device

Pneumatic components adopted by Airtac

Corona device effectively increases the amount of ink on film

Removing static electricity from material surface with electrostatic device

Dust removal from the surface of raw material with dust removal device

2. Second tension part 1 set

2 sets of traction units, servo drive

French merobel tension testing

Pneumatic clutch of high precision clip roller

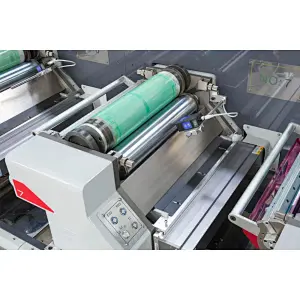

3. 8 sets of printing unit

Servo drive imprint roller

Replaceable platform

Surface hard aluminum guide roll

Reserved hot air UV, cold water roll work place

Automatic clutch pressure function of plate roller

Lateral position adjustment device

High precision imprint bottom roll

Quick replacement scraper

Automatic registration function

4. Led UV drying system

30%Using the performance of frequency conversion power supply, the same output power can save 30% more energy than ordinary lighting device

The power has two kinds of choice, manual and automatic, which can control power step by step when manual, and follow automatically with the speed of printing machine, and can fine adjust the power of each color group separately

Small size, convenient installation

Use drawer structure, convenient to wear paper, maintenance

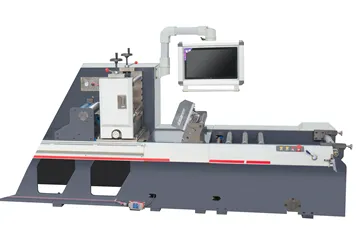

5. Rotary die cutting station

1 set die cutting station

Lateral position adjustment device

The wallboard made by the quenched and tempered steel ensures the rigidity of the unit

High hardness alloy bottom roll

Die cutting pressure regulating device

Servo fine tuning is more convenient

The upper part of the die cutting seat is equipped with the crane to replace the risk of manual handling. The upper part of the die cutting seat is equipped with the crane and the risk of replacing the manual handling is replaced by the top part of the die cutting seat.

6. Waste coil unit

Full Servo pid Self-operation, automatically increasing Power with Winding diameter

3 inch shaft, with rotary gas supply joint

900mm Maximum waste diameter 900mm

Gas expansion shaft electric control charging / deflation device

7. Rewinder device

Maximum diameter 1050mm

Pneumatic feeding mode

3inch shaft

The output torque of frequency conversion motor can be adjusted according to the winding diameter at that time to ensure the stability of winding tension

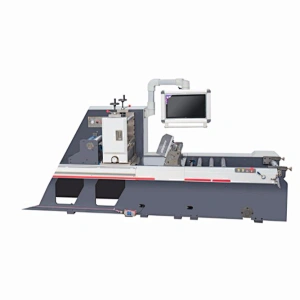

8. BST monitor

AOC 22screen

Easy to adjust focal length, magnification, imaging contrast, etc

A variety of monitoring mode selection, tracking registration, monitoring printing efficiency, etc

9.

Model:

HSG-420-P8

8 set printing unit with 1 die cutting

NO.

position

brand

1

PLC

yaskawa

2

Master touch screen

weinview

3

control switch

schneider / Shanghai yijia

4

connecting terminal

huatong

5

panel switches

schneider

7

Servo motor deceleration box

shimpo

8

Motion controller

yaskawa

9

All ordinary small motor and decelerator

Japan Panasonic

10

All pneumatic and pneumatic control components

Taiwan Yadak

11

All plain bearings

SKF/NTN

13

Unwinding tension control and actuator

France merobel

14

Rectifying device

German BST

15

tension

France merobel

16

Winding tension controller

Yaskawa
