KSQ-D High Precision Grinding Machine
KSQ-D High Precision Grinding Machine

KSQ-D High Precision Grinding Machine

Model NO.
KSQ-D
Minimum order quantity:
1 set
Quantity:

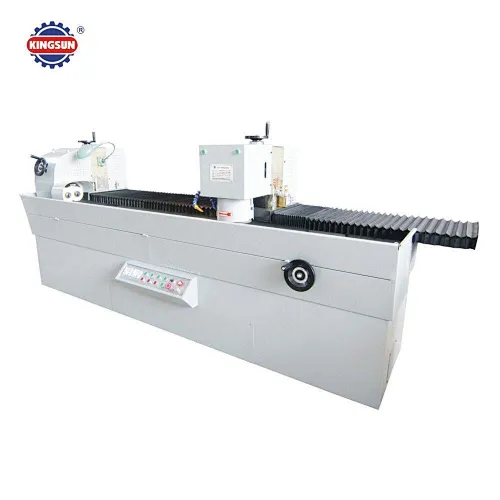

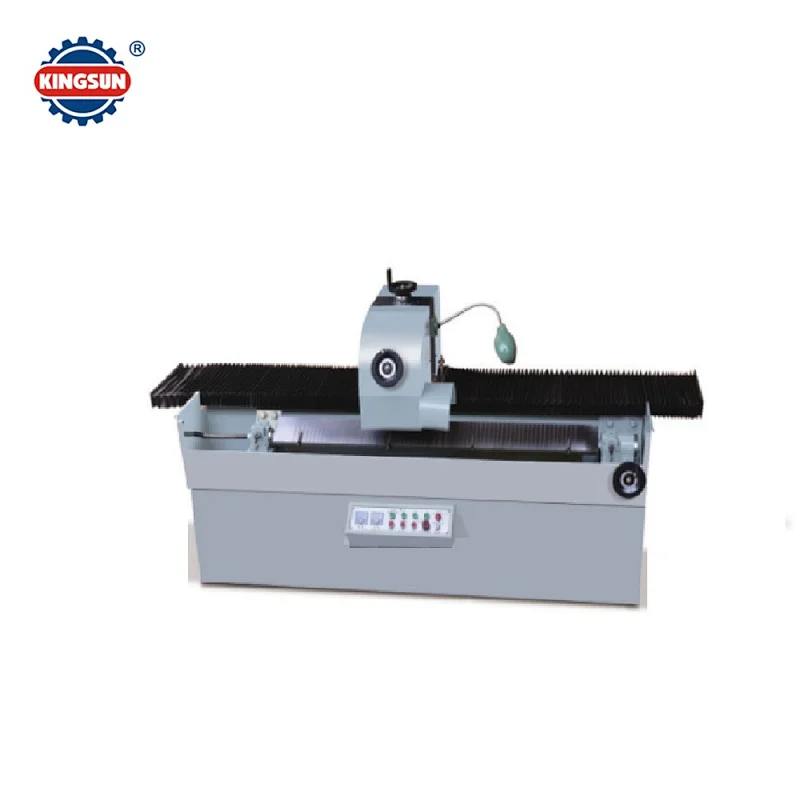

KSQ-D High Precision Grinding Machine

KSQ-D high precision grinding machine series is newly developed product,the machine tool body is monobloc casting.It has a sharpening blade with hydraulic automatic feeding mechanism.As an advanced domestic sharpening machine,it adopts hydraulic stepless speed regulation stroke.

Options: servo motor, liquid crystal display

Model

KSQ-1650D

KSQ-2200D

KSQ-1650D-I

KSQ-2200D-I

Max grinding length

1700mm

2200mm

1700mm

2200mm

Size of grinding wheel

Ø200x Ø 100Øx100

Ø200x Ø 100Øx100

Ø200x Ø 100Øx100

Ø200x Ø 100Øx100

Width of ground knife

180mm

180mm

180mm

180mm

Rotation angel of workable

0~±90°

Moving speed of grinding head

2-15M/min

Automatic feeding precisely grinding

0.0075-0.05mm

0.001-1.0mm

Dimension

2400x1100x1550mm

3000x1100x1550mm

2400x1100x1550mm

3000x1100x1550mm

weight

2.0T

2.5T

2.0T

2.5T
