KST-850 Model Double Side Adhesive Tape Application Machine
KST-850 Model Double Side Adhesive Tape Application Machine
KST-850 Model Double Side Adhesive Tape Application Machine
KST-850 Model Double Side Adhesive Tape Application Machine
KST-850 Model Double Side Adhesive Tape Application Machine
KST-850 Model Double Side Adhesive Tape Application Machine
KST-850 Model Double Side Adhesive Tape Application Machine
KST-850 Model Double Side Adhesive Tape Application Machine
KST-850 Model Double Side Adhesive Tape Application Machine

KST-850 Model Double Side Adhesive Tape Application Machine

Model NO.
KST-850
Quantity:

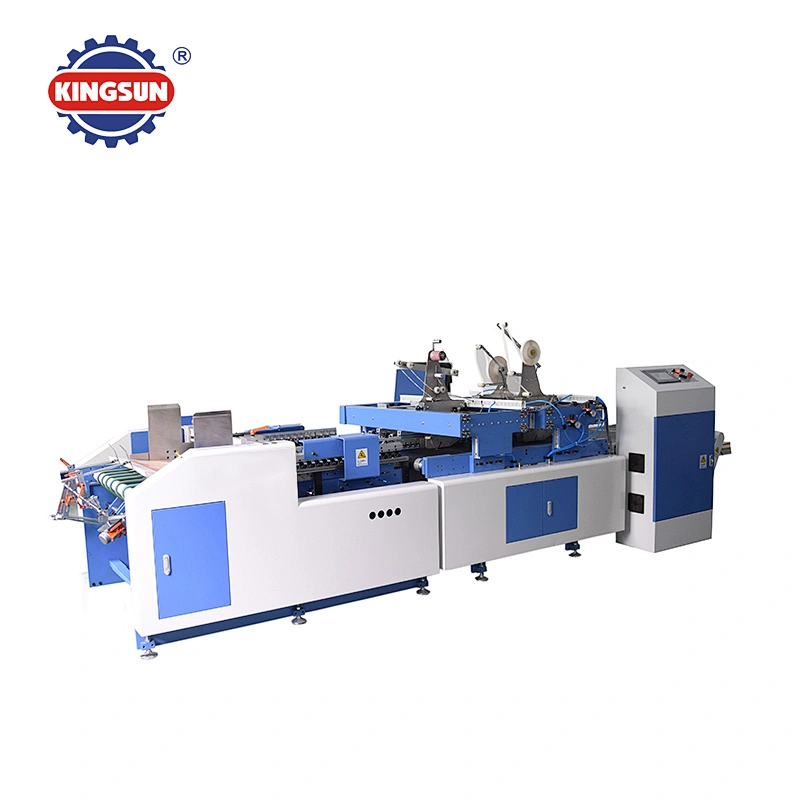

KST-850 Automatic Double Side Adhesive Tape Application Machine

This Double Side Tape Application machine is a new designed machine special for double side adhesive tape sticking, with technology from Germany. With feature of high efficient, high precise and high stability. It can set the length and sections of double side tape freely. The highest speed can reach 90m/min. This model is aimed at cardboard, corrugated board which need double side tape to stick. The designation is easy for adjustment and operation. This is your best choice for double side tape sticking.

Main technical specifications:

Material：

Over 200gsm paper board, plastic, E, B and C corrugated board.

Open blank size:

Min.140mm x 120mm

Max.850mm x 850mm

Working width:

850mm

Max speed:

90m/min

Tape roll width:

5–30mm

Precision:

+/-1.5mm

Sticking style:

Vertical sticking

Number of installable tape applicators

2pcs applicator head for standard machine

Needed air supply:

Min. 6 bar

Power required:

3.2 KW(220V,50HZ)

Paper feeding way:

Automatic feeding

Weight:

Approx. 1500KG

Machine Size(L x W x H):

5600 x 1500 x 1350mm
