Model NO.
KTC-1080
Price:
USD 3000.00-34000.00 / set
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
30 set / Month
Country of Origin:
Shanghai ,tianjing
Quantity:
  • Place of Origin:CN;ZHE
  • Weight:3.0T
  • After-sales Service Provided:No overseas service provided
  • Dimension(L*W*H):4000*2000*1500
  • Model Number:KTC-1080
  • Brand Name:kingsun
  • Warranty:1 yaer
  • Power(W):10KW
  • Condition:New
  • Product Type:Paper Napkin Machine
  • Voltage:380V/220V 3 phase
  • Certification:ce
  • Processing Type:laminating machine
  • feeder road:One or two

KTC-1080 PVC , PET automatic carton Window patching machine /Window film gluing machine

KTC-1080/1450 automatic window patching machines are special equipment for carton boxcolor box window

lamination; They are advanced models in domestic marketPerfect personalization design philosophy ensures

that the machines have the feature of high efficiencyhigh-precisionhigh stability and easy operation

These machines are available for both cardboard and corrugated paper. Adopt non-stop bottom feeder with

side lay registration, Flexible version module of glue printstable and accurate diaphragm incision and cross

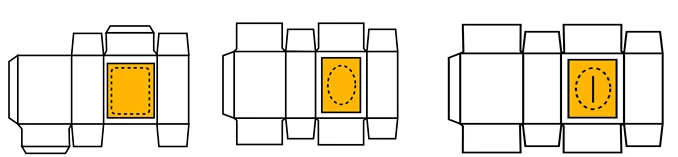

cutting cropped toachieve tissue boxes, gift boxes, toy boxes, shirt boxesmilk cartons and other window film

lamination.


ModelKTC-1080A single feederKTC-1080C double feeder
Max paper size1080*650460*650
Min paper size80*16080*160
Max window size780*600450*600
Min window size40*4040*40
Film thickness0.05-0.200.05-0.20
Cardboard(g/m2)200-1000200-1000
Corrugated(mm)less than 4.0mmless than 4.0mm
Max working speed(S/H)70007000
Total power(kw)1010
Total weight3.0T3.0T
