- Type:Rotogravure Printing Machine
- Place of Origin:CN;ZHE
- Weight:35000KGS
- After-sales Service Provided:Engineers available to service machinery overseas
- Model Number:KYJZ-850,1050,1250
- Brand Name:Kingsun
- Warranty:one year
- Color & Page:MULTICOLOR
- Condition:New
- Gross Power:350KW
- Dimensions(L*W*H):25 X 5.0 X 3.5M
- Voltage:380V, 50Hz or custom made
- Automatic Grade:Automatic
- Certification:ISO9001
- Usage:plastic film printing
- product name:rotogravure printing press
- Certificate:ISO9001
- Plate Type:Gravure

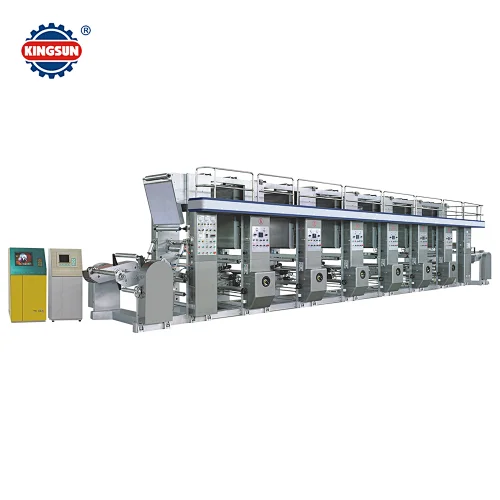

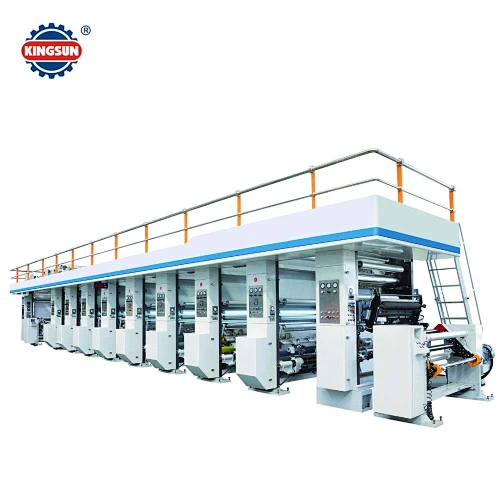

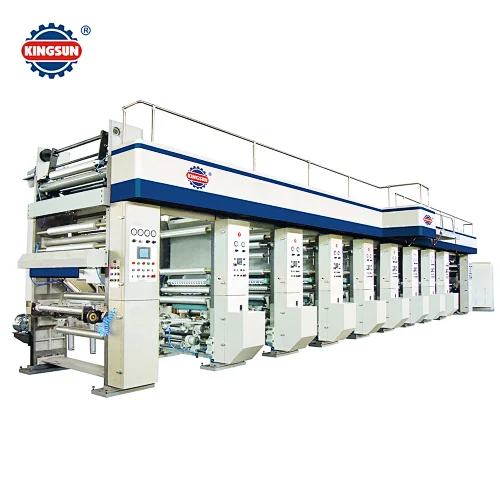

KYJZ-850 computer control high speed gravure or rotogravure printing press machines
This KYJZ series computer control high speed rotogravure printing press machinesorgravure printing machines are mainly for high grade plastic film printing such as BOPP,PET,PVC film etc. High quality and competitive price compares with top level printing press. Size: 850, 1050, 1250,1550mm etc.

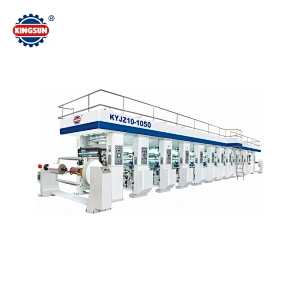

Main specification for 10 colors 1050mm width gravure printing machine:
1.For BOPP, PET,PVC film etc.
2. Printing colors: 10 colors
3. Maximum printing width: 1050mm
4. Machine Maximum speed: 220m/min
5. The maximum printing speed: 200m/min
6. Plate diameter: φ120-φ300
7. Plate width: 660mm-1150mm
8. Overprint precision:
Vertically automatic registration precision: ± 0.1mm (complete machine)
Horizontally automatic registration precision: ± 0.1mm (complete machine)
Pre-register accuracy: ± 8mm
9. Wall thickness: 75mm
10. Material maximum roll diameter: φ600mm
11. Rewind and unwind by: built-in duplex bi-directional rotation axis
12. Ink supply: circular supply
13. Ink transfer: direct ink-transfer
14. Squeegee horizontally to automatically move: ± 5mm
15. Maximum imprint pressure: 500kg / Full width
16. Material-fed tension control: Seven-motor & four-swing roller closed-loop control
17. Tension control range: 3-30kg ± 0.2kg / Full width
18. Material-cut & joint: non-stop automatically cut & joint
19. Paper core of roll material and assembling mode : ID φ76mm, OD φ92mm, inflatable shaft swelling
20. Drying type: closed unilateral dryer (drying method: electric heating)
21. Minimum air pressure: 0.6Mpa
22. Main motor power: 22KW
23. Total electric power: 355kw
24. Machine dimensions: 25000mm × 5400mm × 3500mm (L × W × H)
25. Weight: 48 tons
26. Power Supply: 380V, ± 15%, 50HZ ± 2%, 3 Line
27: There is various options for rotogravure printing press machine, please get in touch with us for more details now.
The rotogravure printing press macihnes are strictly tested and well packed before shipment:
Wenzhou Kingsun Machinery Industrial Co.,ltd is China leading professional supplier and manufacturer of printing and packaging machines & materials. We provide a wide range of high quality equipment and service for printing and packaging industries, including post-press equipment such as flatbed automatic die cutter, hot foil stamping machine, folder gluer, window patching machine, paper guillotine, thermal laminator, flute laminator, slitter rewinder, paper sheeter, automatic case maker and label making machine such as flexo printing press, label die cutting machine, and flexible packaging equipment such as rotogravure printing press machine or printing equipment, dry laminator machine, plastic bag making equipment, packing machine and other paper converting machinery etc. Our factories have 10-20 years of manufacturing experience, Kingsun company focus on R&D, quality control and after sale service, so we have the ability to provide high quality, reasonable priced products. Since so many years our products have been well accepted by customers from more than 65 countries.
Kingsun Company also boasts its 12 more years of experience, we deliver goods worldwide, our teams are all university graduated and constantly with professional training with energetic and positive attitude
Kingsun Company has 15 more manufacturing factory bases, each factory focus on only one or a few kind of specific printing and packaging machines production, as a result, we have the ability to meet different needs from different buyers, this way can take advantage of our machinery group and each of factory can play its own marketing or manufacturing strengths.
Our team has accumulated huge experience for this industries, we also have established a specialized after-sales service team and R&D team, so that we can create more value for our buyers.
Looking forward to work with you to create a more successful business together!
