Double-Shaft Semi-automatic Aluminum Foil Rewinding Machine
Double-Shaft Semi-automatic Aluminum Foil Rewinding Machine

Double-Shaft Semi-automatic Aluminum Foil Rewinding Machine

Model NO.
KZ-500L-2
Minimum order quantity:
1 set
Quantity:

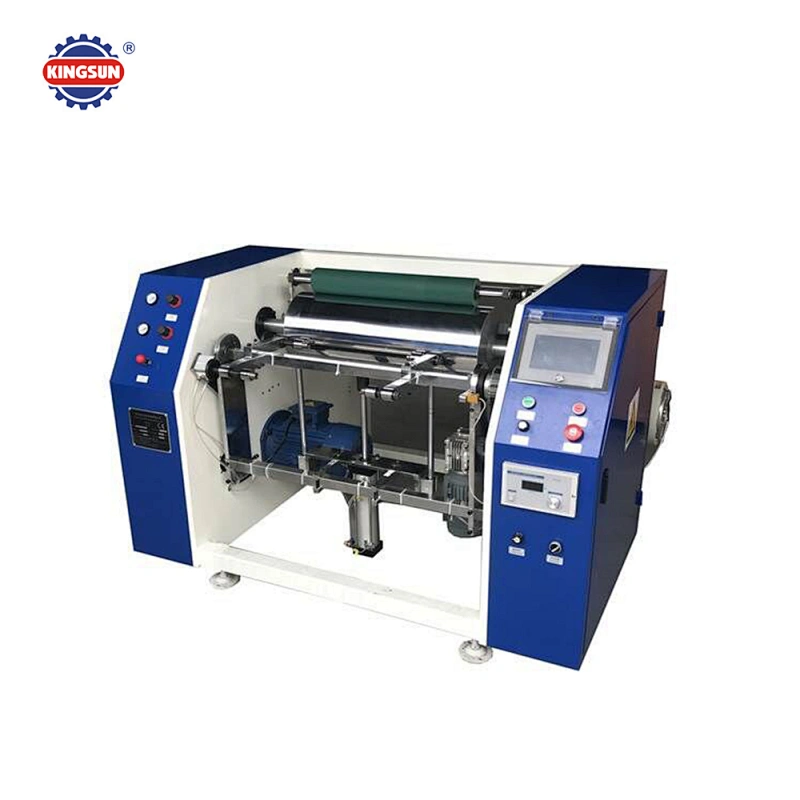

KZ-500L-2 Double-Shaft Semi-automatic Aluminum Foil Rewinding Machine

Feature
The aluminum foil rewinding machine is used to rewind the aluminum foil for different length.
1. High speed running with inverter speed regulator
2. PLC program control and touch screen operation
3. Low power consumption and only need one operator

Main technical parameter

Width of material

100-500mm

Thickness of material

8-50 micro

Rewinding speed

0-300m/min

Max diameter of jumbo roll

600mm

Rewinded length

0-500m/roll

ID core for jumbo roll

3inch

ID core for baby roll

According to request(minimal 30mm)

Power of main motor

2.2kw

Installation dimension

1520 x 1250 x 1100mm

Weight

680kg
